Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Life: |
30,000h |
| Power Source: |
AC |
| Electric Current Type: |
AC |
| Emitting Color: |
Full Range |
| Usage: |
Room |
| Base Material: |
Aluminum |
| Input Voltage: |
AC90V-265V |
| Diffuser: |
None |
| Certification: |
CE, RoHS |
Product Description

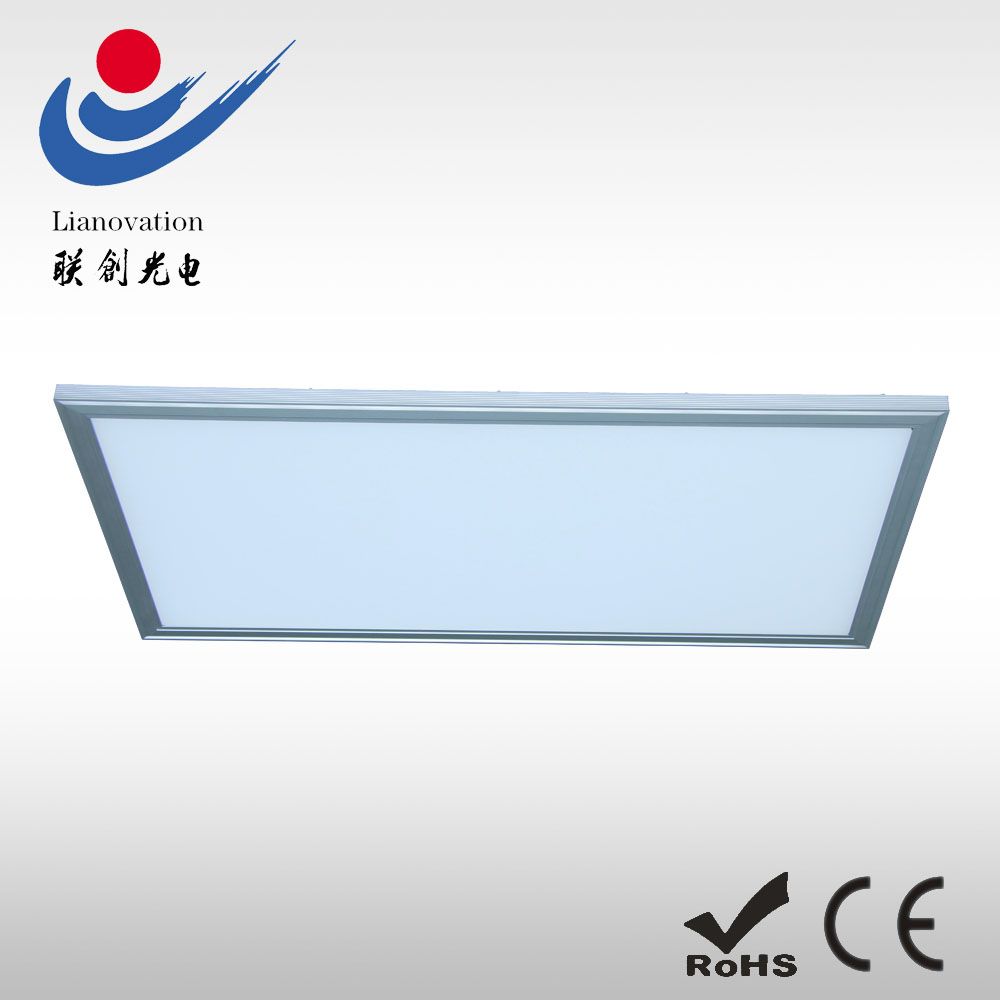

Product name: Dimmable LED ceiling light
1. Size available: 300X300cm, 600X600cm, 300X600cm, 300X1200cm
2. Power: 10-70W
3. Color Temperature: 2800-7500k
4. Color Rendering Index(Ra): 70-80
5. Input Voltage: AC85-135V, AC185-265V, AC86-265V
6. Installation: Hoisting, Recessed
7. LED Driver: Constant current
8. CE, RoHS certificated
|
Model No. |
LCPL-0303-20W |
LCPL-0603-20W |
LCPL-0606-40W |
LCPL-1203-40W |
|
Power consumption |
20W |
20W |
40W |
40W |
|
Color Temperature |
2700K-7000K(optional) |
Input Voltage/
Work Frequency |
AC90V~265V/50~60HZ |
|
Luminous Efficiency of LED |
≥ 120lm/W |
|
Luminous Flux |
≥ 2000lm |
≥ 1800lm |
≥ 4000lm |
≥ 3600lm |
|
Luminous Efficiency of Lamp |
≥ 90lm/W |
|
Color Rendering Index |
≥ 70 |
|
Power Factor |
≥ 0.9 |
|
Protection Rating |
IP40 |
|
Operating Life |
≥ 50000h |
|
Material |
Aluminum alloy + (Optical) Acrylic |
|
Dimension |
L300mm*W300mm*H12.5mm |
L600mm*W300mm*H12.5mm |
L600mm*W600mm*H12.5mm |
L1200mm*W300mm*H12.5mm |
