Dimming Module LED Street Light Dlc with IP66 (SP-1016)

Name: Dimming Module LED Street Light Dlc with IP66 (SP-1016)
Brand: china-manufacturer-directory.com
SKU: 701280465
Availability: InStock
Rating: 4.7 (118 reviews)

Supplier:	Zhejiang Singbee Lighting Technology Co., Ltd.
Price:	US $ 1-300/Piece
Min Order:	20/Piece
Quantity::
Trade Terms:	FOB,EXW,CIF

Product Specifications

Prod Model:	SP-1016
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Sp-1016
Brand:	Singbee
Light Efficiency:	105 Lm/W
Shape:	Newest Design
Life:	50,000h
Power Source:	AC
Electric Current Type:	AC
Emitting Color:	White
Usage:	Street~@~Garden
Base Material:	Aluminum
Certification:	UL
IP Rating:	IP66

Product Description

LED street light, Type: SP-1016, Belongs to Singbee 360 series
Newest design
Module type
High light efficiency more than 93%

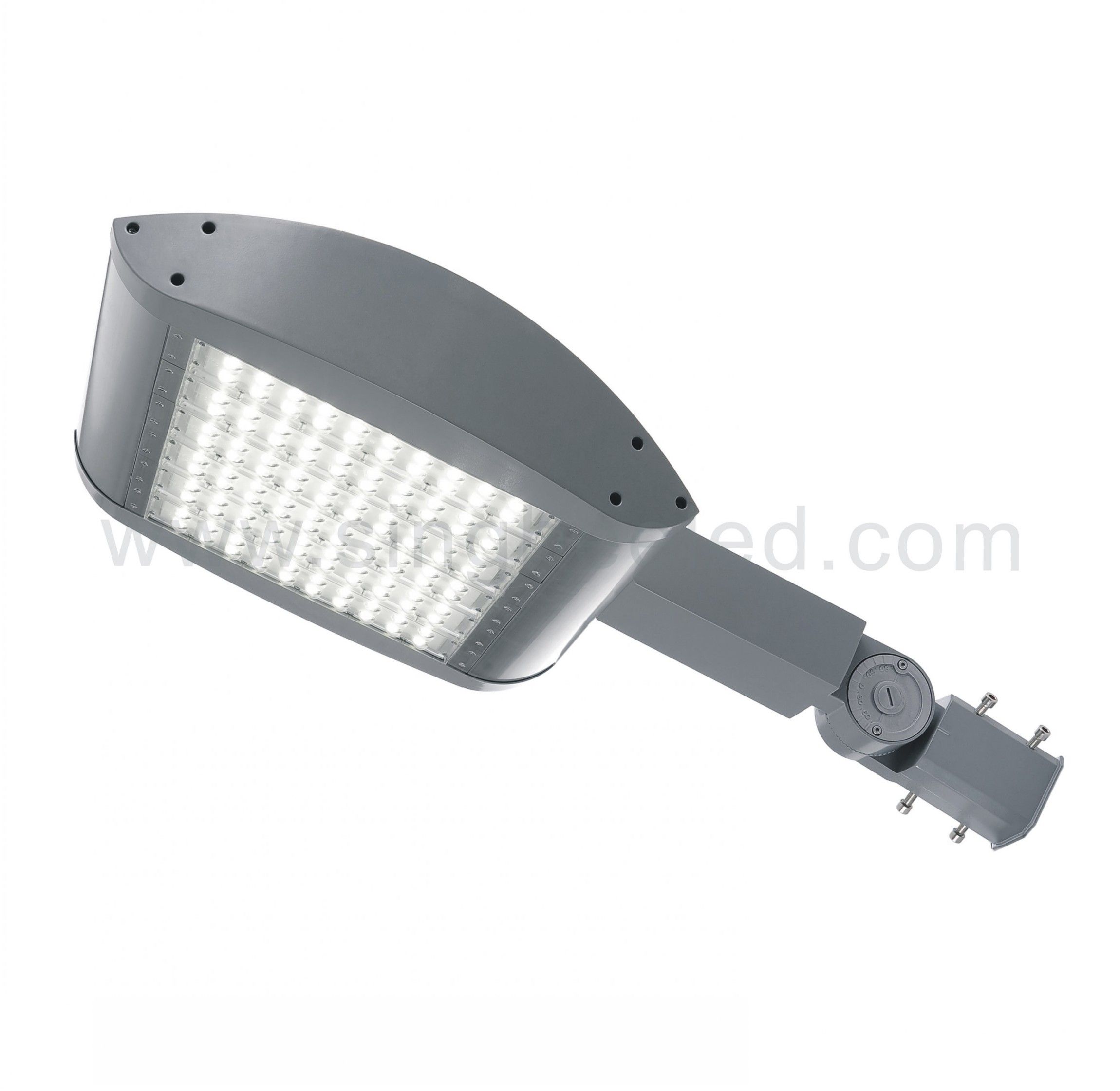

LED Street Light SP-1016

** Material of die-cast aluminum housing, Special Aluminum alloy modules

** SP-1016 has 2 to 7 LED module bars, providing a range of 7 different wattage.

** The high heat conductive alloy modular plays a key role on the 360 design. Instead of one big heat sink to dissipate heat for all LED, cutting to several heat sink bars increase surface area further speeding up heat dissipation. The modules also has special design airflow system uses natural ventilation. Constantly providing of fresh breeze of cooling. Applying all heat dissipation.

** The 360 all uses the Meanwell Driver HLG series. Together with Meanwell, Singbee Lighting now offers an extended warranty for the 360. Extended in time and service.

Power(W)	40W	60W	80W	100W	120W	150W	200W
Modular Number	2 Bar	3 Bar	4 Bar	5 Bar	6 Bar	7 Bar	7 Bar
Number of LED	40	60	80	100	120	140	140
Luminous Flux	4200 lm	6300 lm	8400 lm	10500 lm	12600 lm	15750 lm	21000 lm
IP	66	66	66	66	66	66	66
Net Weight	9 Kg	10 Kg	11 Kg	12 Kg	13 Kg	14 Kg	14.5 Kg
X Dimension	272 mm	343 mm	414 mm	485 mm	556 mm	627 mm	627 mm
Rated Voltage	90~264VAC/90~305VAC
Color Temperature	6000K / 4500K / 3500K
Ra	75

EXHIBITION INFORMATION
2014 Germany Fair
Time: 30th, March--4th, April, 2014. Booth number: Hall 4.2 H04

2014 HongKong Fair
Time: 6th, April--9th, April, 2014. Booth number: Hall 1 E-E36

Singbee Lighting started trading in the early 2006; We are a branch company from the national well known co-operation of Singbee Group, with 16 years of successful history, earning the title of the 'Chinese Swarovski'. Singbee Lighting is looking starting with local projects such as the first LED four car drive lane street in China to now installing lights in hospital in Chile.

We have taken full advantages of the flexibility within our low power LED and have development a series of different product, starting from our street and outdoor spot light to indoor commercial, ceiling and spot light. All of which are design to provide a better solution for your.

Singbee Lighting has been honored to obtain such a high recognition in the world, not only been visited by many Chinese government officials, but also invited by Mexican energy department. We also very proud to have light installed all over the world, including but not only Denmark, Sweden, Ireland, Spain, Italy, Singapore, Columbia, Mexico and Chile.
