Product Specifications
| Prod Model: |
DIN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

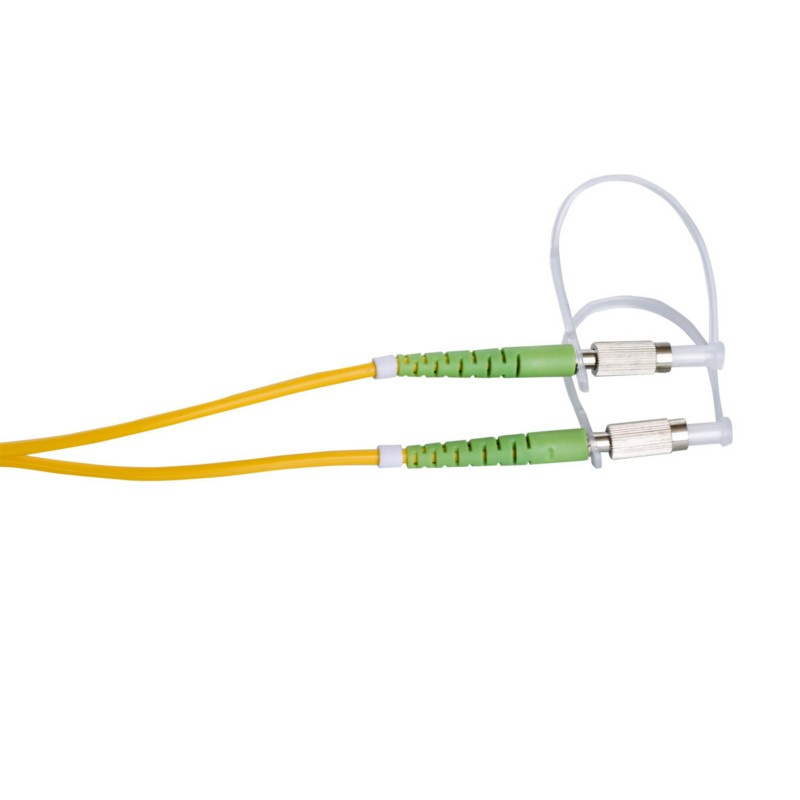

DIN fiber optic connector
Low insertion loss and return loss
Free-floating ceramic ferrule
UL-rated plastic housing and boot
Boots in a variety of colors
High precision alignment
Order guide.
Fiber cores: Simplex, duplex
Fiber diameter(mm): Φ 0.9, &2.0, Φ 3.0
Fiber length; User-defined
Fiber type; Singlemode(G. 652, G655), multimode(50/125)/(62.5/125)
Interface type PC, UPC, APC
Connector type SC, FC, LC, ST, MU, MTRJ, DIN, D4, E2000, MPO. ESCN, SMA,
Every patch cord has passed strict test, has been tested one by one before leave factory. We can promise the quality. If you really need, we will give the best price to you.
Features:
Low insertion loss and back reflection loss
Good exchangeability
Good durability
High temperature stability
|
Item |
Single mode |
Multi mode |
|
Insertion loss |
PC less 0.3dB, APC less 0.2dB |
PC less0.3dB |
|
Return loss |
PCmore 45dB, APC more 60dB |
PC more 25dB |
|
Insert-pull test |
(1000 times ) less 0.3dB |
|
Operating temperature |
-40~ +75 |
|
Ceramic ferrule spec |
125.5um concentricity deviations: less 1um |
127um concentricity deviations: less3um |
|
Suitable fiber |
PC/APC(9/125um) |
PC(50/125um, 62.5/125um |
Ningbo Pulian Communication Technology Co.Ltd is a high-tech enterprise under Huier Group which specializing in producing Optical Communication Products for many years.
Our products include as follows.
Fiber optic patch cords
Specialty patch cords
Fiber optic pigtails
Fiber optic connector
Adapters
Attenuators
Splitter/coupler and WDM
Fiber optic patch Panel
Optical Distribution Frames&enclosures
Fiber Optic Closures
Accessories
Equipment and tools
Other than the products listed above, we also manufacture to customers' specifications and requests even with customer supplied raw materials and parts.We supply ODM and OEM services.
Huier Group do foreign trade business for many years in different area, we have own professionally sales team and services teams, our goal is give the best price, high quality products and good services to clients and also solve the all different problem for the clients.
Welcome to contact us for more information and let 's make business easy.
