Disc NdFeB Magnet

Name: Disc NdFeB Magnet
Brand: china-manufacturer-directory.com
SKU: 724096225
Availability: InStock
Rating: 4.6 (90 reviews)

Supplier:	Sinomake Industry Co., Ltd.
Price:	Negotiable/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Coating:	Nickel
Application:	Motor Magnet
Shape:	Cylinder

Product Description

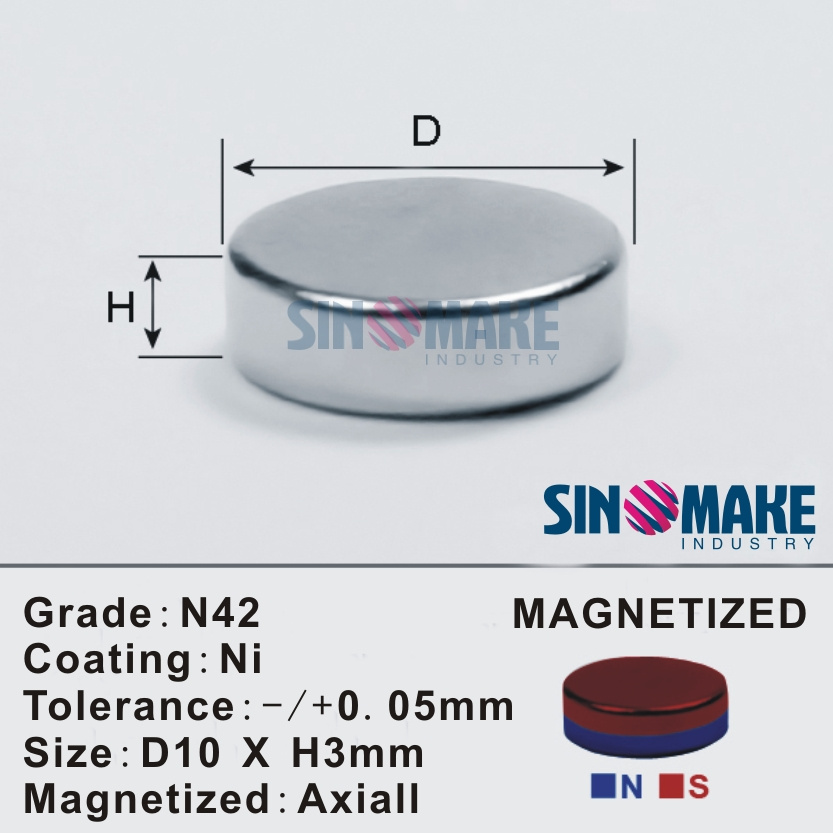

Disc Neodymium Magnet Grade: N42 Coating: Ni Tolerance:？± 0.05mm Size: D10xH3mm Magnetized: Axiall Notice:Different sizes can be customized to customer requirements. 1, How rare earth magnets are made:？ Mining => Melting => Milling => Aligning&Pressing => Sintering => Inspecting => Machining => Plating/Coating => Inspecting => Magnetization => Packing&Shipping 2, Shape and Size Block: Length x？Width x？Thickness Disc /？Cylinder: Diamter x？Thickness Ring: External Diamter x？Internal Diameter x？Thickness Segment:？According to the Drawing Irregular: According to the Drawing 3,Coating: 4,Magnetization Direction: ？ 5,Package: Air package,sea package,standard package, shielding package to pass through the security at the airport. Of cause,all of our package are customized. ？ 6,Application: Sintered NdFeB Magnets are widely used in arears of computer science,meters,sensors, motors, rotors, wind turbines,wind generators, speakers and so on

NO.	Resicual Magnetic Flux Density	Conercivity Force Br				Conercivity Force Hcb		Intrinsic Conercivity Force Hcj		Maximum Product Energy (BH)max				Working Temperature
		KGs		T		Koe	KA/m	Koe	KA/m	MGOe		KJ/m3
		Max	Min	Max	Min	Koe	KA/m	Koe	KA/m	Max	Min	Max	Min
1	N35	12.5	11.8	1.3	1.2	≥10.8	≥860	≥12	≥955	38	33	302	263	80°C
2	N38	13.0	12.3	1.3	1.2	≥10.8	≥860	≥12	≥955	41	36	326	286
3	N40	13.2	12.6	1.3	1.3	≥10.8	≥860	≥12	≥955	42	38	334	302
4	N42	13.5	13.0	1.4	1.3	≥10.8	≥860	≥12	≥955	44	40	350	318
5	N45	13.8	13.2	1.4	1.3	≥10.8	≥860	≥12	≥955	46	42	366	334
6	N48	14.3	13.7	1.4	1.4	≥10.5	≥836	≥11	≥875	49	45	390	358
7	N50	14.6	13.9	1.5	1.4	≥10.5	≥836	≥11	≥875	51	47	406	374
8	N52	14.8	14.2	1.5	1.4	≥10.5	≥836	≥11	≥875	53	49	422	390
9	N35M	12.5	11.8	1.3	1.2	≥11.0	≥876	≥14	≥1114	38	33	302	263	100°C
10	N38M	13.0	12.3	1.3	1.2	≥11.5	≥916	≥14	≥1114	41	36	326	287
11	N40M	13.2	12.6	1.3	1.3	≥11.8	≥936	≥14	≥1114	43	38	342	302
12	N42M	13.5	13.0	1.4	1.3	≥12.0	≥955	≥14	≥1114	45	40	358	318
13	N45M	13.8	13.2	1.4	1.3	≥12.2	≥971	≥14	≥1114	47	42	374	334
14	N48M	14.3	13.7	1.4	1.4	≥12.5	≥955	≥14	≥1114	50	45	398	358
15	N50M	14.6	13.9	1.5	1.4	≥12.5	≥955	≥13	≥1035	52	47	414	374
16	N35H	12.5	11.8	1.3	1.2	≥11.0	≥876	≥17	≥1353	38	33	302	263	120°C
17	N38H	13.0	12.3	1.3	1.2	≥11.5	≥916	≥17	≥1353	41	36	326	287
18	N40H	13.2	12.6	1.3	1.3	≥11.8	≥939	≥16	≥1273	43	38	342	302
19	N44H	13.7	13.0	1.4	1.3	≥12.1	≥963	≥16	≥1273	46	41	366	326
20	N46H	14.0	13.4	1.4	1.3	≥12.5	≥995	≥16	≥1273	48	43	382	342
21	N48H	14.2	13.6	1.4	1.4	≥12.7	≥1011	≥16	≥1273	50	45	398	358
22	N35SH(T)	12.5	11.8	1.3	1.2	≥11.1	≥883	≥20	≥1592	38	33	302	263	150°C
23	N38SH(T)	13.0	12.3	1.3	1.2	≥11.6	≥923	≥20	≥1592	41	36	326	287
24	N40SH(T)	13.2	12.6	1.3	1.3	≥11.8	≥939	≥20	≥1592	43	38	342	302
25	N42SH(T)	13.4	12.8	1.3	1.3	≥12.0	≥955	≥19	≥1512	44	39	350	310
26	N45SH(T)	13.8	13.2	1.4	1.3	≥12.4	≥987	≥19	≥1512	47	42	374	334
27	N33UH(T)	12.2	11.4	1.2	1.1	≥10.8	≥859	≥25	≥1990	36	31	287	247	180°C
28	N35UH(T)	12.5	11.8	1.3	1.2	≥11.2	≥981	≥25	≥1990	38	33	302	263
29	N38UH(T)	12.8	12.2	1.3	1.2	≥11.6	≥923	≥25	≥1990	41	36	326	287
30	N40UH(T)	13.2	12.6	1.3	1.3	≥12.0	≥955	≥25	≥1990	42	38	334	302
31	N30EH(T)	11.7	10.9	1.2	1.1	≥10.3	≥820	≥30	≥2388	33	28	263	223	200°C
32	N33EH(T)	12.0	11.4	1.2	1.1	≥10.8	≥859	≥30	≥2388	36	31	287	247
33	N35EH(T)	12.3	11.7	1.2	1.2	≥11.1	≥883	≥30	≥2388	37	33	295	263
34	N38EH(T)	12.8	12.2	1.3	1.2	≥11.6	≥923	≥30	≥2388	40	36	318	287
35	N28EHS(T)	11.3	10.5	1.1	1.1	≥10.0	≥780	≥35	≥2786	31	26	247	207
36	N30EHS(T)	11.7	10.9	1.2	1.1	≥10.3	≥820	≥35	≥2786	33	28	263	223
