Chaoyang Speed Science & Technology Co., Ltd. >> Disk Feeder

Disk Feeder

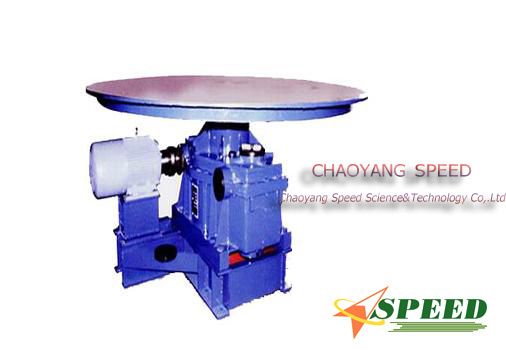

Name: Disk Feeder
Brand: China-Manufacturer-Directory.com
SKU: 713916635
Availability: InStock
Rating: 4.4 (89 reviews)

Supplier:	Chaoyang Speed Science & Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Customized
Type:	Disc Feeder
Movement Mode:	Rotary
Usage:	Cement Industry
Capacity(',t/h):	Customerized
Motor Power(',kw):	0.55-22

Product Description

Disk feeder

Equipment

Type

Specification

Drawing No.

Weight(t)

Capacity(t/h)

Measurement
(mm)

Main technical performance

Driving part

Remark

Motor

Reducer

Type

Speed ratio

Disk feeder

DKM60

φ 600

5324-1

0.46(AC)
0.6(DC)

0.043~0.244

870× 1148× 1468

The biggest material size 25mm
The highest rotary speed 0.5r/min

(I)YCJ132B347.5r/minor
(II)Z2-31(D2)

0.55
0.8

ZQ250-III-IZ

53
31.5

3 kinds of layout methods of driving devices(1\2\3)

Disk feeder

DKM80

φ 800

5311-1

0.56(AC)
0.67(DC)

0.15~0.96

1085× 1253× 1568

The biggest material size 30mm
The highest rotary speed 1r/min

(I)YCJ132B247.5r/minor
(II)Z2-31(D2)

0.55
0.8

ZQ250-VI-IZ

53
15.75

3 kinds of layout methods of driving devices(1\2\3)

Disk feeder

DKM100

φ 1000

5315-1

0.89(AC)
0.95(DC)

0.345~2.22

1350× 1475× 1902

The biggest material size 40mm
The highest rotary speed 1r/min

(I)YCJ160B344r/minor
(II)Z2-31(D2)

1.5
1.1

ZQ250-VI-IZ

52
15.75

3 kinds of layout methods of driving devices(1\2\3)

Disk feeder

DK600

φ 600

5306-1

0.41(AC)
0.44(DC)

0.69~3.9

855× 1157× 1052

The biggest material size 25mm
The highest rotary speed 8r/min

(I)Y90L-6or
(II)Z2-31(D2)

1.1
1.1

3 kinds of layout methods of driving devices(1\2\3)

Disk feeder

DK800

φ 800

5308-1

0.5(AC)
0.56(DC)

1.18~7.56

1085× 1266× 1085

The biggest material size 30mm
The highest rotary speed 8r/min

(I)Y90L-6or
(II)Z2-31(D2)

1.1
1.1

3 kinds of layout methods of driving devices(1\2\3)

Disk feeder

DK1000

φ 1000

5312-1

0.79(AC)
0.83(DC)

2.59~16.7

1424× 1350× 1427

The biggest material size 40mm
The highest rotary speed 7.5r/min

(I)Y100L-6or
(II)Z2-41(D2)

1.5
1.5

3 kinds of layout methods of driving devices(1\2\3)

Disk feeder

DK1300

φ 1300

A9721

1.11(AC)
1.15(DC)

4.28~29.9

1991.5× 1420× 1597

The biggest material size 50mm
The highest rotary speed 6.5r/min

(I)Y132S-6or
(II)Z2-51(D2)

3
3

3 kinds of layout methods of driving devices(1\2\3)

Disk feeder

DK1600

φ 1600

A9722

2.02(AC)
2.04(DC)

7.03~48.6

2310.5× 1740× 1950

The biggest material size 60mm
The highest rotary speed 6r/min

(I)Y132M1-6or
(II)Z2-52(D2)

4
4

3 kinds of layout methods of driving devices(1\2\3)

Disk feeder

DK1800

φ 1800

A9723

2.84(AC)
2.91(DC)

9.26~60

1860× 2365× 2075

The biggest material size 70mm
The highest rotary speed 5r/min

(I)Y132M2-6or
(II)Z2-61(D2)

5.5
5.5

3 kinds of layout methods of driving devices(1\2\3)

Disk feeder

DK2000

φ 2000

A9724

3.1(AC)
3.2(DC)

13.6~88.4

2625× 2150× 2120

The biggest material size 80mm
The highest rotary speed 5r/min

(I)Y132M2-6or
(II)Z2-61(D2)

5.5
5.5

3 kinds of layout methods of driving devices(1\2\3)

Disk feeder

DK1000

φ 1000

CK10.00

094

1760.5× 1055× 1308

The biggest material size 50mm
The highest rotary speed 7.5r/min

Y112M₁-6

2.2

JZQ350-III-1Z

31.5

Disk feeder

DK1500

φ 1500

A9711.00

1.56(Round)
1.56(Square)

1567.5× 1400× 1373

The biggest material size 50mm
Rotary speed of disc 7.5r/min
Diameter of adjusting sleeve 900mm
Natural obliquity 30°
The highest rotary speed 7.10r/min

Y132M₁-6

ZL42.5-14-II

31.5

2 kinds of adjusting sleeves round and square
choose one when put the order

Disk feeder

CK2000

φ 2000

A9712.00A

2.07(Round)
2.13(Square)

100

1837.5× 1880× 1660

The biggest material size 50mm
Rotary speed of disc 7.5r/min
Diameter of adjusting sleeve 1270mm
Nature obliquity 30°

Y160M-6

7.5

I II I II I II I II

ZL500-14-I

31.5

2 kinds of adjusting sleeves round and square
choose one when put the order

Disk feeder

FB1000

φ 1000

751.00

1.2

1931× 1008× 880

The biggest material size 50mm
Rotary speed of disc 7.7r/min

Y132S-6

ZQ400-50- Z

51.71

this drawing is right driving, can supply left driving

Disk feeder

FB1500

φ 1500

A9731

3.1

2785× 1500× 922

The biggest material size 50mm
Rotary speed of disc 6.3r/min

Y160M-6

7.5

ZS75-3-

this drawing is right driving, can supply left driving

Disk feeder

FB2000

φ 2000

A9733

5.2

3348× 2005× 1122

The biggest material size 50mm
Rotary speed of disc 4.8r/min
Moisture 15%
Specific gravity≤ 2.25t/m 3

Y160L-6

ZS82.5-6-

86.92

2 kinds of assembly method, Iis left driving\II is right driving
Liner plate of this disc is manganese liner plate. Can supply diabase liner plate

Disk feeder

FB2500

φ 2500

A9734

6.9

120

3817× 2500× 1122

The biggest material size 50mm
Rotary speed of disc 4.6r/min
Moisture 15%
Specific gravity≤ 2.25t/m 3

Y180L-6

ZS95-6-

89.89

2 kinds of assembly method, Iis left driving\II is right driving
Liner plate of this disc is manganese liner plate. Can supply diabase liner plate

Disk feeder

FB3000

φ 3000

A9735

14.56(AC)
13.57(DC)

75~225

The biggest material size 50mm
Rotary speed of disc 3.2r/min(AC)
1.3~3.9r/min(DC)
Moisture 15%
Specific gravity≤ 2.25t/m 3

(I)Y200l2-6or
(II)Z2-92

22
22

ZS125-9-1

12.5

2 kinds of assembly method, Iis left driving\II is right driving
Liner plate of this disc is manganese liner plate. Can supply diabase liner plate
DC for this machine and can supply AC

Disk feeder

DB600

φ 600

5307-1

0.46(AC)
0.49(DC)

0.69~3.9

1040× 855× 1052

The biggest material size 25mm
The highest rotary speed 8r/min

(I)Y90L-6or
(II)Z2-32(D2)

1.1
1.1

3 kinds of layout methods of driving devices(1\2\3)

Disk feeder

DB800

φ 800

5309-1

0.55(AC)
0.6(DC)

1.18~7.65

1085× 1266× 1085

The biggest material size 30mm
The highest rotary speed 8r/min

(I)Y90L-6or
(II)Z2-32(D2)

1.1
1.1

3 kinds of layout methods of driving devices(1\2\3)

Disk feeder

DB1000

φ 1000

5313-1

0.87(AC)
0.91(DC)

2.59~16.7

1350× 1424× 1427

The biggest material size 40mm
The highest rotary speed 7.5r/min

(I)Y100L-6
(II)Z₂-41(D₂)

1.5
1.5

3 kinds of layout methods of driving devices(1\2\3)

Disk feeder

DB1300

φ 1300

A9741.00

1.24(AC)
1.28(DC)

4.28~27.9

1991.5× 1420× 1670

The biggest material size 50mm
The highest rotary speed 6.5r/min

(I)Y132S-6
(II)Z₂-51(D₂)

3
3

3 kinds of layout methods of driving devices(1\2\3)

Disk feeder

DB1600

φ 1600

A9742.00

1.68(AC)
1.75(DC)

7.03~48.9

2310.5× 1760× 1950

The biggest material size 60mm
The highest rotary speed 6r/min

(I)Y132M₁ -6
(II)Z₂-52(D₂)

4
4

3 kinds of layout methods of driving devices(1\2\3)

Disk feeder

DBS1000

φ 1000

5314-1

0.96(AC)
0.1(DC)

2.59~16.7

1600× 1424× 1427

The biggest material size 40mm
The highest rotary speed 7.5r/min
Double feeders

(I)Y100L-6or
(II)Z2-41(D2)

1.5
1.5

Disk feeder

SBS1600

φ 1600

A9747

2.31(AC)
2.37(DC)

7.03~47.6

2490× 1900× 1913

The biggest material size 60mm
The highest rotary speed 6r/min
Double feeders

(I)Y132M1-6or
(II)Z2-52(D2)

4
4

Disk feeder

GM60

φ 600

GM60-1

0.58

1090× 1346× 1120

The biggest material size 50mm
Rotary speed of disc 7.5r/min
Allowable moisture 12%

Y100L-6

1.5

Disk feeder

GM85

φ 850

GM85-1

0.68

use GM85-202 barrel cover 20t/h; use GM85-302 barrel cover 30t/h

1260× 1440× 1166

The biggest material size 50mm
Rotary speed of disc 12.2r/min
Allowable moisture12%

Y11M-6

2.2

Chaoyang Speed Science and Technology Co., Ltd. ("Speed" for Short) is located by Daling River in Chaoyang City, with convenient traffic conditions and attractive landscape. Speed integrates the products development, technical consultation, equipment manufacture and installation, as well as products sales.

If you want to get the price, please send us the detailed materials information, such as the hardness of raw materials, feeding size, you required output size, capacity and other special requirement. Our engineer will choose the optimum type and our salesman will send you the reasonable price. Thank you.

Chaoyang Speed Science & Technology Co., Ltd. ("Speed" for Short) is located by Daling River in Chaoyang City, with convenient traffic conditions and attractive landscape. Speed integrates the products development, technical consultation, equipment manufacture and installation, as well as products sales. Speed has strong technical strength. The main technical staffs are medium and senior engineers holding solid theoretical basis and rich experience in the fields of cement, metallurgical and mining machineries, who have laid the foundation for the development of Speed.

Speed specializes in the business of cement equipments, building materials, as well as metallurgical and mining equipments.

The production base of Chaoyang Speed Science and Technology Co., Ltd is Chaoyang Heavy Machinery Manufacture plant which is located in Chaoyang City, Liaoning Province which is the large-sized key enterprise in National Building Material Machinery Industry. The registered capital of our company is RMB 40 Million. There are total eight subsidiary companys with independent legal person that is Machining Plant, Metallic Structure Company, Large-sized Casting Company, Large-sized Gear Company, Electric Control Company, IMP&EXP Company, Equipment Sales Company. All the subsidiary companys take Chaoyang Heavy Machinery Manufacture plant as core combinated with production design, machining, producing, assembly, supervision and service after sale. Our company is a large-sized comprehensive equipments producing company which mainly produce cement and metallurgy equipments and our company is one of the largest cement equipments producing companys in the East-North of China. The total capital of our company is RMB 0.85 Billion and there are total 1863 employees. The area of our company is 800 acres.

The main equipment of our company is Dia. 8m Vertical Lathe, Dia. 10m gear hobbing machine, 8m Gantry milling machine, 200mm floor-type boring and milling machine, 3200mm blending machine, 150t crane and 40t electric furnace that is controlled by national improved CUP automatically.

The main production of our company is rotary kiln, ball mill, stacker-reclaimer, dryer, grate cooler, vertical mill, roller press, crusher, pre-heater, packing machine, high efficiency separator, electric dust collector, medium-speed coal mill, mixer, nodulizer and etc. The production capacity of our company is 30, 000 tons of equipments and structure parts and 20, 000 tons of casting parts.

Our company has a completed management system and our productions have been selled to 27 provinces all around China. Our company has import&export right ourselves and the productions have been exported to many other countries such as Brazil, Angola, Russia, Vietnam, Mongolia and etc. Our company build a Technology Research Center in 2006 with strong independent researching capacity. Now our company can produce the completed set of cement equipments for 5000t/d class.
