Dissolved Oxygen Sensor (ppm level)
Product Specifications
| Prod Model: |
DOG-209F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measuring Range: |
0-20mg/L |
| Polarization Voltage: |
0.7V |
| Measured Water Temperature: |
0-60 Centigrade |
| Output: |
Analog Sensor |
| Usage: |
Liquid Level Sensor, Thermal Sensor |
| Theory: |
Polarography Type Sensor |
| Conductivity Type: |
Current Type Sensor |
Product Description

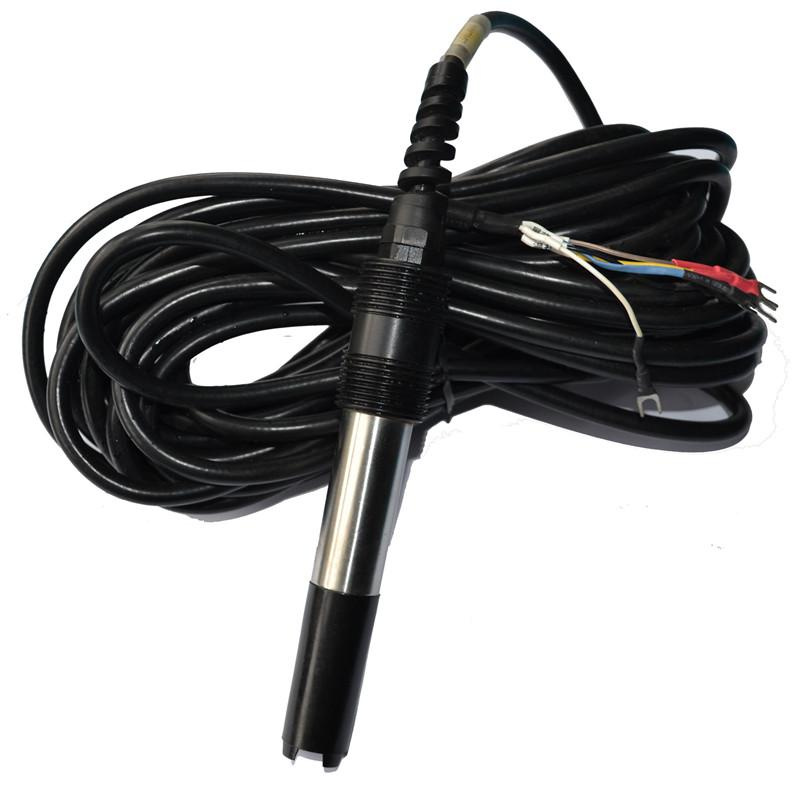

DOG-209F Industrial Dissolved Oxygen Electrode
Features
DOG-209F Dissolved Oxygen Sensor has high stability and reliability,
which can be used in the harsh environment; it demands for less maintenance;
it is suitable for continuous measurement of the dissolved oxygen in the fields
of urban sewage treatment, industrial wastewater treatment, aquaculture,
environmental monitoring, and so on.
Technical Indexes
1. Measuring range: 0-20mg/L
2. Measuring principle: Current sensor (Polarographic electrode)
3. Permeable membrane thickness: 50 um
4. Electrode shell material: U PVC or 31 6L stainless steel
5. Temperature compensation resistor: Ptl00, Ptl000, 22K, 2.252K and so on.
6. Sensor life: >2 years
7. Cable length: 5m
8. Detection lower limit: 0.01 mg/L (20ºC)
9. Measurement upper limit: 40mg/L
10. Response time: 3min (90%, 20ºC)
11. Polarization time: 60min
12. Minimum flow rate: 2.5cm/s
13. Drift: <2%/month
14. Measurement error: <± 0.1mg/I
15. Output current: 50~80nA/0.1mg/L Note: Maximum Current 3.5uA
16. Polarization voltage: 0.7V
17. Zero oxygen: <0.1 mg / L (5min)
18. Calibration intervals: >60 days
19. Measured water temperature: 0-60ºC
