1. Summary:

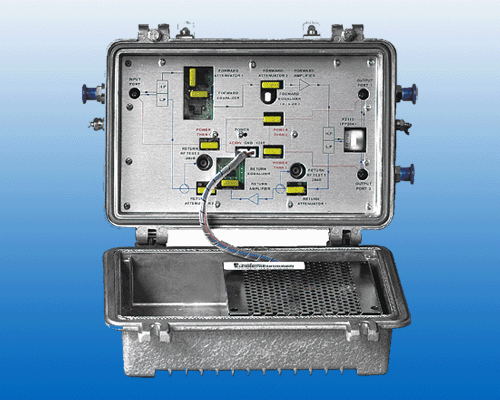

Design for bi-directional network behind optical receiver. Best effect if use at 1km network. Adopt High gain and output imported module, PHILIPS or Motorola power double module. Perfect bi-directional structure brings installation and debugging convenient.
2. Performance Characteristic:
Adopt Philips or Motorola imported high-gain module to amplify
Equalizer, attenuator have fixed and adjustable structure for selection.
Output splitter or coupler can plug change to make engineering debug more agile.
Forward and reverse fore-and-aft have independent test port, easy to debug.
Return channel adopt Philips or Motorola amplify module, good quality duplex filter, plug fixed attenuators and equalizers, makes it high C/N, easy to debug.
High reliable switch power and strict anti-thunder system fit for safe steady work in worse weather.
Suitable large or middle-size bi-directional network main trunk signal transmission, can substitute imported and famous brand machine.
3. Performance Parameters:
Item Unit PARAMETER
WB8127-K-XX WB8127-K-XX WB7127-K-XX WB8130-K-XX WB5127-K-XX WB5130-K-XX
Down Transmission
Frequency MHz 47/87~862 47/87~750 47/87~550
Rated Gain dB 27 30 27 30 29 32
Min Fill Gain dB ≥27 ≥30 ≥27 ≥30 ≥29 ≥32
Rated Input Level dBμV 72
Rated Output Level dBμV 99 102 99 102 99 102
Flatness in Band dB ± 0. 75 ± 0. 5
Noise Figure dB ≤10
Return Loss dB ≥16
C/CTB dB ≥67 ≥63 ≥70 ≥66 ≥70 ≥66
C/CSO dB ≥64 ≥62 ≥66 ≥64 ≥66 ≥64
Group Delay ns ≥10 (112. 25MHz116. 68MHz)
Signal to Hum Ratio % <2
Gain Steady dB -1. 0~+1. 0
Upgo Transmission
Frequency MHz 5~30/65
Rated Gain dB
Min Fill Gain dB
Max Output Level dBμV ≥110
Flatness in Band dB ± 0. 75
Noise Figure dB ≤12
Return Loss dB ≥16
Carrier to Second Order Inter modulation Ratio dB ≥52
Group Delay ns ≤20(57MHz/59MHz)
Signal to Hum Ratio % <2
