Kaifeng Electronic Co., Ltd. >> Distribution Cable

Distribution Cable

Name: Distribution Cable
Brand: China-Manufacturer-Directory.com
SKU: 707323615
Availability: InStock
Rating: 4.4 (76 reviews)

Supplier:	Kaifeng Electronic Co., Ltd.
Price:	US $ 0.1/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Optical Cable Mode:	single-mode or multimode
Fiber Type:	simplex or duplex or other
Fiber Diameter:	0.9mm, 2.0mm, 3.0mm
Fiber Length:	1m, 2m, 3m or other length
Application:	Communication
Type:	Single-Mode or Multi-Mode
Connection Structure:	Sc/APC Sc/Upc LC/APC LC/Upc FC/APC FC/Upc St/Upc S
Certification:	Telcordia Gr-326-Core, Ice Standard

Product Description

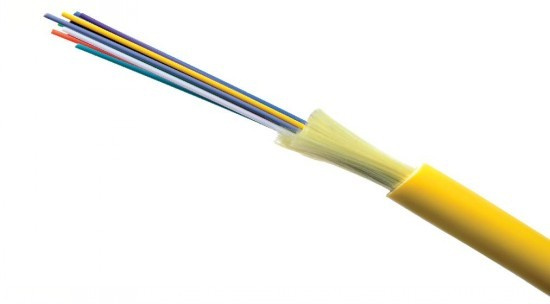

Distribution Cable

1. Product Introduction
Excellent characteristics, content with different requirement indoor, include building, lift well, FTTD. It can supply bandwidth, transmission speech, data, TV and image.

2. Application
*Optical fiber patchcord or pigtail
*Interconnect between instruments, communication equipments

3. Features
Excellent stripping performance of light buffer fiber
Cable diameter and bending radius small. It can installation freely in narrow room.

4. Applications
Optical fiber patchcord or pigtail
Interconnect between instruments, communication equipments

5. Standards
*Comply with standard YD/T 1258.2-2003, ICEA-596, GR-409, ICE60794-2-10/11 etc.
*Meet the requirements of UL approval for OFNR, OFNP.

6. Specifications
The details are in the form below

Cable code	fiber count	cable size (mm)	cable weight (Kg/km)	Tensile strength Long term/short term (N)	Crush resistance Long term/short term (N/100 mm)	Bending radius Static/Dynamic (mm)
DC-002	2	5.0± 0.2	19	200/660	300/1000	20xD/10xD
DC-004	4	5.1± 0.2	21	200/660	300/1000	20xD/10xD
DC-006	6	5.3± 0.2	23	200/660	300/1000	20xD/10xD
DC-008	8	5.9± 0.2	28	200/660	300/1000	20xD/10xD
DC-012	12	6.6± 0.2	34	200/660	300/1000	20xD/10xD
DC-016	16	7.5± 0.3	46	200/660	300/1000	20xD/10xD
DC-024	24	8.5± 0.5	57	200/660	300/1000	20xD/10xD

KAIFENG ELECTRONICS was established in May 1988, major in manufacturing all kinds of electronic connectors.Its products apply in lots of apparatus in electron field.We have the innovation, mould manufacture, plastic injection, hardware process and installation departments, apply the advanced management and advanced process equipment, Meanwhile, we accept special requirements for OEM/ODM products.

After many years development, we have the better technology and full sorts.The products with high quality are sold to more than fifty countries.KAIFENG ELECTRONICS has been the most important provider of the electronic connectors in the Asia and the Pacific area.With the market, sticking in the idea of striving for perfection, we are going to bring in the many automatic technologies and equipments including CAD/CAM and Process Center.Thus, we can develop the multiple, innovative and market-leaded products.
