Product Specifications
| Prod Model: |
LED AETHER 4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
90-240V AC 50/60Hz |
| Power Consumption: |
Max. 20W |
| DMX-Control-Channels: |
5 |
| DMX-512-Connection: |
3-Pin XLR |
| Fuse: |
250V 1.0A |
| Flash-Rate: |
0-10Hz |
| Operational Modes: |
DMX 512 Protocol, Sound Active, Auto |
| Beam Angle: |
15 Degrees |
| Item Dimension: |
938*170*100mm |
| Item Weight: |
5.0kgs |
| Application: |
Stage |
| Kind: |
Club Lighting and DJ Effects |
Product Description

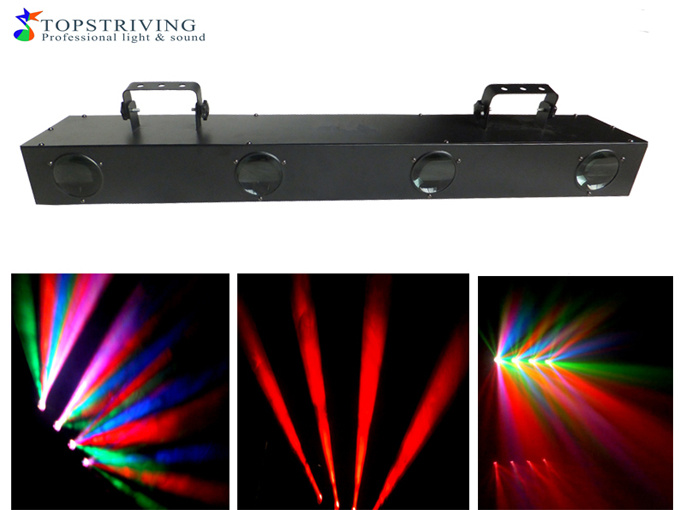

DJ Effects / LED Disco Light / Club Lighting with 256* 5mm (LED AETHER 4)
TECHNICAL SPECIFICATIONS:
Power supply: 220V AC 60Hz;
Power consumption: MAX. 20W;
DMX-control-channels: 5;
Fuse: 250V 1A;
DMX-512-connection: 3-pin XLR;
Flash-rate: 0-10Hz;
Dimensions: 938*170*100mm;
Weight: 5.0kgs.
PARAMETERS:
1. Electronic power supply 90-240V AC 50/60Hz;
2. Color strobe effect and long life operation;
3. Black housing with 256 5mm high MCD LEDs (24*4 Red, 24*4 Green, 16*4 Blue LEDs);
4. Low heat, Long Life LEDs (100, 000 hrs. );
5. Operational Modes: DMX 512 protocol, Sound Active, Auto;
6. Beam Angle: 15° Degrees;
7. Color strobe effect;
8. Uses 5 DMX Channels;
9. Stand Alone;
10. Linkable via 3-pin XLR cable;
11. ITEM DIMENSION: 938*170*100MM;
12. ITEM WEIGHT: 5.0KGS.
Procedure:
Step 1: Open the fuse holder on the rear panel with a fitting screwdriver.
Step 2: Remove the old fuse from the fuse holder.
Step 3: Install the new fuse in the fuse holder.
Step 4: Replace the fuse holder in the housing.
DMX CONTROLLING |
|
channel 1 |
strobe with increasing speed,dimmer,ON/OFF |
|
channel 2 |
BLUE color from 0-100% dimming |
|
channel 3 |
RED color from 0-100% dimming |
|
channel 4 |
GREEN color from 0-100% dimming |
|
channel 5 |
22 auto running modes |
<
|
Payment & Shipping details |
|
MODEL NO. |
LED AETHER 4 |
|
PACKING CARTON BOX |
Flight Case / Carton Package Optional |
|
TRADE |
FOB EXW |
|
PORT |
HUANGPU GUANGZHOU |
|
CERTIFICATION |
CE & ROHZ |
|
PAYMENT TERMS |
T/T, Western Union, Paypal |
|
BRAND NAME |
TOPSTRIVING |
|
|
|
Delivery time |
40'HQ within 4 weeks |
|
Production time |
3-25 days, according to quantity |
|
OEM or ODM Service |
Accept |
|
Warranty time |
Full 2 years |
