Djs GS45-775 Desktop Motherboard with 2*DDR3/1*IDE

Product Specifications

Prod Model:	GS45-775
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Chipset:	Intel GS45+Ich9
CPU Fsb:	Support 800/1066/1333 MHz
Size:	229mm X 172mm
Shipping Way:	DHL /UPS / FedEx
Shipping Time:	2-4 Working Days
Origin Of Place:	Shenzhen ,China
Products Logo:	for Your Optional
Main Chipset:	Intel
Structure:	ATX
Memory:	DDR3
Integrated Graphics:	Integrated Graphics
CPU Socket:	LGA 775

Product Description

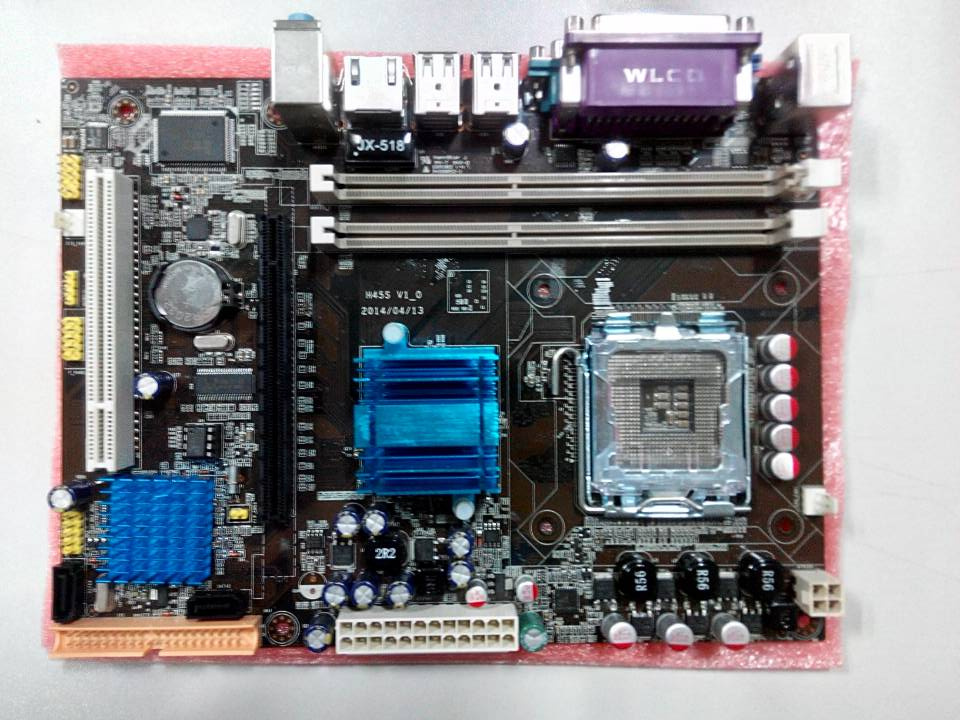

DJS GS45-775 Desktop Motherboard with 2*DDR3/1*IDE

1. Intel GS45+ICH9 Chipset, LGA 775, Supports 1333/1066/800 MHz FSB.
2. Supports 2*DDR3 1333/1066/800memory, Dual Channel, support up to 8GB by 2 DIMM slots.
3.2*SATA, 4*USB2.0, 1*VGA/IDE, 1*PCI Express x16, 1*PCI Express x1.
4. Realtek 8105E 10/100M LAN Controller

CPU
Supports 800/1066/1333 MHz HOST BUS Frequency, Supports Intel Pentium HT (Hyper Threading Technology) CPU, Supports Intel Core 2 Duo LGA 775 CPU, Supports Intel Conroe_L LGA 775 CPU, Soupports Intel Core 2 Quad LGA 775 CPU, Supports XEON 1333 MHZ Dual Core 771CPU
Chipset
Northbridge: Intel GS45 Express Chipset
Southbridge: Intel ICH9
Memory
Supports DDR3 1066/800 memory
Dual Channel architecture support up to 4GB by 2 DIMM slots
Graphics
Intel® Graphics Media Accelerator 4500MHD
1* VGA port
Audio
Realtek ALC662 6 Channel Audio Codec
LAN
Realtek 8105E 10/100M LAN Controller
Expansion Slot
1 *PCI Express X16 slot
1*PCI slots
I/O Connectors
1 *IDE connector(option)
2 *SATA 3Gb/s connector
1* front panel connector
1* front audio connector
4* USB 2.0/1.1 connector
4 *USB 2.0/1.1 port
1* COM port
1* PS/2 port
1* VGA port
1 *RJ-45 port
1 *LPT port
1 *audio jacks
Accessories
CD DRIVER, BACK PANEL, MANUAL, SATA CABLE, IDE CABLE.
BIOS
8M FLASH ROM

CPU

Supports 800/1066/1333 MHz HOST BUS Frequency,Supports Intel Pentium HT (Hyper Threading Technology) CPU,Supports Intel Core 2 Duo LGA 775 CPU,Supports Intel Conroe_L  LGA 775 CPU,Soupports Intel Core 2 Quad LGA 775 CPU,                                                   Supports XEON 1333 MHZ Dual Core 771CPU

Chipset

Northbridge: Intel GS45 Express Chipset

Southbridge: Intel ICH9

Memory

Supports DDR3 1066/800 memory

Dual Channel architecture support up to 4GB by 2 DIMM slots

Graphics

Intel® Graphics Media Accelerator 4500MHD

1* VGA port

Audio

Realtek ALC662 6 Channel Audio Codec

LAN

Realtek 8105E 10/100M LAN Controller

Expansion Slot

1 *PCI Express X16 slot

1*PCI slots

I/O Connectors

1 *IDE connector

2 *SATA 3Gb/s connector

1* front panel connector

1* front audio connector

4* USB 2.0/1.1 connector

4 *USB 2.0/1.1 port

1* COM port

1* PS/2 port

1* VGA port

1 *RJ-45 port

1 *LPT port

1 *audio jacks

Accessories

CD DRIVER, BACK PANEL,MANUAL,SATA CABLE,IDE CABLE.

BIOS

8M FLASH ROM

SIZE

229mm x 172mm

PACKING

20PCS IN ONE CARTON
