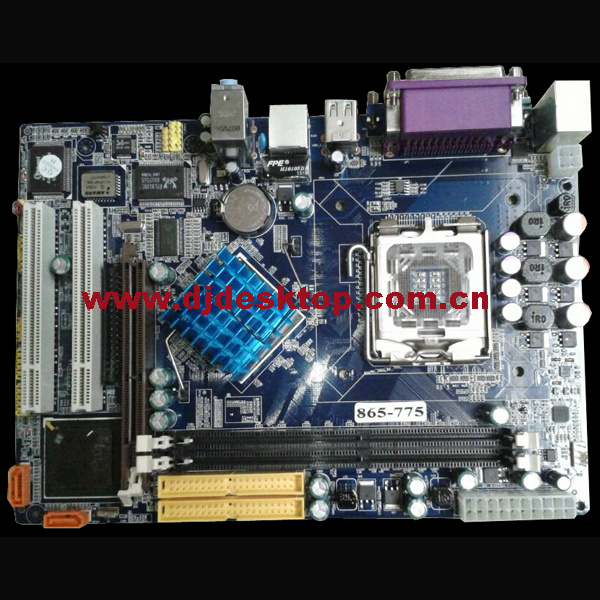

Djs Mainboard for Desktop Computer Accessories (865-775)

Product Specifications

Prod Model:	865-775
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Chipset:	Intel 865+Ich5
Fsb:	533/800 MHz
Size:	235mmx 170mm
Main Chipset:	Intel
Structure:	ATX
CPU Socket:	LGA 775
Memory:	DDR

Product Description

Intel Motherboard 865 Chipset 775 Socket Support DDR

1. Intel 865+ICH5 Chipset, LGA 775, Supports 800/533 MHz FSB.
2. Supports 2*DDR (200/266/333)
3.2*SATA, 2*USB, 1*VGA, 1*AGP 4X, 2*PCI Express x1.
4. RJ45 REALTEK RTL8100C(10/100 Mbps)


CPU
Supports Intel Pentium 4 SOCKET 775 CPU
Supports Intel Celeron D SOCKET 775 CPU
Supports Intel CeleronE CPU Socket 775 CPU
Supports Intel Pentium E CPU Socket 775 CPU
CHIPSET
Northbridge: Intel 865
Southbridge: Intel ICH5
VGA
Integrated 2D/3D Graphics Controller
MEMORY
Two 184-pin DIMM slots for DDR SDRAM memory modules
Supports 2*DDR200/DDR266/DDR333
EXPANSION SLOT
1*AGP 4X/8X slot
2*32-bit PCI slots 2.2 specification compliant
LAN CARD
1*RJ45 REALTEK RTL8100C(10/100 Mbps)
SOUND CARD
ALC655/653 (Onboard AC'97 2.3 specification compliant)
IDE
Provides two channel connecting four IDE drives
Supports Ultra ATA66/100 synchronous DMA modes
SATA
2*SATA2 ports
I/O PORTS
1*serial port
1*parallel port, supports EPP/ECP/SPP transfers
2*USB ports
1*PS/2 Keyboard port
1*PS/2 Mouse port
1*VGA PORT
1*Multiple stereo( Mic In, Line In, Line Out jack)
1*RJ45 PORT
ON BOARD PORTS
20 PIN ATX POWER PORT
4 PIN ATX 12V POWER PORT
1* CD_IN port
4*USB 2.0 PORTS
1*CPU fan connector
1*F_AUDIO PORT
Accessories
CD DRIVER, BACK PANEL, MANUAL, SATA CABLE, IDE CABLE.
BIOS
4M FLASH ROM
SIZE
235mmX 170mm
PACKING
20PCS IN ONE CARTON

CPU

Supports Intel Pentium 4  SOCKET 775 CPU

Supports Intel Celeron D  SOCKET 775 CPU

Supports Intel CeleronE CPU Socket 775 CPU

Supports Intel Pentium E CPU Socket 775 CPU

CHIPSET

Northbridge:Intel 865

Southbridge:Intel ICH5

VGA

Integrated 2D/3D Graphics Controller

MEMORY

Two 184-pin DIMM slots for DDR SDRAM memory modules

Supports 2*DDR200/DDR266/DDR333

EXPANSION SLOT

1*AGP 4X/8X slot

2*32-bit PCI slots 2.2 specification compliant

LAN CARD

1*RJ45 REALTEK RTL8100C(10/100 Mbps)

SOUND CARD

ALC655/653  (Onboard AC'97 2.3 specification compliant)

IDE

Provides two channel connecting four IDE drives

Supports Ultra ATA66/100 synchronous DMA modes

SATA

2*SATA2 ports

I/O PORTS

1*serial port

1*parallel port, supports EPP/ECP/SPP transfers

2*USB ports

1*PS/2 Keyboard port

1*PS/2 Mouse port

1*VGA PORT

1*Multiple stereo( Mic In \ Line In \ Line Out jack)

1*RJ45 PORT

ON BOARD PORTS

20 PIN ATX POWER PORT

4 PIN ATX 12V POWER PORT

1* CD_IN port

4*USB 2.0 PORTS

1*CPU fan connector

1*F_AUDIO PORT

Accessories

CD DRIVER, BACK PANEL,MANUAL,SATA CABLE,IDE CABLE.

BIOS

4M FLASH ROM

size

235mm x170mm

PACKING

20PCS IN ONE CARTON
