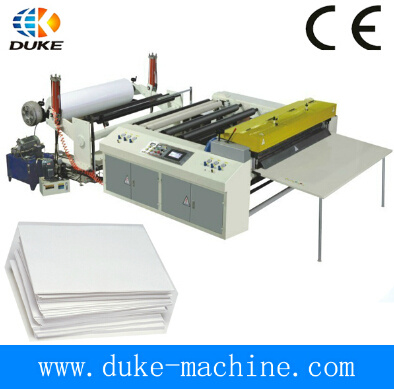

Dkhhjx-1300 Two Rolls High Capacity Office A3 A4 Paper Roll Cutter Machinery

Product Specifications

Prod Model:	DKHHJX-1100/1300
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Paper Reel Width:	1270
Capacity:	1-2 Ream/Mins
Voltage:	380V 50Hz
Color:	Customized
In Stock:	Yes
Paper Gram Weight:	60-100g
Classification:	Flat Knife Cutter
Driven Type:	Electric
Blade Material:	HSS
Computerized:	Computerized

Product Description

Automatic Paper Transverse Cutting Machine
1.Auto counting and auto warning
2.100 times/min
3.PLC,Touch Screen
4.In stock
Factory Direct DKHHJX-1100 A3/A4 Touch Screen Control One Roll Feeding Automatic Paper Transverse Cutting Machine Usage:
We are Paper Cutting Machine Manufacturers,this Paper Transverse Cutting Machine is suitable for cutting the large coil packaging material,such as the paper, papaer plastic complex material and color printing complex material,etc This machine is widely used for application in the industries of paper processing and printing packaging.
One Roll Feeding Automatic Paper Transverse Cutting Machine Function:
1,This Paper Transverse Cutting Machine adopts the servo motor (or stepless motor) to control the fixed-length cutting .It is equipped with the photoelectric tracing modifying system.

2,This machine integrates photo. electricity liquid and as a whole, PLC touching screen (manual or antomatic), and has the features operation,high-precision cutting,state operation and low noise.

3, The machine has the fenture of the motor frequency speed adjustment.

4.automation counting, giving an alarm when stop. and tension with digital indication.

Our Service :
1. Purchase Service
We have a specialized and efficiency working team. If you are new on the Plastic Machinery area, Some samples of your products could be show to us will be appreciated ,we will give you specialized suggestion of whole work .
2. Shipping Service
We have a specialized and independent department which just for shipping the buyer's goods .The workers are knowing T/T, L/C Items very well. All Exported documents could be made perfectly.
We cooperated with the most famous shipping company in China also. They could provide the best and economic shipping ways to the buyer's port.
3.Installation and Training Services
Installation Services are available with all machines. We will dispatch technician to The Buyer's factory to installation and preoperation of machines .But the buyer need to supply the round trip tickets ,food ,hotel and other cost.
Training on our factory also be welcome.
4.After Sales Service
Our machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with machines.
Any parts broken, Just a pictures or a videos.Then new free parts will reach within 3-7 Express working days .

Paper Cutting Machine Main technical parameters:

Model parameters	DKHHJX-1100		DKHHJX-1300	DKHHJX-1600
maximum diameter of raw materials	1400mm		1400mm	1400mm
The largest-cut width	1100mm		1300mm	1600mm
The accuracy	20-1200mm		20-1200mm	20-1200mm
Precision of fixed	±0.2mm		±0.2mm	±0.2mm
Productivity	100 m/min		100 m/min	100 m/min
Total power	11kw		13kw	15kw
Weight	2300kg		2600kg	3000kg
Applicable power	380v/50Hz(three phases four wire)
Dimensions (mm)	5500×1850×1200	5500×2100×1250			6000×2400×1250
