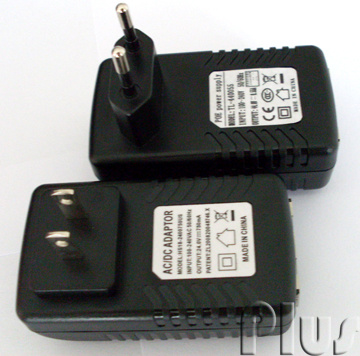

Compliant with isolation and channel
Data and power carried over one Ethernet cable
Characteristics of IEEE802.3af
DC good LED
Full protection OCP, OVP
Non-vented case
Safety:
Safe operation
Others: Widely used for Laptop, personal computer and other portable net device ect.
|
AC Input Voltage Range |
EMC |
|
90 to 264VAC |
FCC Part 15 Class B |
|
AC Input Voltage Rating |
EN55022 Class B |
|
100 to 240VAC |
Isolation Test |
|
AC Input Current |
Primary to Secondary: 3000VAC for 1 minute 10mA |
|
0.5A(RMS) max. for 90VAC |
Primary to F. G.: 1500VAC for 1 minute |
|
0.35A(RMS) max. for 240VAC |
Output to F. G.: 1500VAC |
|
Leakage Current |
Immunity EN50082-1 |
|
0.25mA max. @ 254VAC 60Hz |
ESD: EN61000-4-2. Level 3 |
|
AC Input Frequency |
RS: EN61000-4-3. Level 2 |
|
47-63Hz |
EFT: EN61000-4-4. Level 2 |
|
AC Inrush Current |
Surge: EN61000-4-5. Level 3 |
|
15A(RMS) max. for 115VAC |
CS: EN61000-4-6. Level 2 |
|
20A(RMS) max. for 230VAC |
Voltage Dips EN61000-4-11 |
|
OUTPUT: |
Harmonic: EN61000-3-2 |
|
Total Output Power |
Insulation Resistance |
|
12W |
Primary to secondary: > 10M OHM 500VDC |
|
Efficiency |
Primary to FC: > 10M OHM 500VDC |
|
80% (typical) at Max. load, and 120VAC 60Hz |
FEATURE: |
|
Hold-up Time |
Over Voltage/Current, Short Circuit Protection |
|
16mS min. 120VAC and max. load |
The output can be shorted permanently without damage |
|
Transient O/P Voltage Protection |
Indicators |
|
60V max. at switch on and off at any AC line Phase |
Led #1 indicator for input power “ on” GREEN |
|
ENVIRONMENTAL: |
Input Connector |
|
Temperature |
IEC320 inlet 3 pin |
|
Operation 0 to +40° C |
Data Connector |
|
Non-operation -25 to +65° C |
RJ45 +24V pins4& 5, Power Return pins7& 8 |
|
Humidity |
|
|
Operation 5 to 90% |
|
