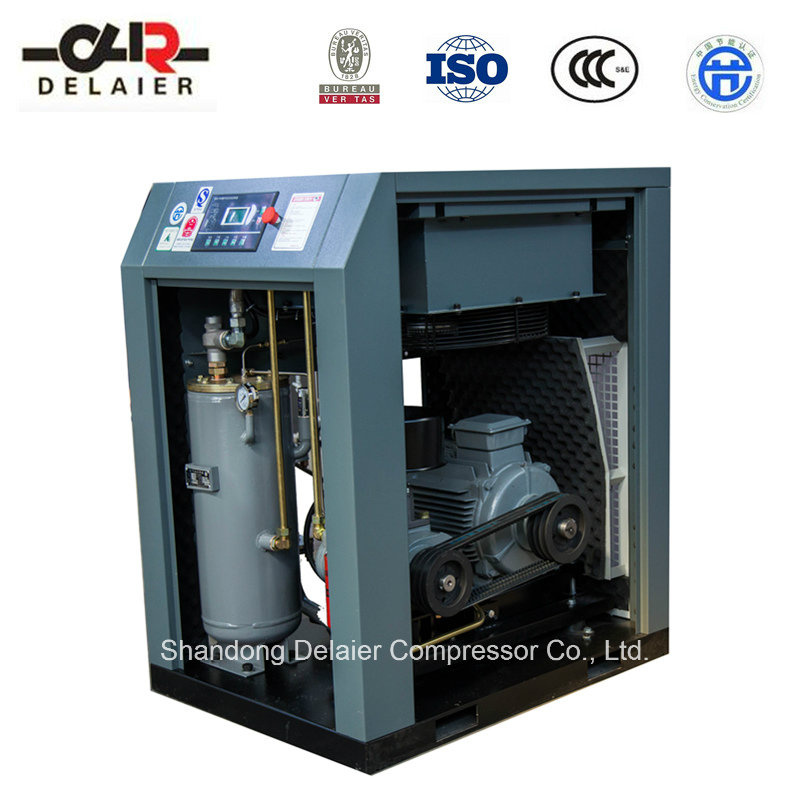

Dlr Rotary Screw Compressor Screw Air Compressor Dlr-15A
Product Specifications
| Prod Model: |
DLR-15A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
DLR-20A |
| Type: |
Screw |
| Power Source: |
AC Power |
| Material: |
Cast Iron |
| Mute: |
Mute |
| Drive Mode: |
Belt Drive |
| Configuration: |
Stationary |
| Lubrication Type: |
Oil-Lubricated |
| Place Of Origin: |
China |
| Power: |
11kw |
Product Description
The electric motor we use is specially designed for screw air compressors. It's called YE3 series, it has protection class of IP55,insulation class is F.the biggest feature of this YE3 is its energy efficiency, compare with the Y, Y2 series, its energy efficiency has increased more than3%, overload capacity has increased more than 20%, YE3 series has received subsidy from government due to its energy saving.product detail:| Model NO.:DLR-15A | Type:Screw air compressor |
| Drive Mode:belt drive | Power Source:AC Power |
| Configuration:Stationary | Material:Casting iron |
| Power:11kw | Weight:400kg |
| Dimension:L950×W800×H1130 (mm) | Outlet Caliber:G3/4′′ |
| Noise:70±2 | Export Markets:Global |
| Quality certificate:ISO9001:2000 | Trademark:DLR |
| Packing:Wooden box or at your request | Place of Origin:China |
| Lubrication type:Oil Lubricated | Air Flow/Air Discharge Pressure:m³/m,Mpa
1.7/0.7 1.6/0.8 1.4/1.0 1.2/1.3 |
Main Feature:The electric motor we use is specially designed for screw air compressors. It's called YE3 series, it has protection class of IP55,insulation class is F.the biggest feature of this YE3 is its energy efficiency, compare with the Y, Y2 series, its energy efficiency has increased more than3%, overload capacity has increased more than 20%, YE3 series has received subsidy from government due to its energy saving.Other feature - Original imported key components
- Low Energy Consumption,Low running,maintenance cost.
- Intelligent Control,PLC control, LCD display
- Easy to install,operate,maintain.
- Highly efficient operation provides Up to 35% energy savings
Specification:YE-3Energy efficient three-phase induction motor
Frequency: 50HZ,60HZ
Insulation class:F
Ambi.temperature:-15ºC--40ºC
Running voltage :220/380V(If this doesn't suit your power source, we can make different version to meet your requirement.this may require longer delivery time.) Air end The third generation American asymmetric rotor technology.
Processed with kapp grinding machine imported from German
Oil-gas separator systemIntegrated design, increased oil separation filter, increasing the filtering efficiency.
Low oil content(<=2ppm) Cooling systemLower discharge temperature(5-15ºC higher than ambient temperature.)
Stronger environmental suitability(-10ºC-----45ºC)
CabinetAll closed sound insulation design
Reducing the internal dustTechnical parameter| Technical Parameter |
| Model | DLR-7.5A | DLR-10A | DLR-15A | DLR-20A | DLR-25A | DLR-30A | DLR-35A | DLR-40A |
| Airflow/Discharge pressure(m³per min/Mpa) | 0.85/0.7 | 1.2/0.7 | 1.7/0.7 | 3.1/0.7 | 3.1/0.7 | 3.8/0.7 | 3.8/0.7 | 5.2/0.7 |
| 0.78/0.8 | 1.1/0.8 | 1.6/0.8 | 2.2/0.8 | 2.9/0.8 | 3.5/0.8 | 3.5/0.8 | 5.0/0.8 |
| 0.65 | 0.95/1.0 | 1.4/1.0 | 2.0/1.0 | 2.7/1.0 | 3.2/1.0 | 3.2/1.0 | 1.3/1.0 |
| 0.5/1.3 | 0.8/1.3 | 1.2/1.3 | 1.7/1.3 | 2.2/1.3 | 2.9/1.3 | 2.9/1.3 | 3.7/1.3 |
| Motor | (KW) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 22 | 30 |
| (HP) | 7.5 | 10 | 15 | 20 | 25 | 30 | 30 | 40 |
| Nosie dB(A) | 65±2 | 65±2 | 70±2 | 70±2 | 75±2 | 76±2 | 68±2 | 76±2 |
| Outlet caliber | G3/4 | G3/4 | G3/4 | G3/4 | G11/4 | G11/4 | G11/4 | G11/4 |
| Weight(kg) | 200 | 240 | 400 | 410 | 590 | 630 | 620 | 680 |
| Dimension | L(mm) | 770 | 770 | 950 | 950 | 1000 | 1000 | 1380 | 1000 |
| W(mm) | 650 | 650 | 800 | 800 | 1100 | 1100 | 850 | 1100 |
| H(mm) | 850 | 850 | 1130 | 1130 | 1240 | 1240 | 1145 | 1240 |
FAQ1.Are you a factory or a trading company?
Shandong Delaier Compressor CO., LTD is a professional manufacturer of air compressors
2.Can I become your agent?
We welcome companies from all over the world to co-operate with us, become our partner.please contact us.
3.Is OEM and ODM available?
Yes, OEM and ODM are both available. We have nearly 20years experience in air compressor manufacturing and professional engineers to make sure that your requirement in quality will be meet.
4.Is the sample available?
Unfortunately, we don't provide free sample due to its value.
5.Are the products tested before shipping?
Definitely, every air compressor has to go through comprehensive and strict test before goes out our factory.
6.We really interested in your product,but the power supply in my country is different,could you change it and make it suitable for us?
Yes you can, we can custom make by using specificity designed motor to match with your country's power supply voltage and frequency.
ShanDong Delaier compressor company is a professional manufacturer of air compressors, located in Wei fang city, Shandong province of China. Weifang city is the famous of its machinery manufacturing, textile industry and kite, weifang is well-know as the "the capital of kite", and hosting Weifang International KIte festival every year.
ShanDong Delaier compressor company formerly known as LIDE machinery company. We started making air compressors since 1996, with almost 20years in business, we have grown from a small workshop to a medium sized manufacturing company with more than 11, 000 square meters of facility, have own R&D department, more than 20 engineer, own import&export department, and our domestic and international sales are now increasing double digit every years, we always pursing better design, better product, better quality and better service.
Our main products are
Rotary screw compressor
Piston compressor
Oil-free air compressor
Diesel air compressor
Compressor parts and accessories
Our air compressors have the reputation of reliability, low-running cost and quick respond technical support. We are so proud to receive the honor of "Shandong customer satisfied company" which issued by Shandong consumer association, and "ten gold product" issued by the Weifang consumer association.
In 2007, we got our factory audited and receive certificate of ISO9001: 2000, and we start expand our sales to global market, since then, we have exported to over thirty different country and received very positive feedback and help making profit for our client.
We hope we can cooperate together and expand our business for both of us.
