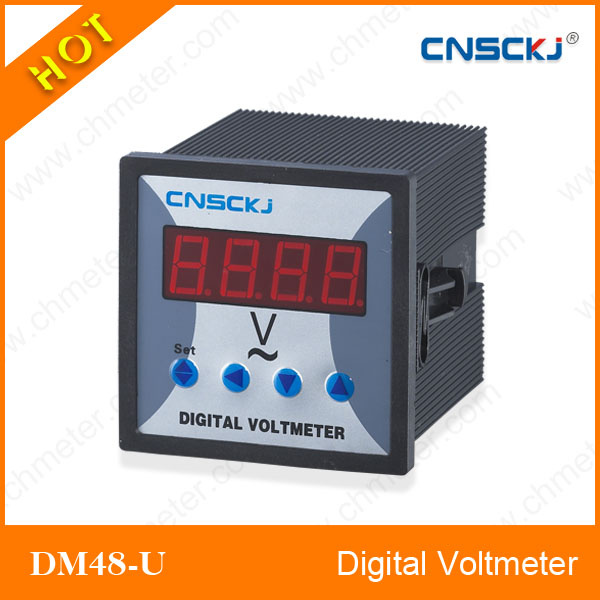

Product Specifications
| Prod Model: |
DM48-U |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
48*48 |
| Power Supply: |
AC220V |
| Theory: |
Electronic Meter |
| Usage: |
Standard Electric Energy Meter |
| Display: |
Digital |
| Power Source: |
AC and DC |
| Installation: |
General Installation Meter |

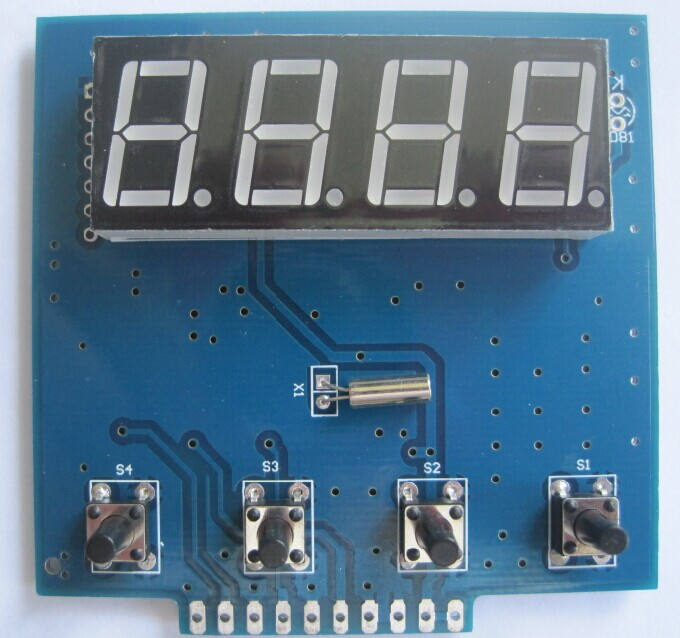

Product Description
Function: Real-time measurement and indication on AC or DC voltage(current) in an electric circuit; program mable CT/PT ratio; Higher and lower limit alarm output and programmable rely time of alarm.
Basic parameters:Measuring range:
AC voltmeter AC 10
~ 600V
,external PT is necessary if more than 600V
DC voltmeter DC 10
~ 600V
Accuracy
:±(0.5%FS+1 digit)
Measuring display mode: 4 LED nixietube effective value display
Resolution
:last figure one digit
Overflow indication
:the top digit display "1" or "-1" and other digit hiding
Auxiliary power supply
:AC 220V
±10%
Alarm contact capacity
:AC250V/1A
Alarm Shift Difference
:0.1%FS
~50.0%FS
Alarm delay time
:0.0
~99.9s programmable

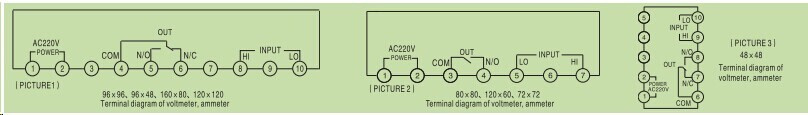

Terminal arrangement and wiring connection: ( Attention: If it is not the same with the wiring schema of the diagram behind case, please accord to the one of diagram behind case)
POWER
:Auxiliary power input port of instrument, Auxiliary power supply is AC 220V
±10% (please note if you need special power supply).
INPUT
:Signal input port of instrument, HI represents
"+
" port of DC input signal, fire wire terminal of AC voltage input signal and inlet wire terminal
of AC current input signal.
LO:
"-
" port of DC input signal, the other one wire of AC voltage input signal; the outlet wire terminal of AC current signal input
OUT
:the alarm contact output port of meter
|
Model |
Product name |
Panel size(mm) |
Fixing size (mm) |
QTY |
|
DM96-U |
Single phase digital voltmeter |
96*96 |
91*91 |
36 |
|
DM72-U |
|
72*72 |
67*67 |
36 |
|
DM9648-U |
|
96*48 |
91*45 |
45 |
|
DM48-U |
|
48*48 |
45*45 |
48 |
|
DMG-U |
|
100*53 |
din |
100 |
|
DM96-3U |
Three phase digital voltmeter |
96*96 |
91*91 |
36 |
|
DM72-3U |
|
72*72 |
67*67 |
36 |
|
DM9648-3U-1 |
|
96*48 |
91*45 |
45 |
|
DM48-3U |
|
48*48 |
45*45 |
48 |
|
DM96-3U-1 |
|
96*96 |
91*91 |
36 |
|
DM72-3U-1 |
|
72*72 |
67*67 |
36 |
|
DM48-3U-1 |
|
48*48 |
45*45 |
48
|
