Product Specifications
| Prod Model: |
DM9648-H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
96*48 |
| Display: |
Digital |
| Frequency Range: |
Universal Frequency |
| Type: |
Simple Digital |
| Function: |
Frequency Measurement |
| Measurement Methods: |
Direct Counting |
Product Description
Function:
Measure and digital display on single-phase /three-phase power factor or phase value of electric wiring. The power factror meter can see the frequency and power factor value through the keybroad. Switching value output( Higher and lower limit alarms) modules, analog value transmitting output module, RS 485 communication module optional offered,
It can conveniently realize the setting of many parameters including higher and lower limit alarm value, alarm return difference, communication address and communication baud rate, transmitting output specificationm transmitting output range by the keyboard of instrument.
Technical parameter:
Model: DM9648-H

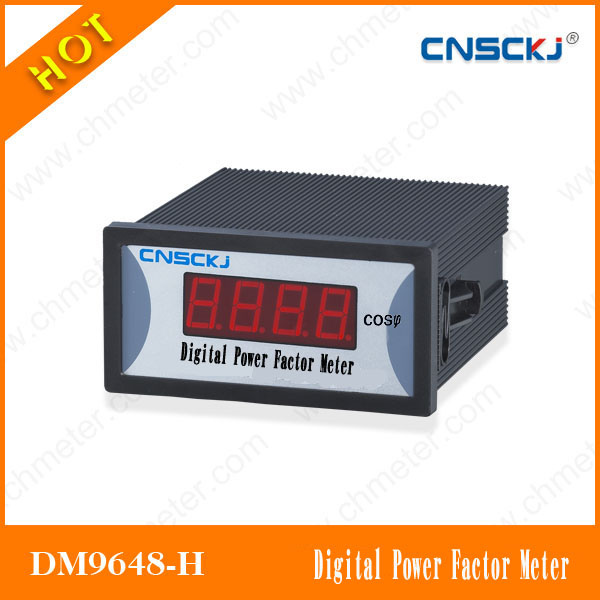

Product Name: Single phase power factor meter
Panel Size: 96*48
Fixing Size: 91*45
Basic parameters:
Power factot measurement display range: 0.001L-0.500L-1-0.500C-0.001C
Phase measurement display range: 0 degree -359.9 degree
Frequency measurement display range: 45.00-65.00HZ
Accuracy of power factory measurement: +-0.01:
Accuracy of phase measurement: +-1 degree
Accuracy of frequency measurement: +-0.1HZ
Resolution: Power factor display resolution is 0.001
Frequency display resolution is 0.01 HZ
Phase display resolution is 0.1 degree
Sampling rate: About 2.5 times/sec
Rated input voltage: AC100+-10%, 220V+-10% or 380V+-10%
Input current: 1A-5A
Auxiliary power supply: AC/DC 85-264V
Alarm Output: Relay contact, the contact rating is AC250V/1A
Communication port: RS485 Serial communication, Modbus-Rtu commucation protocol
Transmitting output: Can be set freely as DC 0-10mA, 0-20mA or 4-20mA, electrical isolation between the singal input and auxiliary power supply.
Transmitting output load resistance: <400
Switch value input: Two-channel of passive contact input (can customize four channels)
