Product Specifications
| Prod Model: |
PXH-1-350 |
| Markets: |
North America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| DMX512 Decoder & Driver: |
With 256 Gradations and Full-Color Contronl |
Product Description
Name: DMX512 constant current decoder
Part no.: Pxh24-1-350
Summarize: Thanks for your using px series DMX512 decoder & driver. Px series adopt the advanced micro-computer control technology and converted the DMX512/1990 digital signal widely used in international to the analog control signal. 1~24 channels output for option and each channel able to achieve 256 gradations of controling, and also it can be used as the connector of PC digital- light controller and analog light modulator. It is mainly used for the controlling of buildings & lights appliedled. Product features
1. Meets DMX512/1990
2. With 256 gradations and full-color contronl
3. With 24 channels output and max. 3a/CH output
4. Can achieve the asynchronous color changes effect under working with DMX controls system.
5. With the light color selected mechanism, and be able to control the light with 1~3 colors
6. Set the DMX address code freely
7. With good noiseproof feature, over-circuit & overtemperature protection and self-rerun routine
8. Custom-made
Name: DMX512 master controller part no.: DMX100
Features:
Meets DMX512(1990)
Wireless remote controller
256 levels of grey, totally 16.77 million colors, really full color
Various modes with pause function
Eight different speed level
Automatic parameter memory
Various output interface, xlr-3 male & female, rj11
Convenient for wiring and installation
Good function at anti-jamming and auto-resumption.
General introduction:
DMX100 is a full-color LED control system which uses on indoor and outdoor decorative lighting. This control system can fulfill 256 grey levels for each r, g, b color, totally 16.77 million real full-color. With the wireless remote controller, you can achieve the mode change and speed adjustment very conveniently. There are 30 modes and 8 levels of speed you can choose, and with the pause function, you can keep the fixed color optionally.

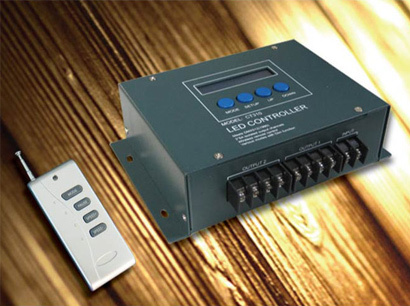

Name: DMX512 master controller part no.: Ct310
Features
Meets DMX512, can be used as a DMX512 decoder
LCD screen for easy programming and showing currently state
Wireless remote controller(optional) for changing color pattern,
Speed and brightness
256 levels brightness, totally 16.77 million colors, real full color
(up to 65536 levels)
36 changing modes, separate speed regulation for each mode
0-100 different changing speed level for each mode
Automatic parameter memory, parameter re-load function
RGB individual dimming function
Two kinds DMX512 control signal input/output interface:
Xlr-3 male & female, RJ45
Can be unlimited extend power by power amplifier RP306
Convenient for wiring and installation
Good function at anti-jamming and auto-resumption.
General introduction
Ct310 is a full-color LED control system which uses on indoor and outdoor decorative lighting. It has more than 30 color changing patterns, speed of each pattern can be adjusted separately. There is a LCD screen to display the program info. It has a dimmer mode, user can get wished color from this mode. Its also can work with a DMX512 controller/console. It can be connected to the power amplifier (RP306) to expand unlimited power
Foresight technology groups Co., Ltd, located in shenzhen is a very professional manufacture of LED power supply, AC/DC adapter, enclosed SMPS, open frame SMPS, LED DMX controller. Fore-sight has earned a good reputation in this field specializing in design, development, production and after-sale service of switching power supply.
Based on our earnest work attitude, sharp market sense, powerful technical support and passionate service, now we are growing into a very outstanding star in this field. We have our own factory and have a large group of experienced engineers with more than 10 years experiences. Besides, our products has passed the ISO9001 race qms, and some of models have been CE, UL, EMC and RoHS certified. We have distrbution and sales line around the world. We keep receiving constant orders from Russia, Australia, southeast Asian, European and American countries.
With the water proof rating IP67 & IP68 and patented housing design, our products can be functioned well both indoor and outdoor and they have a wide range of applications from the common use of LED light to some commercial and mechanical industry, etc.
We have very strict quality-control and production management system. And we aim to guarantee that each product can meet the requirement of our customers, which is also the long-lasting pursuit of fore-sight: Customer-oriented and quality-based".
Fore-sight always keeps moving and try to catch up with the time, and we will always try to provide you the best-quality products at competitive price.
