Product Specifications
| Prod Model: |

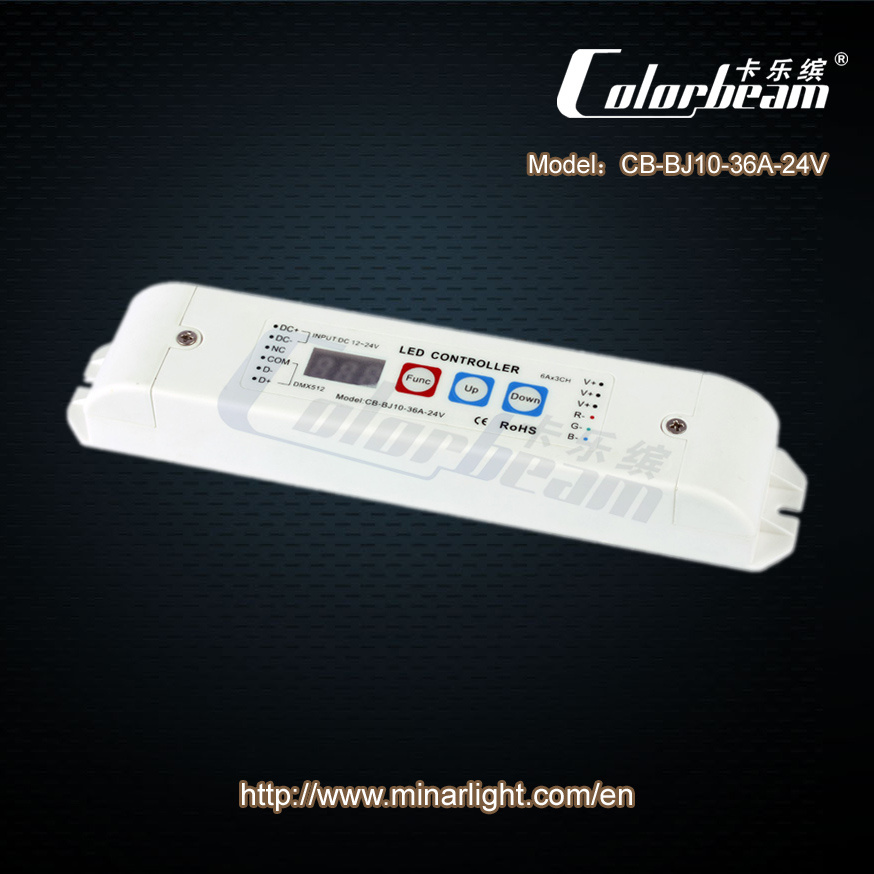

CB-BJ10-36A-24V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product: |
DMX Constant Voltage Dimmer |
| Signal: |
DMX512 |
Product Description
DMX Constant Voltage Dimmer
DMX Constant Voltage Dimmer can receive and send DMX512 signal. It can be controlled by DMX programmer or preset programs (master/slave mode).
According to different lighting products, DMX constant current dimmer has two
Types:
Digital display (plastic case)
DIP switch (iron case)
They are designed to dim small powers LED strip lights, LED wall washers, LED ceiling lights, LED spotlights, LED down lights and more.
Features:
1. Brightness control from 0 to 100%, stable and soft and no flicker;
2. Preset 22 programs and 8 grades of speed, master/slave control;
3. For plastic case, press key and digital display, wireless remote control is optional;
4. It can connect to power amplifier if dimmer is overloaded;
5. High refresh rate, meets the requirement of camera;
6. It can act as a power amplifier.
|
Model |
Inout Voltage |
Max Output Current |
Max Output Power |
Remote |
Size (mm) |
|
CB-BJ10-36A-24V |
DC12-24V |
Constant Voltage 6A(max)*3CH |
216W(12V)/432W(24V) |
Optional |
L211*W43*H30(Plastic) |
|
CB-BM10-36A-24V |
DC12-24V |
Constant Voltage 6A(max)*3CH |
216W(12V)/432W(24V) |
_ _ |
L165*W41*H27 (Steel) |
|
Model |
Input Voltage |
Output Current |
LED Quantity |
Remote |
Size (mm) |
|
CB-AJ10-3350-24V |
DC12-24V |
Constant Current 350mA*3CH |
3CH*(1-6) 1W LED |
Optional |
L211*W43*H30(Plastic) |
|
CB-AJ10-3700-24V |
DC12-24V |
Constant Current 700mA*3CH |
3CH*(1-6) 3W LED |
Optional |
L211*W43*H30(Plastic) |
|
CB-AJ10-3350-48V |
DC12-48V |
Constant Current 350mA*3CH |
3CH*(1-12) 1W LED |
Optional |
L211*W43*H30(Plastic) |
|
CB-AJ10-3700-48V |
DC12-48V |
Constant Current 700mA*3CH |
3CH*(1-12) 3W LED |
Optional |
L211*W43*H30(Plastic) |
|
CB-AM10-3350-24V |
DC12-24V |
Constant Current 350mA*3CH |
3CH*(1-6) 1W LED |
_ _ |
L165*W41*H27 (Steel) |
|
CB-AM10-3700-24V |
DC12-24V |
Constant Current 700mA*3CH |
3CH*(1-6) 3W LED |
_ _ |
L165*W41*H27 (Steel) |
