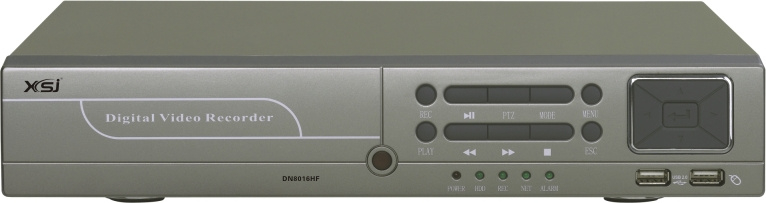

Product Specifications
| Prod Model: |
DN8016HF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Standalone |
| Feature: |
High Definition |
| Operating System: |
Linux |
| Technology: |
Pan / Tilt / Zoom |
| Sensor: |
CMOS |
| Style: |
Digital Video Record |
| Horizontal Resolution: |
CIF: NTSC 480fps/352x240; CIF: PAL 400fps/352x288 |
Product Description
Common Features:
1) Operation System: Embedded Linux operation system.
2) Compression Format: H. 264.
3) Video System: NTSC / PAL
4) Mobile monitoring: Support I-phone, Blackberry, Android, windows Mobile and Symbian.
5) New 3G function: HUAWEI 3G modem
6) Network protocol and function: Support DHCP, UDP, TCP/IP, DNS, DDNS and PPPOE. Send Email when alarm.
7) Recording modes: Always recording, manual recording, schedule recording, sensor recording and motion recording
8) Searching modes: Time/date searching, event searching, urgent searching
9) Back up modes: Network, USB device, SATA DVD ROM.
10) Alarm modes: Sensor, Motion Detection, Video Loss, HDD Loss, HDD Full.
11) PTZ control: RS-485 PTZ control (speed dome camera), and preset position operation
12) System Operation: Mouse, Remote Controller, Front Panel.
13) Playback mode: Support fast forward and rewind: X2, x4, x6
14) Multiplex operation: Live/recording/playback/network can be operated at the same time.
15) Display function: High quality image, brightness, contrast, sharpness and color adjustable for each channel; Support video
Sequence display; Detailed event log support; Digital zoom function on both preview and playback mode.
16) Manu language: Chinese, Russian, French, Italian, German, Spanish, Portuguese, Turkish, Thai, Hebrew, Greek, Vietnamese, English.
17) Environment: Operating Temperature: 0~+55 Centigrade Operating Humidity: 10%-90%
Individual characteristics
18) Video input&output: 16CH Video inputs, 1.0VP-P/75Ω, BNC; Video output BNCx1, 1CH VGA output.
19) Audio input&output: 4CH Audio inputs, 1CH Audio output
20) Alarm input&output: 16CH Sensor Alarm input, 1CH Sensor Alarm output
21) Display modes: PIP, FULL, QUAD, 9/16 SPLIT
22) Display Resolution: NTSC: 720x480; PAL: 720x576
23) HDD port: SATA x 2
24) FPS and Resolution: CIF: NTSC 480fps/352x240; CIF: PAL 400fps/352x288;
25) LED indicator: Power, HDD, Record, Alarm, Network.
26) VGA Resolution: 1280x1024, 1024x768, 800x600
27) Power Supply: DC: 12V
28) Dimension: 330(L)* 250(W)* 60(H) mm
Shenzhen Xinshijia Technologies Co., Ltd is one of the leading DVR manufacturer in China, with more than 10 years' development, our plants cover 2500 m2, staff up to 200, integrate R&D, manufacturing and marketing as a unit, and we provides three series products: Stand-alone DVR series, Quad processor series and multiplexer series. With our strict management, advanced devices, effective production line and professional staff, our company has obtained the authentication of FCC and CE. What's more, our products have been well marketed in 107 countries and we can design and manufacture products according to customers' exact requirements. With the foundation of abundant technology, perfect sales network, high qualified experience, also with the great support from our craft brother and partners, we wins ourselves public praise from our domestic and oversea clients. Xinshijia Technology always persists service idea of "quality first, client first". We aims to rank ourselves among the first-class security system providers in the world. Hope to cooperate for mutual growth with interested parties.
