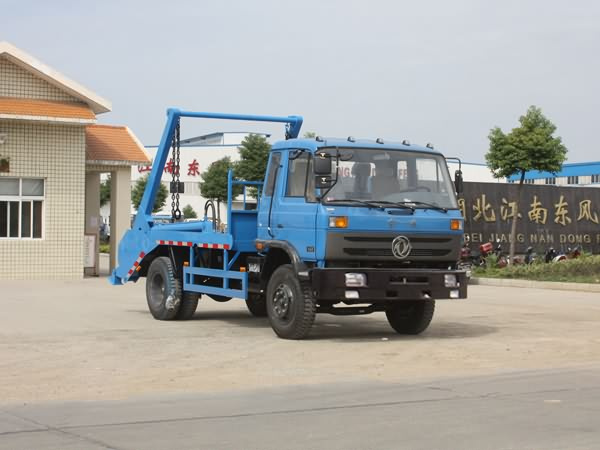

DONGFENG 145 swing arm type garbage truck
------ Engine
Model: EQB160-20
Power (kW): 118
Displacement (ml): 5880
Type: Water cooled in-line six cylinder supercharge inter-cooled diesel engine
Factory: DONGFENG Cummins engine limited company
------ Chassis
Outline dimensions (mm): 7680*2480*3050
Wheelbase (mm): 3950
Cab: Forward control cab and pure metal enclosed type, driver seat could adjustable, all return vision type windscreen.
------ Special Function
Capacity (m3): 8-10
Filling mouth lowest part and ground distance (mm): 860
An loads trash operating time (s: )30
An discharge trash operating time (s): 40
An loads trash operating time (s): 12
Max broke force of compression (T): 16
Max discharge the strength (T): 18
The filling lift time (S): 15
DONGFENG 145 Swing arm type garbage truck refited from EQ1108 chassis, The vehicle is artistic, the clean environmental protection, trash compartment volume is big, is the municipal administration environmental sanitation department, the large-scale industry and mining enterprise carries on the ideal which trash cleans up and takes away to use the vehicle.
