Product Specifications
| Prod Model: |
JDF5120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fuel: |
Diesel |
| Type: |
Garbage Truck |
Product Description

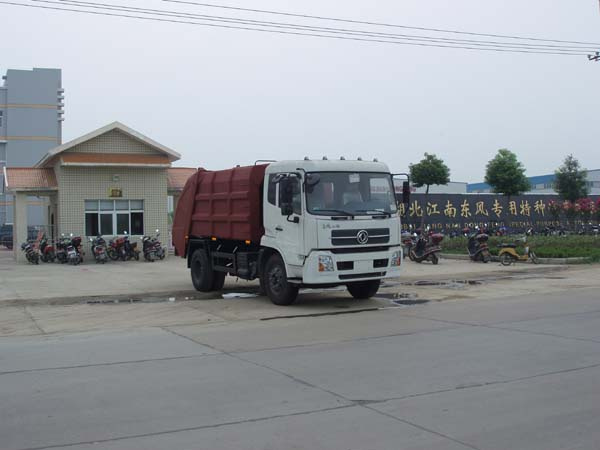

DONGFENG DFL compression type garbage truck
------ Engine
Model: B170 33
Power (kW): 132
Displacement (ml): 6494
Type: Water cooler in-line six cylinder supercharge inter cooler diesel engine
------ Chassis
Outline dimensions (mm): 8300*2460*2900
Wheelbase (mm): 4500
Cab: Forward control cab and pure metal enclosed type, driver seat could adjustable, all return vision type windscreen.
------ Special Function
Capacity(m3): 12-14.4
Filling mouth lowest part and ground distance (mm): 860
An loads trash operating time (s: )30
An discharge trash operating time (s): 40
An loads trash operating time (s): 12
Max broke force of compression (T): 16
Max discharge the strength (T): 18
The filling lift time (S): 15
DONGFENG DFL Compression type garbage truck refited from EQ1141G7DJchassis, The vehicle is artistic, the clean environmental protection, trash compartment volume is big, is the municipal administration environmental sanitation department, the large-scale industry and mining enterprise carries on the ideal which trash cleans up and takes away to use the vehicle...
Our company Production street sprinkler. Tank truck. Garbage truck. Sewage Dredging Truck. High pressure washer truck. Chemical liquid truck. Powder material truck (bulk cement truck ). Crane with automobile. Hydraulic aerial cage. Street wrecker. Fire truck. Refrigerated van. Kept temperature van. Van truck. Sweep street truck. Concrete mix truck. Electric mobile machinery automobile. Dump truck. Semi-trailer truck and so on.
Hubei jiangnan dongfeng special automobile Co., Ltd., is located in suizhou, a city famous as the hometown of Chinese ancestor emperor yan and famous for special automobile industry. The company, listed in national designated refitting manufacturer, is a refitting base of dfac and sales branch of faw. We have seven producing workshops and all of our products are catalogued in nation notice and comply with the new regulations to meet the new standards.
Main products are oil tank truck, water tank truck, fecal sucking truck, fire fighting truck, garbage truck, truck with loading crane, bulk cement/ powder transport truck, van type truck, dump truck, semi trailer, etc. We try to meet the requirements of domestic and oversea customers with products of novel design and reliable quality. We will also follow the purpose of "quality first, honesty first, and service first", to repay the society with reliable products and warm service.
