Product Specifications
| Prod Model: |
S49 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
0.25-2.5 Kw |
| Handling Size: |
2-500 Mesh |
| Diameter: |
400mm - 2000mm |
| Capacity: |
100kg - 5 Tons Per Hour |
| Guarantee: |
1 Year |
| Material: |
Q235A / SUS304 |
| Certification: |
CE |
| Type: |
Grading Machine |
Product Description
Characteristics

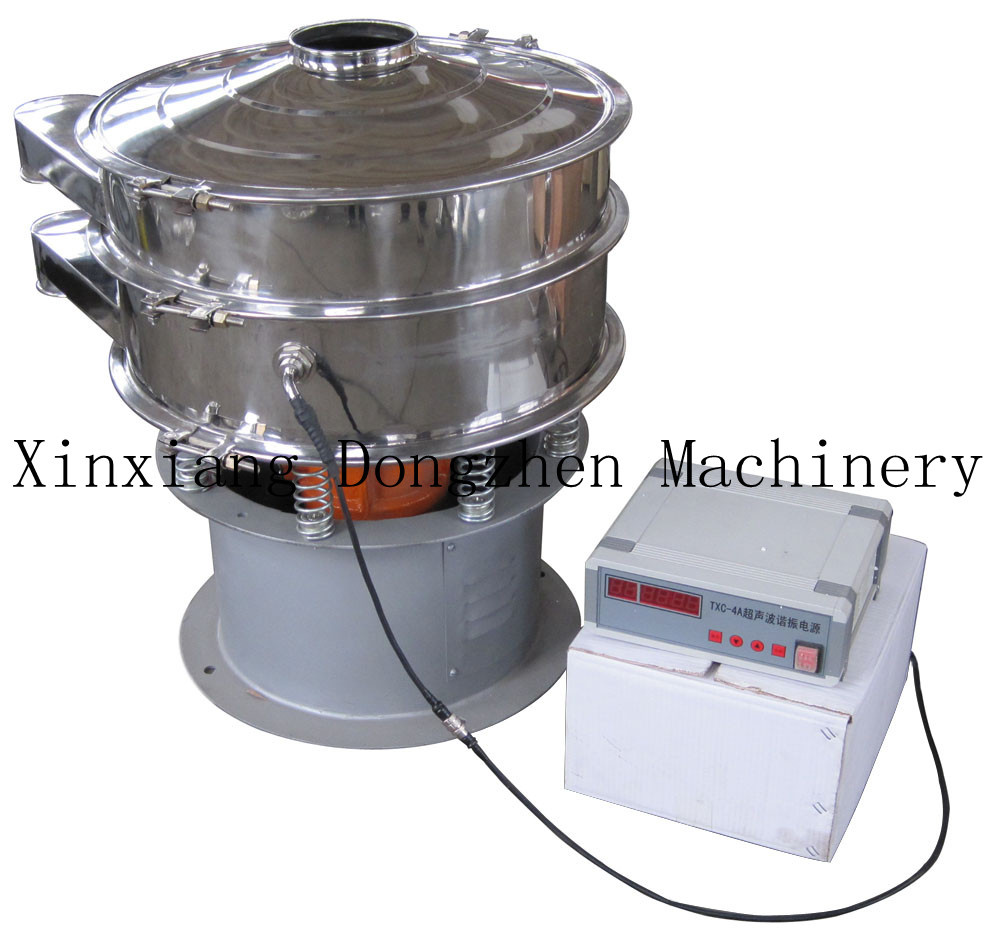

High screening efficiency, the screen mesh can be made full use of. It can be equiped with screen cloth cleaning device, which can effectively avoid clogging. Ultrasonic vibrating sieve
Principle of work
The ultrasonic vibrating wave (mechanic wave) added on the sieve mesh makes superfine powder accept the giant ultrasonic acceleration which restrains blockage factors which includes adhesion, friction, wedging etc and improves sieving and cleaning efficiency.
Features
It is able to improve the pancake and slip-effect of low-density powder in the gravity settling (light touch between powder and mesh), improving the occluding and wedging of high-density metal on the mesh, improving the adhesion effect of powder with the electrostatic, which improves the sieving efficiency and quality. Using the sieving through rate to show, it generally is able to increase the through rate of 50%-400% than one which is not ultrasonic vibrating sieve.
1. Less or no net-cleaning time.
2. No assistant objects bring pollution to the powder body e. G. Rubber ball.
3. Keep the size of mesh and make the sieving precision stable.
4. Disassemble the adhesion objects and reduce the objects on the sieve.
5. High screening efficiency
