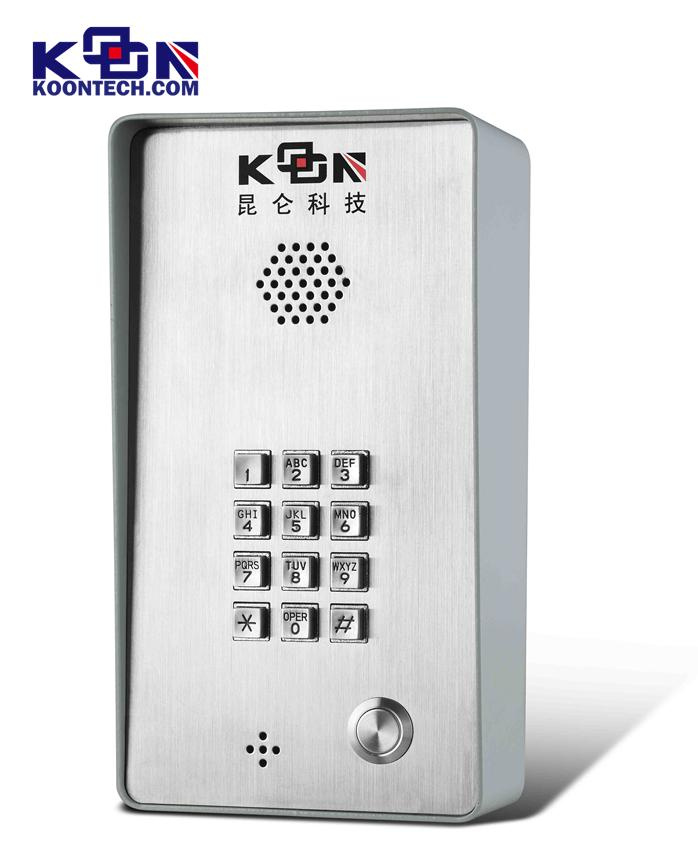

Doorbell Door Phone with GSM Knzd-43 Door Intercom System Elevator Telephone
Product Specifications
Prod Model: |
KNZD-43 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brand Name: |
Koon/OEM |
Material: |
Stainless Steel |
Product Name: |
Metro Telephone |
Keypad: |
Yes |
Loudspeaker: |
Yes |
Button: |
Yes |
Size: |
210*150 *60mm |
Wearable: |
Yes |
Vandal Resistant: |
Yes |
Lightning Proof Protection: |
Yes |
Type: |
Video Doorbell |
Peephole: |
Without Peephole |
Waterproof: |
Waterproof |
Application Scope: |
Home |
Automation: |
Automatic |
Wireless: |
Wireless |
Style: |
One-to-Many |
Power Source: |
Plug |
Active Doorbell: |
Wireless Video Doorbell |
Wireless Video Doorbell Function: |
Visible Intertalk |
Talkback Type: |
Stainless Steel |
Brand: |
Koontech |
Product Description
Doorbell Door Phone With Gsm KNZD-43 Door Intercom System Elevator Telephone
What's the Subway Auto Dial Telephone selling points?
The IP Intercom/door phone will be designed to work on apartment, hospital, school, metroHoused
in robust metal body, vandal resistant and tamper-resistant. FDSP ensure voice loud and clear. Good
looking, durable, easy to install, comfortable buttons, and low power consumption.
Support G.711,G.729, etc. Codec voice intercom
Support SIP 2.0(RFC3261) and related RFC protocol
Unlock function (swipe or communication)
Visitor leave message Software upgrading on line or status Basic Function WEB remote management of Terminal malfunction
Calling indoor extension for two-way conversation
Support SIP 2.0(RFC3261) and related RFC protocol
What's the Subway Auto Dial Telephone specifications?
Communication protocol | SIP 2.0(RFC-3261) |
Master Chip | Broadcom 1190 |
Keys | Design | Stainless steel |
Direct-button | 1 |
Numeric Keypad | Optional |
Voice | Microphone | 1 |
Amplifier | 0.5W-10W |
Speaker | 2W |
Volume Control | Adjustable |
FDSP | Support(AEC) |
Voice stream | Supportable Protocol | RTP/RTSP |
CODEC | G.711, G.729 |
Port | Power Supply | 12V+-15%/1A DC or PoE |
PoE | PoE 802.3af (Class 0 - 12.95W) 48V/380mA |
LAN | 10/100BASE-TX s Auto-MDIX, RJ-45) |
Cables | HSYV or better |
Passive Switch | Normally Open and Normally Closed highest at 30V/1A AC/DC |
Active Switched Output | 12V/500mA DC |
Rs232 | Supported |
RFID/IC Card Reader | | Optional |
Interface | Power supply | 12V+-15%/1A DC or PoE |
PoE | PoE 802.3af(Class 0-12.95W) |
LAN | 10/100BASE-TX s Auto-MDIX,RJ-45 |
Recommended cabling | Cat-5e or higher |
Passiveswetch | NO and NC contacts,up to 30V/1A AC/DC |
Actice switch output | 12V/700mA DC |
Structure | Shell Material | Cold Rolled Steel |
Operating Temperature | -40 C to55 C |
Working Condition Relative Humidity | 10%-95% |
Storage Temperature | -40 C to70 C |
Installation | Embedded installation (pre-burying) |
Size | 159*130*40mm |
