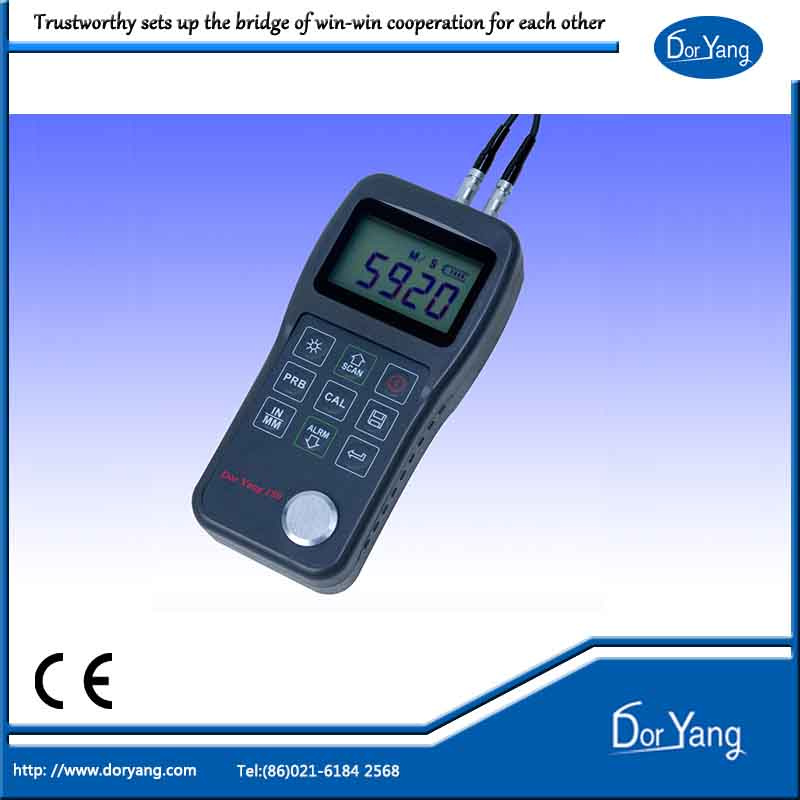

Dor Yang Mt150 Ultrasonic Thickness Gauge
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
1 OverviewThe MT150 instrument is intelligent ultrasonic thickness gauge, high performance, low power microprocessor technology, based on ultrasonic measuring principle, measuring the thickness of metal and many other materials, and to measure the velocity of materials. The production equipment of all kinds of piping and pressure vessel monitoring, monitoring them in the process of using corroded thinning degree, also can be used for accurate measurement of various materials and various kinds of machining parts. The instrument can be widely used in petroleum, chemical, metallurgy, the shipbuilding, aviation, aerospace and other fields.2 Technical parametersThe method of display: high contrast of a liquid crystal display, high brightness EL backlight;The measuring range: 0.75 ~ 300mm (steel), metric can choose;- Speed range: 1000~9999 m/s:The resolution: 0.1mmUracy -: + (0.5%H+0.04) mm H for the measured actual thicknessThe measurement cycle: single point measurement of 4 times per second, 10 times / sec scan mode;- storage: can store 20 groups (each group of up to 99 measurements) thickness measurement data.Working voltage: 3V (2 AA size alkaline batteries in series)The continuous working time: about 100 hours (on the back.)- Size: 150 * 74 * 32 mm- Weight: 245gThe 3 main functionsL suitable for measurements of metal (such as steel, cast iron, aluminum, copper and so on), conductor, ceramics, glass, plastic and glass fiber and any other ultrasonic thickness;The double crystal probe equipped with a variety of different frequencies, different size of the wafer using;L with zero calibration, a two-point calibration function, the system error of automatic correction;- known thickness can be measured the speed of sound, in order to improve the measurement accuracy;L with coupling state prompting function;The EL backlight display, convenient to use in dark environment;The battery indicator function, real-time display the remaining battery power;L with auto sleep, auto power off and power saving function;- compact, portable, high reliability, suitable for harsh operating environment, anti vibration, shock and electromagnetic interference;4 Working principleThe ultrasonic measurement of thickness thickness tester is generated by the transducer, ultrasonic pulse through the coupling agent to the measured object, a part of the ultrasonic signal is a bottom surface of an object of reflection, the probe is received by the measured echo body bottom reflection, accurate calculation of the ultrasonic round-trip time, and calculated the thickness value, then calculation results are displayed.In the formula:H thickness measurement;Variational material velocity;The propagation time of ultrasonic and T in the specimens of A.5 Instrument configurationTable 1 the instrument configuration
| Serial number
| Name | number | Remarks |
Standard configuration
| 1 | Host | 1 |
|
| 2 | The standard probe (5MHz) | 1 |
|
| 3 | The coupling agent | 1 |
|
| 4 | The ABS instrument box | 1 |
|
| 5 | Random data | 1 |
|
| 6 | Battery warehouse tools | 1 |
|
| Optional configuration | 7 | Micro probe (7.5MHz) |
|
|
| 8 | Coarse grained probe (2MHz) |
|
|
| 9 | High temperature probe (5MHz) |
|
|
Table 2 the choice of probe
Name
|
Model | Frequency
(MHZ) | Probe
Diameter |
Measuring range
|
Minimum diameter
|
Characteristic description
|
Coarse crystal probe
|
N02 |
2 |
22mm |
3.0mm ~ 300.0mm (steel)
40mm (gray cast iron HT200)
|
20
|
For the measurement of iron in coarse grain material
|
The standard probe
|
N05 |
5 |
10mm |
1.2mm ~ 230.0mm (steel)
|
20mm * 3.0mm
|
General
|
The standard probe
|
N05/90° |
5 |
10mm |
1.2mm ~ 230.0mm (steel)
|
20mm * 3.0mm
|
General
|
Micro probe
|
N07 |
7 |
6mm |
0.75mm ~ 80.0mm (steel)
|
15mm * 2.0mm
|
For the measurement of thin wall and small arc
|
High temperature probe |
HT5 |
5 |
14mm |
3 ~ 200mm (steel) |
30 | For the measurement of material temperature of less than 300 degrees Celsius. |
6 Working conditionsAmbient temperature: - 20 ~ which c operating temperature; storage temperature: -30 ~ 70 CThe relative humidity is less than or equal to 90%;The environment without strong vibration, no strong magnetic field, non corrosive medium and serious dust.
