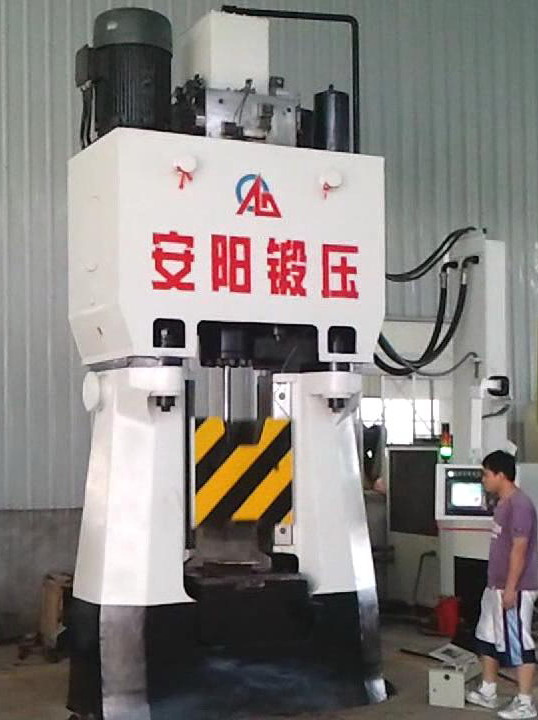

Double Acting Forging Hammer for Hand Tools Forging
Product Specifications
| Prod Model: |
C92K-25KJ Hydraulic double-acting hammer |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forging Forming Method: |
Mold Forging |
Product Description
Double Acting Forging Hammer for Hand Tools Forging, Hydraulic Die Forging Hammer striking energy at 16KJ, 25KJ and 31.5KJ are best being used for hand tools blanks forging production, such as spanner forging blanks, wrench forging blanks, pipe wrench blanks forgings, pliers forging blanks, scissors forging blanks etc hand tools blanks forgings.
Double Acting Forging Hammer for Hand Tools Forging, Programmable Hydraulic Die Forging Hammers are the most advantaged hydraulic die forging hammers, widely applied in mordern forging industries.
C92K Hydraulic Die Hammer is a High Technology Hydraulic Die Forging Hammer, with following features:
1. Programmable Hitting, the hitting procudures are programmable and the data can be storage in the PLC.？
2. Precise Hitting Energy Control, the hitting energy is controllable as per metalforming requirements, no extra energy wasted.
3. High Forging Accuracy, U shape frame and X type guide rail guarantee the samll space between guide rail to hammer head, Enhance the forging's precision.
4. Fully Hydraulic Driving to produce huge hitting energy in short stroke, and fast hitting ？frequencies.
5. Simple and Safe Operating, electrical foot padel switch control, with general control and progammablecontrol, don't need any skills or experience for hammer operating.
6. Low Forging Vibration, hammer equiped with Germany Gerb Vibration Isolator, greatly reduce vibration ？and noise, doesn't affect neighboring machinery, reduce harm to human greatly.
7. Optimum Forging Die Life, because of hitting energy precisionly control, hitting energy only effected on metalforming, no extra ？Energy wasted on forging dies.？
8. Require Less Floor Spaces.
？
From Economical Points of View:
1. Low Forging Hammer Running Cost and low electricity comsumption.？
2. High Production efficiency, high energy using rate.？
3. Enhance forgings dies life, reduce forging dies costs.
4. Less skills and experience requirements for workers.
5. Fogings with less and samll flash, saving material expense.
6. Equality forgings in quality, whatever who is the operator.？
7. Easy Maintenance, system with self diagnose function, for any problem if happened, will alarmed and will be displayed on the screen, check or replace easy and fast.
8. Suitable for Automatic production line.？
？
C92K Hydraulic Die Forging Hammer widely used in auto forgings, motorcycle forgings, Hydraulic pipe fitting forgings, hardware and hand tools, medical appliances, Stainless tableware, and aviation /spaceflight industry, such as connecting rod, crankshafts, rocker arm, Steering Knuckle Arm, fork gear, stainless fork and knife, surgical scissors … etc high precision and special shape forgings.？
？
Should any capacity Hydraulic Die Forging Hammer be of interest to you, we will be happy to give you information upon receipt of your detailed requirements.？
Model
Main Parameter |
C92K-16 |
C92K-25 |
C92K-31.5 |
C92K-50 |
C92K-63 |
|
Max. Hitting Energy |
16 KJ |
25 KJ |
31.5 KJ |
50 KJ |
63 KJ |
|
Weight of Falling Parts |
1080kg |
1700kg |
2100kg |
3400kg |
4350kg |
|
Max Hitting Frequency |
90 min -1 |
90 min -1 |
85 min -1 |
85 min -1 |
80 min -1 |
|
Max.Hiting Stroke |
640mm |
685mm |
700mm |
745mm |
760mm |
|
Main Motor Power |
45kw |
75kw |
75kw |
2X75kw |
2X75kw |
|
Machine Weight |
28000kg |
39300kg |
47000kg |
78500kg |
95000kg |
Manufacturer of Pneumatic Forging Hammer, CNC Hydraulic Die Forging Hammer, Whole Hydraulic Die Forging Hammer, Whole Hydraulic Open Die Forging Hammer, Hydraulic Open Die Forging Press, Forging Manipulator and Ring Rolling Machine.
Anyang Forging Press Machinery Industry Co., Ltd is the Chinese most reputable manufacturer of Forging Hammer, Pneumatic Forging Hammer, Hydraulic Forging Hammer, Ring Rolling Machine, Ring Rolling Mill, Ring Forging Machine, Forging Manipulator, Metal Briquette Press Machine, Metal Briquetting Press Machine, Metal Baling Press Machine, Metal Baler, Hydraulic Riveting Machine, ISO9001 certificated company, with 50 years experience and history in producing forging equipments, products exported to more than 60 countries.
Anyang Metal Forging and Metal Pressing Machinery Include Following:
(1) Pneumatic Forging Hammer Falling Weight at 9kg, 15kg, 25kg, 40kg, 55kg, 75kg, 150kg for art blacksmithing and small free forging items production, such as wrought iron decorations and farm hand tools.
(2) Pneumatic Forging Hammer Falling Weight at 150kg, 250kg, 400kg, 560kg, 750kg, 1000kg and 2000kg best for industrial open die forging works, pre-forming, drawing-out, upsetting, punching, such as forge a disc, shafts forging, ring forging.
(3) Double Arm Hydraulic Open Die Forging Hammer capacity at 1T, 2T, 3T, 4T, 5T, 6 T, 7T, 8T, 10T, 12T and 14T.
(4) Single Arm Hydraulic Open Die Forging Hammer capacity at 1T, 2T, 3T, 4T, 5T, 6 T, 7T, 8T, 10T and 12T,
(5) Hydraulic Die Forging Hammer capacity at 1T, 2T, 3T, 5T, 6T, 8T, 10T, 16T, 18Ton and 20Ton.
(6) CNC Hydraulic Die Forging Hammer blow energy at 16KJ, 25KJ, 31.5KJ, 50KJ, 63KJ, 80KJ, 125KJ, 200KJ, 250KJ, 320KJ and 400KJ.
(7) Hydraulic Open Die Forging Press at 800T, 1250T, 1600T, 2000T, 2500T, 3150T, 4000T and 5000T.
(8) Forging Manipulator capacity at 1T, 2T, 3T, 4T, 5T, 6T, 8T 10T, 16T, 20T, 30T and 40T to cooperate with open die forging hammers and forging presses.
(9) Ring Rolling Machine / Ring Rolling Mill / Ring Forging Machine producing ring forgings OD from 100mm to 5000mm.
(10) Swarf Briquetting Press / Briquette Press / Briquette Machine / Briquetting Machine
(11) Scrap Metal Baling Press / Baling Machine / Baler
(12) Hydraulic Riveting Machine for Truck / Bus Chassis Riveting.
We are ready to send you technical details and commercial offer on receiving your enquiries!
Kevin Liu
Anyang Forging Press Machinery Industry Co., Ltd
Add: Changjiang Road, High-tech Zone, Anyang, Henan, China
Tel & fax: +86 372 5931234 Mobile: +86 135 6901 9430
