Product Specifications
| Prod Model: |
UV2800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Optical System: |
Double Beam |
| Spectral Bandwidth: |
1.8nm |
| Wavelength Range: |
190-1100nm |
| Wavelength Repeatability: |
0.2nm |
| Wavelengths: |
UV/Vis Spectrophotometer |
Product Description

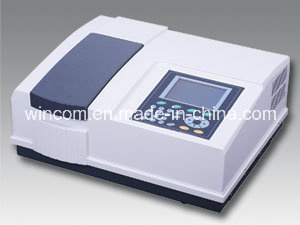

Double Beam Portable UV-VIS Spectrophotometer UV2800
Features:
UV2800 is a double beam UV/Vis scanning spectrophotometer with a big LED screen. The instrument uses intelligence modular design. It has friendly user interface, automatic operation system, powerful functions, advanced optical and circuit system and mechanical structure, and provide excellent technical specifications and long-time stable operating performance. So it can fit requirements by various users in different fields for any level's analysis applications.
UV2800 spectrophotometer operates with man-machine interaction in English. It's easy to be operated and mastered. To achieve a function is only by selecting and confirming the relevant items in the menu shown on the big LED screen. To replace light source lamps of the instrument is also very simple, only rotating some screws is needed. And the light source will be on the optimal position without tedious adjustment step.
Long lasting Stability
Ultra-low stray light
User friendly interface
Can be easily replaced light source
Easily upgraded
Brief introduction:
-New optical system and circuit system make the instrument have high-resolution, low stray light, lasting stability, high-SNR.
-This instrument can meet the multi-level analysis application requirements.
-The computer application system of UV-VIS Spectrophotometer can achieve more powerful function for your instrument.
Photometric measurement
Spectrum scan
Quantitative determination
Multi-wavelength test
Dynamics measurement (time scanning)
DNA/Protein concentration measurement
Specification:
Model No |
UV2800 |
Optical System |
Double beam |
Spectral Bandwidth |
1.8nm |
Wavelength Range |
190~1100nm |
Wavelength Accuracy |
±0.3nm |
Wavelength Repeatability |
0.2nm |
Photometric Range |
T: 0~200.00%T A: -0.301~3.0000ABS C: 0~9999 |
Photometric Accuracy |
±0.3%T |
Photometric Repeatability |
0.1%T |
Stray Light |
≤0.05%T(220nm, 340nm) |
Baseline linearity |
±0.001A |
Baseline drift |
0.0005A/h(500nm) |
Noise |
100%(T)line noise≤0.1%(T)
0%(T)line noise≤0.05%(T) |
Monitor |
320×240 large screen LCD(6 inch) |
Software (Optional) |
UV-Solution 3.0 |
Dimensions |
540×445×230mm |
