Detailed Product Description
1. Double blade machine tools
2. High efficient and energy saving
3. Using diamond segment
4. Passed CE

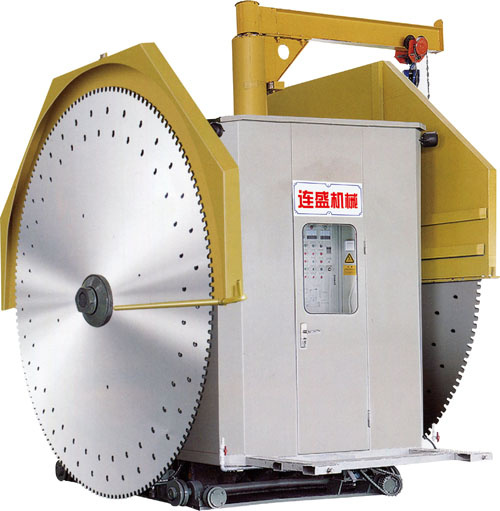

Double blade mining machine is much popular to granite&marble quarry
1. This machine is a modification of original style.
2. The rising and falling of main spindle is controlled by the hydraulic pressure of the oil cylinder
3. Four cylinders as the guide
4. More efficient and energy saving.
Double blade mining machine data
NAME | UNIT | YZK-1360/1900 | YZK-1500/2000 | YZK-1950/2450 | YZK-2600/3100 |
Blade diameter | mm | φ 2200--φ 3500x2 | φ 2200--φ 3600x2 | φ 2200--φ 4800x2 | φ 2200--φ 4800x2 |
cutting depth | mm | 850--1500 | 850--1550 | 850--2200 | 850--2200 |
Cutting width | mm | 1360--1900 | 1500--2000 | 1950--2450 | 2600--2000 |
Power of main motor | kW | 30--45x2 | 30--45x2 | 37--55x2 | 37--55x2 |
Water consumption | m² /h | 5 | 5 | 5 | 5 |
Power of totall | kw | 79.2--95.2 | 79.2--95.2 | 79.2--115.2 | 79.2--115.2 |
Gross weight | kg | ≈ 8000 | ≈ 8000 | ≈ 11000 | ≈ 11500 |
Dimensions(L× W× H) | mm | 3550x1450x2850 | 3550x1600x2850 | 5200x2100x3600 | 5200x2700x3600 |
Mark | we can supply railway with 18#(light)and 21#(light) |
Liansheng Hydraulic Machinery Co., Ltd was founded in 1988 and located in Jinjiang city, Fujian province, which occupied 20, 000 square meters, with three major branch factories: Hudraulic Components Factory, Speed-Changer Factory, Machinery Parts Factory. At present, they company has over 1000 employees, possesses more then 400 sets of advanced selective processing machinery and testing equipment.
In 2002, the company passed through the ISO9001: 2000 quality management system certification, and introduced the ISO/TS 16949 quality management system.
Liansheng Huydraulic Components Factory is mainly engaged in the production of "Liansheng" Brand medium and high pressure gear oil pumps, automobile steering pumps, hydraulic diverters, hydraulic motors, hydraulic oil cylinders, hydraulic valves, oil pumps, etc. White are widely used in the hydraulic systems for oil field, ships, automobiles, forklift trucks, cranes, mines, contstruction machinery, etc. And have been distributed throughout the international markets such as Southeast Aisa, Middle East, Africa, Europe, etc.
Liansheng Machinery Parts Factory is specilized in development, design and manufacturing stone mining machine and all kinds stone processing machines. We have released a series of stone processing equipment and stone quarry cutting machine. Such as Automatic Granite Quartz Polishing Machine(For Tile), Double-blade mining machine, Bridge-type hydraulic large-scale cutting machine, Imporved High efficiency Multi-Blade stone cutting machine, Hydraulic multi-blade block cutting machine, Bridge-Type Hydraulic Large-Scale Cutting Machine, Infrare fully atutomatic bridge type edge cutting machine, Semi-auto vertical and horizontal multi-cutting head combination edge cutting machine, etc...
We sincerely welcome the new and old friends from home and abroad to synergize with our company and share the benefits and opportunities.
