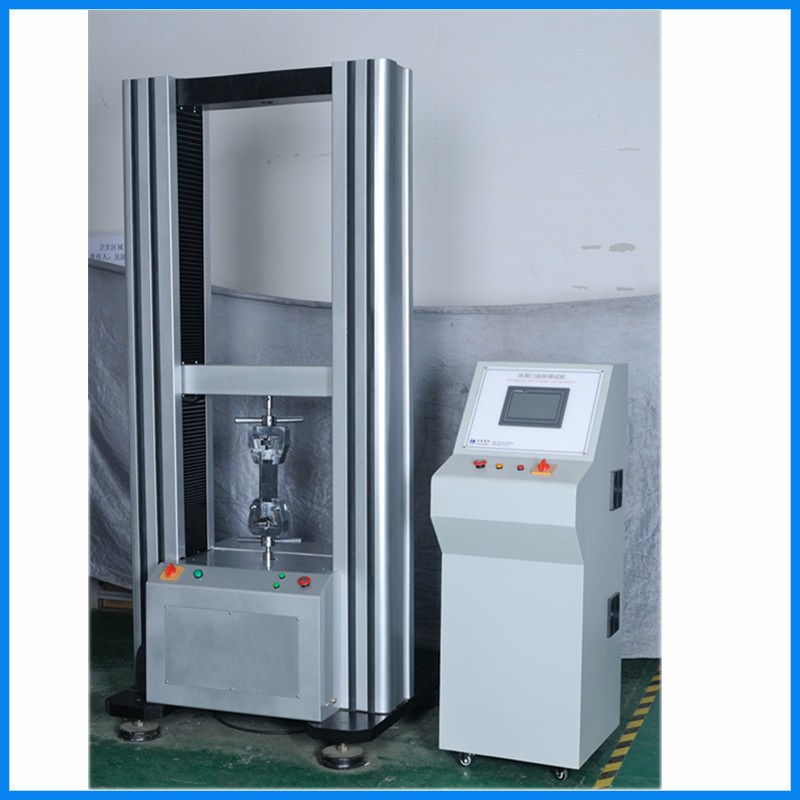

Double-Column Steel Tensile Testing Instrument
Application:
Steel Tensile Testing Instrument is used for static load for a variety of materials, tensile, compression, bending, shear mechanical properties, tear, peel and other tests of mechanical testing machine with afterburner, applied to the plastic sheet, pipe, profile, a variety of physical and mechanical properties test of plastic film and rubber, wire and cable, steel, glass fiber and other materials for the material development for physical testing, teaching and research, quality control and other essential testing equipment, testing machine fixture as an important instrument part, different materials require different fixtures, but also test can proceed smoothly and the level of accuracy of the test results is an important factor.
Features:
1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
2. Using a single-screen operation; Do not need to switch the screen;
3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily
4. The pattern of Test reports can be self-designated; Test data can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function;
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9. With the user-defined Test methods; With experimental data analysis function;
10. High quality, accurate and reliable models with reasonable price.
|
Capacity (optional) |
500, 1000, 2000, 5000kg |
|
Unit (Switchable) |
G, KG, N, LB |
|
Load Resolution |
1/100, 000 |
|
Load Accuracy |
< ± 0.5% |
|
Stroke (exclude the grips) |
1000mm |
|
Test speed |
10~300mm/min selectable |
|
Weight (exclude the grips) |
230 Kg |
|
Operation Mode |
PC |
|
Display |
PC |
|
Motor |
Servo Motor |
|
Dimension(W× D× H)-Main Unit |
983× 603× 1540mm |
|
Driver |
High precise ball screw |
