Double Column Welding Postioner

Name: Double Column Welding Postioner
Brand: China-Manufacturer-Directory.com
SKU: 699360835
Availability: InStock
Rating: 4.9 (102 reviews)

Supplier:	Wuxi Hengtong Petrolic Machinery Co., Ltd.
Price:	Negotiable
Min Order:	1set
Quantity::
Trade Terms:	by any means

Product Specifications

Markets:	Eastern Europe,Southeast Asia,Oceania
Certificate:	SGS ISO9001
Welding Method:	Arc Welder
Assistant Appliance:	Welding Gloves
Type:	Manual Metal-Arc Welding

Product Description

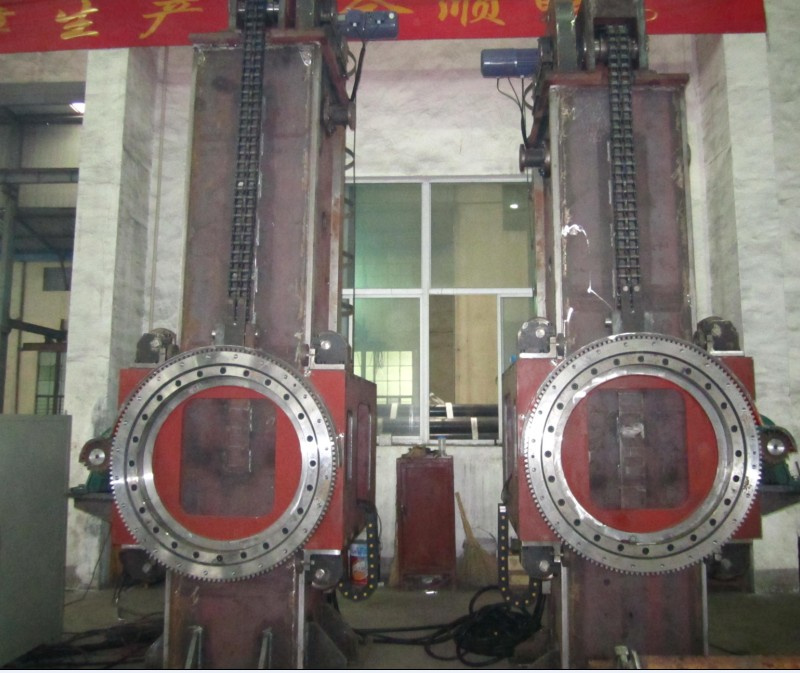

Double column welding postioner
1. Mainly used for work piece which is big and with irregular shape.
2. with function of 360° Tilting. The tilting speed could be fixed speed or adjustable.
3. with function of lifting. Lifting stoke depends on customers' requirement.
4. with function of 360° Rotating. The tilting speed could be fixed speed or adjustable.
5. with function of tilting self locking.
6. We will design according to customers' requirement.

Model	TW-100	TW-200	TW-300	TW-500	TW-800
Loading Capacity (Ton)	10	20	30	50	80
Tilt Speed (rpm)	1	1	0.5	0.5	0.2
Tilting Gravity Height (mm)	300	300	450	450	600
Rotate Speed (rpm)	0.05-0.5	0.05-0.5	0.05-0.5	0.05-0.5	0.02-0.2
Max Rotate Eccentricity (mm)	150	150	150	150	250
Lifting Speed (mm/min)	1000	1000	1000	1000	500
Min. Center Height H (mm)	2000	2000	2000	2000	2600
Lifting Stoke (mm)	Depend on customers

We are manufacturer of two business:

1. Welding equipment: Welding rotator, welding positioner, welding manipulator.

2. Seamless tubes: Hydraulic / pneumatic cyliner honed tubes, cold drawn tubes, skiving tubes.
