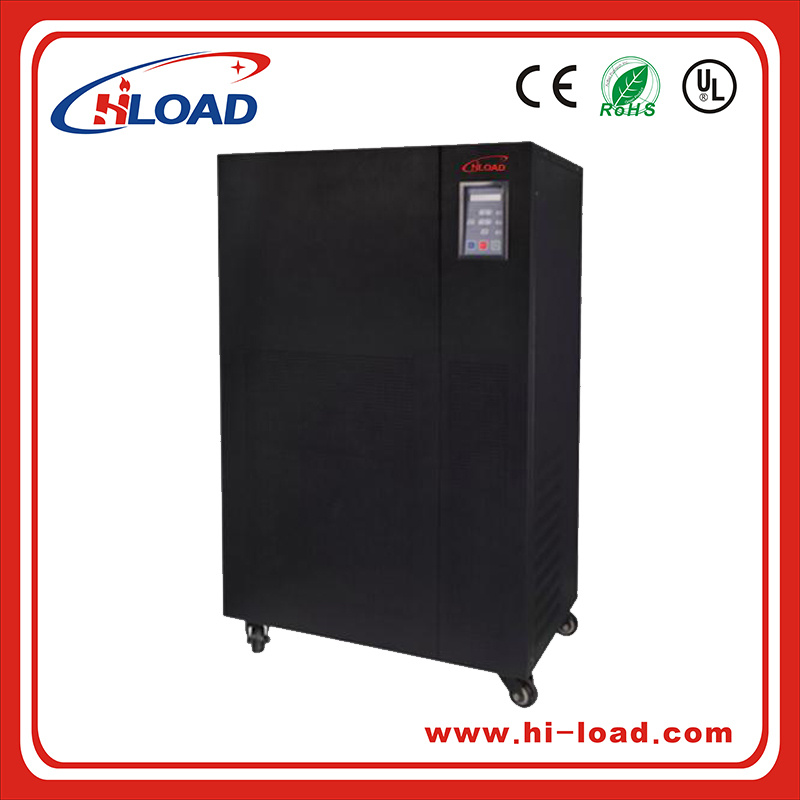

Double Conversion 80kVA Online UPS Power Supply

Product Specifications

Prod Model:	GP3380KS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	800*730*1400mm
Nominal Capacity:	80kVA
Input Voltage Range:	285VAC-480VAC
Power Factor:	0.8
Output Voltage:	380V
Switching Time:	0ms
Item:	Double Conversion 80kVA Online UPS Power Supply
Nominal Voltage:	380V
Noise:	<55db
Phase Number:	Three Phase
Phase:	Three Phase
Type:	On-line
Protection:	Unbalanced Loads
Brand:	Hi-Load

Product Description

 Double Conversion 80kVA Online UPS power supply

Product Details

Basic Info.
Model NO.:GP3380KS                                Brand:Hi-Load
Application:Communication                       Classification:Lighting/Power
Output Capacity:Medium Type                    Phase:three Phase
Voltage Range:385-480V                            Type:On-line
Power Factor:0.8                                            Standby Time:standard Machine
Standby UPS:sine Wave Output UPS        Capacity:10kVA~200kVA
Wave Form:Pure Sine Wave                       Protection:Over Load/Current/Voltage, Short Circuit etc
Display:LED/LCD                                          Intelligent Slot:Snmp Card (Optional)
Delivery Detail:10-20 Days                          Export Markets:Global


Additional Info.
Trademark:hi-load,OEM                   Packing:Wooden Carton
Standard:CE UL RHOS SGS              Origin:Shenzhen
HS Code:8504402000
Production Capacity:10000000

Technical specifications and parameters

Model GP3310KS GP3315KS GP3320KS GP3330KS GP3340KS GP3360KS GP3380KS GP33100KS GP33120KS GP33160KS GP33200KS Nominal capacity (VA) 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA 80KVA 100KVA  120KVA  160KVA 200KVA Output voltage range 285-480VAC±25% Three phase four wire input Output frequency range 50/60Hz±5Hz Automatic identification Out put power factor (PF) (PF) >0.98 Maximum input current 18A 27A 37A 55A 72A 108A 130A 160A 190A 245A 310A output voltage 380VAC(400VAC)±1% Output frequency automatic tracking input frequency output waveform sine wave power factor 0.8 overload capacity it can hold 30min/10min/1min when overload in 110%/125%/150% Protection function Electronic short circuit Current limiting protection is 1.3 times of the nominal current switching time 0ms battery voltage 384VDC/360VDC/408VDC 432VDC 480VDC LED show input,contravariant,bypass,Battery Status LCD show input,Input and output voltage,frequency,battery voltage,load percentage,inner temperature Waveform distortion linear load≤3%,nonlinear load≤5% operating temperature 0-40ºC relative humidity 0-95% Non-condensate Storage Temperature -25ºC-55ºC Noise <54dB <60dB <65dB <70dB Net Weight (kg) 200 220 240 269 351 497 556 756 901 1300 1350 GrossWeight (kg) 256 265 288 305 408 574 633 856 1001 1400 1450 Size(W×D×H)mm 390*730*1220 550*730*1220   800*730*1400 1070*745*1400   1420*745*1810

Key features:
1, Double conversion on-line design, including output isolation transformer
2, Wide input voltage design, the remarkable grid adaptability
3, Zero switching time, pure sine wave output
4, Durable and reliable industrial design, strong load compatibility
5, DC emergency start function
6, Perfect protection function, standard configuration have lightning and surge protection
7, Intelligent monitoring function,  can optional SNMP card
8, Large-screen high-definition LCD Chinese and graphical display,6-inch extra large LCD that display 12 language( English/Russian/Spanish/French^)


Application:
1, centralized power supply for Workstations, Marge data centers department
2, Industrial automatic equipment, SMT chip mounter equipment
3,Transmitter station, control room, medical instruments
4,Factory production equipment
5,monitor , security systems, information center
6,Industrial and mining equipment, chemical industry, petrochemical production equipment


Protection against:
Power surges
High voltage spikes
Electrical line noise
Switching transients
Frequency variation


Competitive Advantages:
1: two Years' warranty for Online UPS.
2: Good after sales service, Professional technical support before and after sales
3: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
4: Free OEM & ODM Service
5: Competitive price and quality


If have any question,feel free to contact me!!!
