Product Specifications
Prod Model: |
JT01 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Application Range: |
Insulating Glass/Double Glass/Hollow Glass Product |
Certificate: |
CE&ISO |
Colour: |
Any Colour or as Your Required |
Button And Contact: |
Schneider |
Operation Air Pressure: |
0.5~0.8mpa |
Squeeze Pressure: |
12~15mpa |
Adjustable Range: |
4-20mm |
Feature: |
Man-Machine Interface Display Screen |
Operation: |
Easy to Operate |
Warranty Time: |
2 Years |
Type: |
Insulating Glass Production Line |
Certification: |
ISO |
Control System: |
PLC |
Product Description

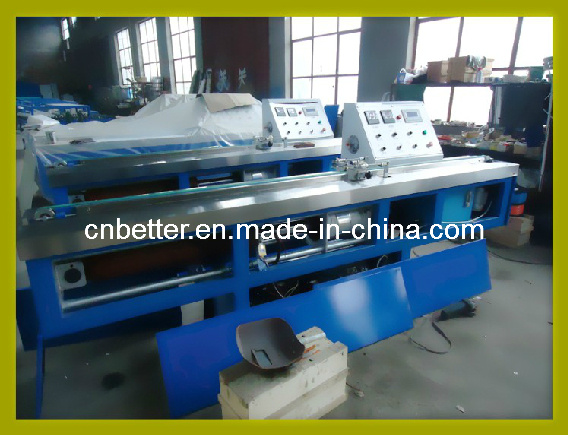

Double glass machine/Insulating Glass Machine/insulated glass butyl spreading machine (JT01)
Butyl glue coating machine/Butyl sealant glue extruder machine
Double glazing glass machine/Vacuum glass Butyl extruder machine / Double glazed glass sealant glue extruder machine / Insulated glass production line machine / Double glazing glass making line / Hollow glass fabrication machine
1. Product Description
1). The machine is the specialized equipment to apply the hot molten butyl sealant to both sides of the aluminum spacing frame uniformly.
2). The only thing the operator needs to do is to hold the aluminum spacing frame and all the other operations (rolling. Transfer. Etc. )can be completed automatically as programmed, and hence convenient operation, stable and reliable operation, good effects of sealant extrusion and high production efficiency, it is indispensable to dual seal double-glazing glass manufacturing.
3). Butyl glue is the double glass/insulating glass first layer sealant glue. If you make aluminum slot type insulating glass, you need coat two layer sealant glue, here the Butyl sealant glue is the first layer glue, use the Butyl glue extruder machine coat the glue on the aluminum spacer frame, the aluminum frame spacer with coated Butyl glue will make the double glass stick together tightly.
4). Before you buy the machine, please make sure then tell me your local power supply, then we can make the right according to your true voltage.
Kindly and friendly inform:
We have skilled engineers with well English ability in this field about 20 years, they can directly to give you any help on machines by calling or by video link or by email in short time, and before our machine reach your workshop, if you need we help you to design a drawing that tell you all machines should how to place in your workshop, we can help you to give you a drawing to give you suggestion in short minutes; And if you need we suggest you how many Squaremeters workshop is better for you, you can tell us your plan production, then we can tell your how many machines you needs, then tell you how much Squaremeters workshop is better for you.
2. Related All insulating glass production machines:
ST01 Two-component coating machine
SZT01 Rotary coating table
RDJ-B Hot melt glue machine
LB2500P Full automatic Vertical insulating glass produce line
LB2200P Full automatic Vertical insulating glass produce line
LB1800P Full automatic Vertical insulating glass production line
LB1600P Full automatic Vertical insulating glass produce line
LB1600G Semi-automatic Vertical insulating glass produce line
LB2500A Vertical washing glass machine
LB2200A Vertical washing glass machine
LB1800A Vertical washing glass machine
LB1600A Vertical washing glass machine
BX2500 Horizontal Glass washing machine
BX2200 Horizontal Glass washing machine
BX1800 Horizontal Glass washing machine
BX1600 Horizontal Glass washing machine
RY2500 Heating and roller pressing machine
RY2200 Heating and roller pressing machine
RY1800 Heating and roller pressing machine
RY1500 Heating and roller pressing machine
JT01 Butyl extruder machine
LY1600A Horizontal one on one rolling press machine
LY1600 Vertical one on one rolling press machine
SM95 Glass edge finish machine
JZT1600 Rubber application table
LW02 Semi-automatic alu-spacer bender machine
DFG02 Full-automatic desiccant filling machine
FGJ01 Common simple desiccant filler machine
LJ180 Alu-spacer cutting machine
LZD01 Alu-spacer-frame transfer machine
ZCJ02 Argon filling machine
Model number
|
JT01
|
Power supply
|
380V 50Hz
|
Total power
|
5kw
|
Transmit speed
|
7 m/min
|
Operation air pressure
|
0.5~0.8Mpa
|
Squeeze pressure
|
12~15Mpa
|
Adjustable range
|
4-20mm
|
Overall dimensions
|
3300×800×1400mm
|
Total weight(about)
|
850kg
|
