Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size/ Color: |
Customized |
| Open Style: |
Opening |
| Opening Pattern: |
Horizontal |
| Function: |
Dust-proof |
Product Description

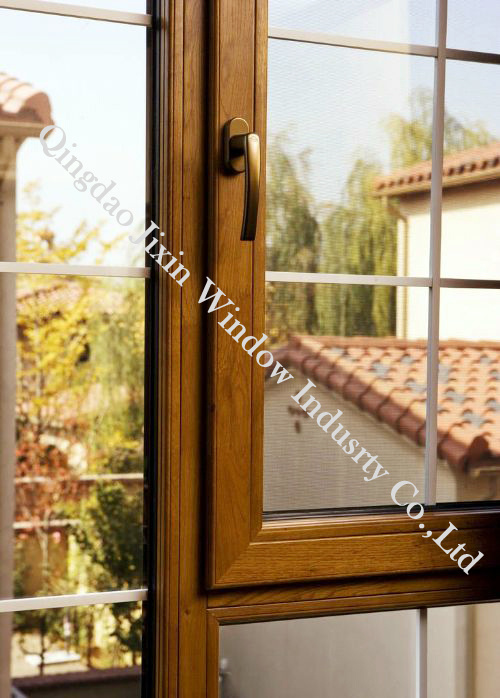

Double Glazed Timber Window Door
Timber window, with timber as main frame, is good at thermal insulation and noise insulation. Pure wood has the feature of environment protection and health.
1)Timber: Chinese/Russian pine, Chinese oak, US Oak int
2) Glass: Standard glass: 5+12A+5mm, touble tempered, double glazed glass. See more options below in the table.
3) Hardware: Germany brand Roto, Sigenia,
4) Paint: Germany brand - Remmers
5) Weather strips: EPDM rubber tape.
Every window is expertly crafted to accentuate the natural beauty of wood. Oka and Pine windows can perfectly complement your home's architecture, cabinets, furniture, floors
- Product Series:
JIXIN 68 Series Germany style Solid Wood Window
- Open the way:
Standard European notch can accomplish kinds of opening way including turning, tilting, turning & tilting, and bi-folding
- Applications:
Applicable to villas and high building
- Screens(Optional):
Fixed insect screen or aluminum rolling net screen
REFERENCE PICTURE:
|
Glass Options |
|
No. |
Specification |
Thickness |
|
1 |
5+12A+5mm, double tempered |
22mm |
|
2 |
5+12A+5mm, double tempered, single Low-e |
22mm |
|
3 |
5+12A+5mm, double tempered, double Low-e |
22mm |
|
4 |
6+12A+6mm, double tempered |
24mm |
|
5 |
6+12A+6mm, double tempered, single Low-e |
24mm |
|
6 |
6+12A+6mm, double tempered, double Low-e |
24mm |
|
7 |
5+6A+5+6A+5mm, triple tempered triple glazed glass |
27mm |
|
8 |
(5+0.76PVB+5mm)+9A+5mm , triple tempered, laminated double glazed glass |
24.8mm |
|
Remarks: Other options can also be customed if reasonable. |
Qingdao Jixin Window Industry Co., Ltd., was founded in the year of 2004. It's located in coastal city of Qingdao, Shandong Province, China.
Now it's a fast growing professional manufacturer of Pure Wood Windows & Doors, Aluminum Windows & Doors, Wood Aluminum Composite Windows & Doors, and. Our products has been exported to France, UK, South America, India, Canada etc.
We always believe honesty and trustworthiness is the basis of development and business. The company has been awarded "Provincial Excellent Private Enterprise" for years and several other awards. Our company is both SGS& ISO certified.
Welcome to inquiry more!
