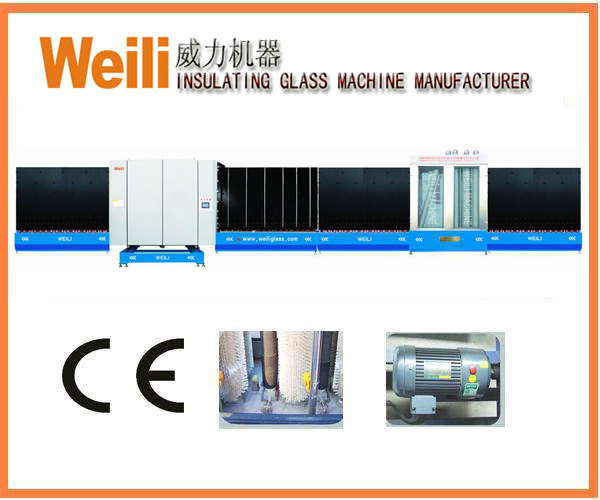

Glass machinery---LBW1600PB vertival ig production line
This production line comprises of the stainless steel washing machine, manual frame mounting station, automatic assembly, automatic flat press, and automatic tilting and shifting table. This line has been constructed in modular design to enable smooth adaptation of a higher degree of automation in the future.
Main Feature:
1, It is a completely automatic insulating glass production line.
2, Then entire machine adopts the PLC to control the working condition.
3, Adopts the imported vacuum generator and sucker, which made the suction effect to the glass much better.
4, The press section adopts the unique straight guide rail, fully guaranteed the parallel press effect.
5, Based on the customers' particular request, the entire machine can be improved and produce the Step IG Unit and Three Piece IG production(It is a special custom-made order).
Technical Parameter:
Power Supply:
| 380V 50Hz
|
Total Power:
| 19.50 Kw
|
Cleanout Speed:
| 2-10m/min
|
Max. Work Speed:
| 32m/min
|
Min. Glass Size:
| 450*450mm
|
Max. Glass Size:
| 2000*1600mm
|
Max. IG Thickness:
| 40mm
|
Air Consumption:
| 800L/min
|
Dimension:
| 13100*2350*2740mm
|
Total Weight:
| 3600Kg
|
Jinan Weili Machine Co., Ltd is the member of China Glass Machinery Equipment Committee and the National Insulated Glass Committee. The company is in the service of construction glass and glass-use industries. It is mainly specialized in producing door-window of energy and conservation insulated glass production line of curtain wall, and glass deep-processing equipment.
Since the company established, it holds the concept of innovation with technology, sincere service, being honest and reliable, it produced large quantities of first-class insulated glass processing equipments. The products sell well at home and abroad, and some were exported to the countries in Europe, America and Southeast Asia.
Jinan Weili Machine Co., Ltd is wildly accepted by customers from home and abroad.
New Century/ New Image/ New Weili.
Strong market competition consciousness.
Makes us always ahead of the advanced technology.
Honor acquirement, quality affirmation.
The most sincere service and the superior quality will offer to you.
Weili, in new image
Develop with you hand in hand to create the future.
Do business with whole heart, and treat others with great sincerity.
We regard honesty as the basis of the business, and sharing as the soul.
While we try our best to make each product perfect, We make efforts to become the giant of service. We respect the customers, understand them and communicate with them friendly. We regard the customers as our partner, and provide them with amazing service. To offer high-quality products and satisfying service is also to accomplish ourselves. We promise sincere service consent 100 years.
We believe when we deal in our products, we are dealing in trustworthy at the same time.
So be Weili, do business with whole heart, and treat others with great sincerity.
