Double Glazing Aluminium Windows, Awning Window with AS/NZS2208

Double Glazing Aluminium Windows, Awning Window with AS/NZS2208
Supplier: Guangzhou Tiansheng Building Material Business Department
Price: Negotiable/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,EXW
contact supplier

Product Specifications

Prod Model: TS-270
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Open Style: Swing
Opening Pattern: Vertical
Function: Invisible

Product Description

Double glazing aluminium windows awning window

1, clean design
2, Maximizing space and light
3, double seal European system
4, high performance of soud insulation.
Double glazing aluminium windows awning window

Aluminum awning window

Tiansheng double glazed Awning windows' special double seal European system is ideal for the places which need high performance of sound insulation, dust proof and waterproof. It is protected from the weather by a open outwards panel and keeps the rain on the outside.

On a practical level, Tiansheng double glazed awning window provide two open solution for you to choose - High quality chain winder and L handle for bigger opening space.

Tiansheng Awning Window winder mechanism is designed specifically for high performance, security and reliability. With our unique aluminium tube as a base for the winder, the windows can be open and close very smooth and stable. The other robust "L" shape handle also available for you if you want extra breathing and bigger opening space. Local key locks like LockSmiths can be fitted into Tiansheng Double glazed Awning Window.

Features of Awning window

1, 45mm frame width for standard awning system, 55mm width for thermally broken profile.
2, Fixed flyscreen for chain winder type and retractable screen for L handle type.
3, Optional key lock chain winder or key lock L shape handle.
4, Excellent ventilation control.
5, Provides superior weathproofing.
6, Quality anti-scratch protective wrapping is optionable for all Yokor products.
7, Glazing bar between the double glazing or attaching the surface is optional.
8. Gracious and elegant, yet practical and durable
9. For the chain winder type, the Maximum window height is 1900mm, max width is 900mm.
10, For the L handle type, the Maximum window height is 1900mm, max width is 1000mm.

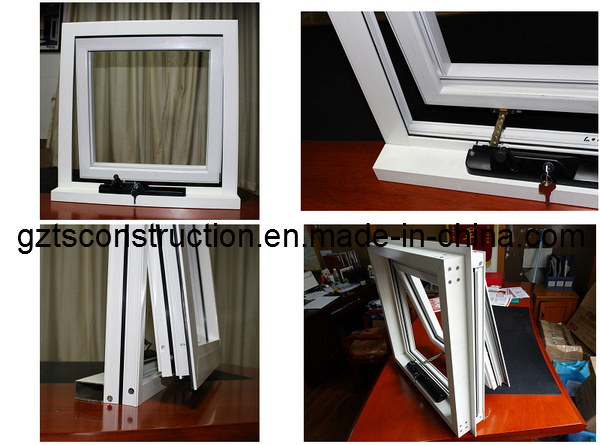

PHOTOS:

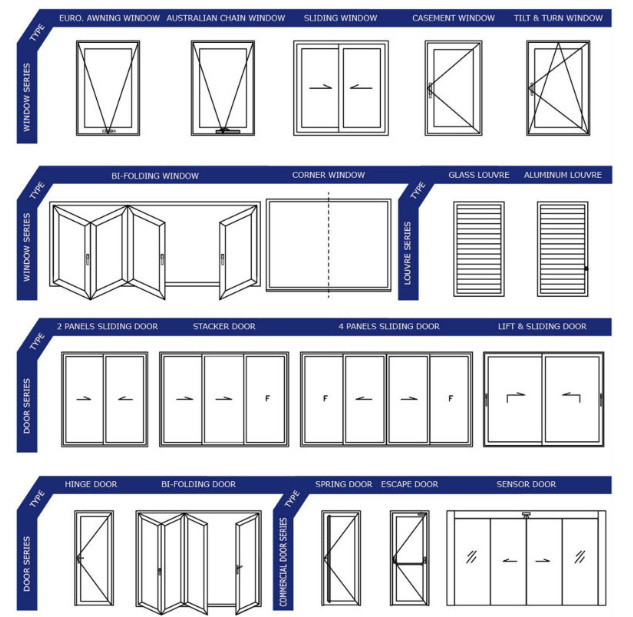

Design:

Color:

Product information


Name of Product


Aluminum awing Window


Profile Series


112 series thermal break profile


Profile Depth


112 mm


Profile Thickness


1.4mm


Finishing


Powder coating, Electrophoresis, Anodize and PVDF


Color Option


RAL Series, and Wood Grain, two option for inward and outward color


Glass Option


Tempered glass, Low-e glass, floated glass, refective glass, frosted glass, laminated glass and so on


Glass Thickness


5mm/6mm/8mm/12mm for single glass


Sealant


EPDM, PVC, Silicone Sealant


Hardware


Chinese top brand


Dimension


Measurement(width*Height) supplied by the clients or standard size


Fly Screen


Available


Item name


Aluminium Awning window with AS2047 standard


Aluminium profile

Standard aluminium profile with 1.4mm thickness.


Profile surface treatment


powder coated(with 70um thickness)

Anodized(with 15um thickness)

Electrophoresis(with 25um thickness)

PVDF(with 40um thickness)


Safety Glazing options


A: single glazed like 5mm or 6 mm glass

B: double glazed like 5+6/9/12+5mm.

C: Triple glazed like 5+9+5+9+5mm

D: Laminated glazed like 5+0.38/0.76/1.52+5mm

E: Low-e /tinted /frosted/obscure glazed


window seal


Rubber(EPDM) or silicone sealant.


Hardware


Black hardware is supplied as standard


Screen fly net


Nylon/Fiber glass/metal material


Window color


Any color is available


Packing


Cardboard and iron pallet


Lead time


6-8 week


Performance Parameters

( based on 00*00mm)

Ps: Parameters can be achievable

according to your requirement to

choose different Configuration.


1. Soud insulation: over 36 db
2. Wind pressure resistance:
3. Air permeation resistance:
4. Water resistance:
5. U-Value< w/m2. k


Tiansheng Industry & Trade (HK) Co., Ltd /Guangzhou Tiansheng Building Materials Co., Ltd is a professional manufacturer of windows, doors and curtain wall.

With so many years' experience, good quality, fast delivery time, best after-sale service, pretty competitive price and continuously development of new products, have established long-term business relationship with so many customers from all over the world.

Our mainly products are as followings: Windows and door, curtain wall, framless glass door, sun room/green house, wrought iron railing/fence/gate, garage door. Our products are widely applied in thousands of projects, including commercial & high-end residential, house, villas, school, hotel, hospital, offices. As our products are customized, please give your window/door measurements, drawings and requirements to us, we will provide you with the best solutions.

We are here waiting for your inquiries. If you are interested in our products, please don' t hesitate to contact us by sending inquiry or calling. We sincerely hope to establish business relationship with you from all over the world based on the principle of Mutual Benefits!
