Product Specifications
| Prod Model: |
TS-041 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Finishing: |
Finished |
| Position: |
Commercial |
| Wind Resistance Performance: |
4.5≤P3<5.0 |
| Section Bar Type: |
multiple-Cavity |
| Customized: |
Customized |
| Security Level: |
A |
| Color: |
Multi Color |
| Style: |
European |
| Opening Pattern: |
Vertical |
| Function: |
Insect-proof |
| Open Style: |
Sliding |
Product Description

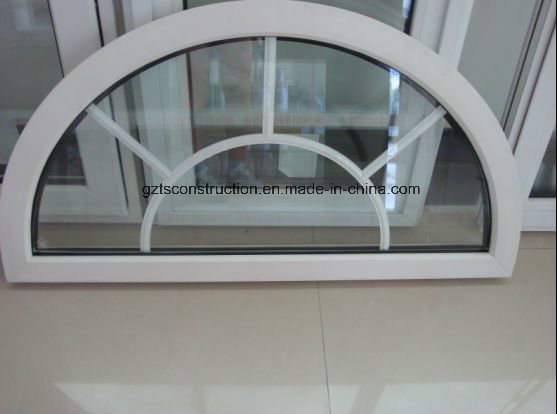

Double glazing Arched UPVC Windows with grille
1) European sliding window, can open with a big area. Smooth operation and convenient installation, with stainless steel window-screen, preventing mosquito and other winged insect.
2) Superior quality seals, waterproof, sound insulation and safe. The special catchments system design, keeps breeze from blow to result in rainwater and dusts enter.
3) To increase sash rolling and rail service life, aluminum rails are installed on the bottom frame.
4) Brush seals are used in sash profiles along whole length for protection against draught and driving rain.
5) Corners are welded 45 degrees and this gives aesthetic view to our products. Welded edges are resistant to vertical and horizontal forces according to international standards and with steel reinforcement, system provides a reliable protection against burglary.
6) Accessories are screwed into steel reinforcement, offering high security.
7) Kinds of glass available: L clear glasss, toughened glass obscure glass, single glass, double glasses.
8) Hardware: Imported or China famous brand with high quality
Why would you deal with us:
1). More than 100, 000 square meters per year production capability
2). We use high quality material: PMI and CONCH profile, ZNG glass and Kin Long hardware
3). We have exported to Australia, Italy, Brazil, India and Africa for more than 4 years.
4). We took part in Asian Game projects in Guangzhou as a subcontractor
5). We took part in Module house projects for BHP, FMG for Australian mining area as a subcontractor.
6). We are very close to Guangzhou Airport, half an hour driving. Very convenient to visit us.
|
Frame Material |
CONCH or SHIDE uPVC profiles |
|
Profiles surface treatment |
1. film attaching
2. extruded |
|
Profile wall thickness |
2.5 mm |
|
Profile colors |
White, grey, black, wood finish or other colors |
|
Glass |
1. Single glass 5mm/6mm/8mm
2. Double glass 5mm+9A+5mm/6mm+9A+6mm
3. Laminated glass 5mm+ 1.52pvb+5mm
4. Tinted, heat reflective or Low-E glass |
|
Hardware |
Chunguang hardware |
|
Sealing |
EPDM |
|
Grille/Colonial bars |
Optional |
|
Flyscreen/net/mesh |
1. Stainless steel
2. Nylon
3. Fiber glass
4. Diamond mesh |
|
Delivery time |
From 4 to 6 weeks |
|
Packing |
1. Plywood box full protection for Less than Container load (glass panels)
2. Paper wrapping corners for full container load
3. Plastic wrapping for frame without glass |
|
Payment term |
1. T/T in advance
2. L/C
3. Paypal
4. MoneyGram
5. West Union |
Tiansheng Industry & Trade (HK) Co., Ltd /Guangzhou Tiansheng Building Materials Co., Ltd is a professional manufacturer of windows, doors and curtain wall.
With so many years' experience, good quality, fast delivery time, best after-sale service, pretty competitive price and continuously development of new products, have established long-term business relationship with so many customers from all over the world.
Our mainly products are as followings: Windows and door, curtain wall, framless glass door, sun room/green house, wrought iron railing/fence/gate, garage door. Our products are widely applied in thousands of projects, including commercial & high-end residential, house, villas, school, hotel, hospital, offices. As our products are customized, please give your window/door measurements, drawings and requirements to us, we will provide you with the best solutions.
We are here waiting for your inquiries. If you are interested in our products, please don' t hesitate to contact us by sending inquiry or calling. We sincerely hope to establish business relationship with you from all over the world based on the principle of Mutual Benefits!
