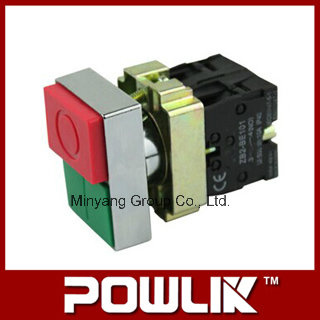

Double Head Push Button Switch (XB4-BL8425)
Product Specifications
| Prod Model: |
XB4-BL8425 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| .Fix Diameter: |
22mm |
| Frequency: |
50Hz |
| Voltage: |
220V/380V |
| Working Life: |
20000 Hours |
| Usage: |
Control Button |
| Kind: |
Single-pole on-off Switch |
| Type: |
No+Nc |
Product Description
Double Head Push Button Switch (XB4-BL8425 )1. Application
Used to either close or open an electrical circuit. Used in various applications such as electric power, telecommunication, machinery, marine, textile, printing, miningindustrial equipment, and etc
2. Working EnvironmentOperational voltage: ≤ 380V AC or ≤ 220V DC
Ambient air temperature -25° C~ +40° C
Altitude: ≤ 2000m
Relative air humidity: ≤ 90%
Pollution degree: Class 3
Protection degree: IP40. IP65 Waterproof type as request
Contact resistance: ≤ 50Mω
Mechanica durability: Momentary 1000, 000 maintained: 250.000
Electrical durability: 500, 000
3. Packing
1pc/white box, 20pcs/kraft box, 200pcs/carton
Carton size: 36*29*24.5mm | Model | Contact type | Color | Voltage | Remark |
| XB4-BL8325 | NO+NC | Red + Green | 220V | two button are flat,without light |
| XB4-BL8425 | NO+NC | Red + Green | 220V | red button convex,without light |
| XB4-BW8465 | NO+NC | Red + Green | 6-380V | directness style,with light |
| XB4-BW8475 | NO+NC | Red + Green | 220V | resistance style,with light |
| XB4-BW8445 | NO+NC | Red + Green | 220V | transformer style,with lignt |
| XB4-BW8455 | NO+NC | Red + Green | 380V | transformer style,with light |
Minyang Group Co., Ltd. mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.
MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.
MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.
MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
