Product Specifications
| Prod Model: |
TB-Q378D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

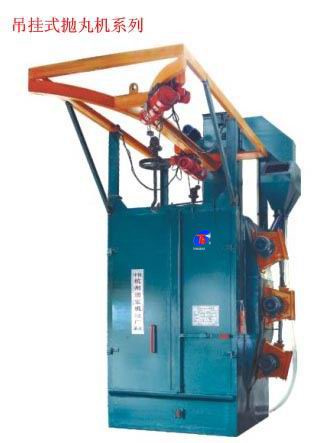

Hook type shot blasting machine
Detailed Product Description
How it works:
Hung work piece on the hook directly, and artificially brought to the front of the shot blasting room traction system that the hook run into shot blasting rooms automatically, blasting room will be shut down by pneumatic or manually. Hook for back and forth reciprocating motion and rotation in the room.
So that the work piece are fully projectile to reduce the projectile corner.
There are two hooks, one projectile in the shot room, the other can be loading and unloading the work piece
Shot processing time can be arbitrarily adjusted. Shot device Stop running, the door opened, it's easy to
Bring in and take out the piece, the dust be emission from the dust filters
This shot blasting machine suitable for cleaning or reinforcing various medium and large batch forged piece, casting and sheet metal parts but also more suitable for frosting surface after rust removal and increasing adhesive force of spraying.
No.
|
Equip.name |
Hanger type Shot blast |
Hanger type Shot blast |
Hanger type Shot blast |
Hanger type Shot blast |
Hanger type Shot blast |
Hanger type Shot blast |
|
Serial number |
Q375 |
Q378 |
Q3710 |
Q3720 |
Q3730 |
Q3750 |
|
1 |
Work piece dimension(mm) |
700*1000 |
800*1500 |
1000*1800 |
1400*2300 |
1850*2200 |
1800*2500 |
|
2 |
Max hang weight(kg) |
500 |
800 |
1000 |
2000 |
3000 |
5000 |
|
3 |
Hanger rotate speed(r/min) |
4.0 |
4.3 |
4.0 |
4.3 |
4.0 |
4.6 |
|
4 |
Steel pill Dia (mm) |
1-1.5 |
1-2 |
1-2 |
1-2 |
1-2 |
0.8-1.2 |
|
5 |
First loading quantity(kg) |
500 |
1000 |
1000 |
1500 |
2000 |
2500 |
|
6 |
Shot wheel type |
YH31 |
130 |
130 |
130 |
130 |
130 |
|
7 |
Power (KW) |
2*7.5 |
2*11 |
2*11 |
3*11 |
4*11 |
5*11 |
|
8 |
Raise capability (T/h) |
15 |
25 |
25 |
35 |
45 |
80 |
|
9 |
Raise power (KW) |
1.5 |
2.2 |
2.2 |
1.5 |
2.2 |
4 |
|
10 |
Blast capability (kg/min) |
120 |
170 |
170 |
170 |
170 |
170 |
|
11 |
Separator capability (T/h) |
15 |
25 |
25 |
35 |
45 |
63 |
|
12 |
Conveyor capability (T/h) |
|
25 |
25 |
35 |
45 |
63 |
|
13 |
Conveyor power (KW) |
|
|
|
1.1 |
1.5 |
2.2 |
|
14 |
Total vent amount (m 3/h) |
4500 |
6000 |
6000 |
85000 |
11000 |
18000 |
|
15 |
Total power (KW) |
17 |
29 |
29 |
51 |
61 |
78 |
|
16 |
Machine size (length*width*height)mm(for reference) |
2035* 1956* 3762 |
4500* 2450* 5100 |
4500* 2450* 5900 |
6100* 3599* 7842 |
6960* 3670* 7918 |
7060* 5460* 8650 |
