Product Specifications
| Prod Model: |
Beyond |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
SUS304/SUS316 |
| Volum: |
100L-10000L |
| Application: |
Water |
Product Description

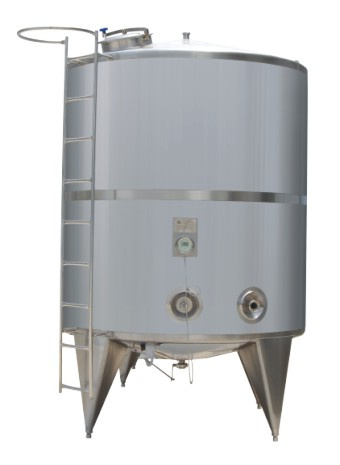

Double layer insulation tank
Use: Most applicable for storage and mixing of all kinds of liquid products in dairy products, juice, beer and brew, chemistry, and biology engineering;
Material: All material used is high quality SUS304-2B stainless steel, inner shell thickness δ =3mm and outer wall 2mm;
Structure feature: Isolated design(double layer), with 60mm PU as insulation; Cylindrical shape, triangle or cylinder legs.
Agitator types: Without agitator; Wing agitator; Anchor type; Propeller type; Frame type;
Standar attachments:
One air tight side manway;
Anti butterfly and dirt air vent;
One PT100 thermometer, temperature indication range 0~100 degree;
CIP cleaning ball;
Discharge valve with union;
One sanitary sample valve;
Product inlet/outlet
|
Model |
Diameter
(L) |
External diameter
( D ) |
Height ( mm )( H ) |
Insulation ( δ ) PU |
Diameter of inlet/outlet |
|
BYDG-500 |
φ500 |
800 |
2140 |
50 |
φ38 |
|
BYDG-1 |
φ1000 |
1050 |
2380 |
50 |
φ38 |
|
BYDG-1.5 |
φ1500 |
1180 |
2550 |
50 |
φ38 |
|
BYDG-2 |
φ2000 |
1340 |
2760 |
50 |
φ38 |
|
BYDG-2.5 |
φ2500 |
1420 |
2940 |
50 |
φ38 |
|
BYDG-3 |
φ3000 |
1540 |
3050 |
50 |
φ38 |
|
BYDG-4 |
φ4000 |
1650 |
3200 |
50 |
φ38 |
|
BYDG-5 |
φ5000 |
1780 |
3250 |
50 |
φ38 |
|
BYDG-6 |
φ6000 |
1900 |
3350 |
50 |
φ38 |
|
BYDG-8 |
φ8000 |
2100 |
3800 |
60 |
φ65 |
|
BYDG-10 |
φ10000 |
2300 |
4050 |
60 |
φ65 |
|
BYDG-12 |
φ12000 |
2520 |
4450 |
60 |
φ65 |
Shanghai Beyond Machinery Co., Ltd. is a professional machinery manufacturer based on technical developing. Combining with R&D, manufacturing, installation debugging and training, we are engaged in producing the liquid projects used in milk, ice cream, juice, drink, pure water and jam etc.
We have cooperated with the same occupations from domestic and international to introduce and develop many advanced procedures of manufacturing and designing.
We are always in pursuit of excellent projects with all our vigor.
Our main business:
1. Whole production line of dairy, beverage, juice, fruit and vegetable processing, ice cream, jam and pure water etc.
2. Single machine
(1) Stainless steel tank
(2) Pasteurizer
(3) CIP cleaning system
(4) Homogenizer
(5) Stainless pipe and valves
(6) Sanitary pump
(7) fruit washing, elevator, extractor, juice evaporator etc.
Comments:
Our company is a sizeable and advanced company. Our products sell well all over the country and are exported to markets worldwide. It is the preferred products for all food processing factories. We can offer customers timely and good services.
These years' experience enables us to provide our clients all stages of services from planning, design, production recipes and commissioning of turnkey plants to the after sales services.
We welcome your enquiry.
