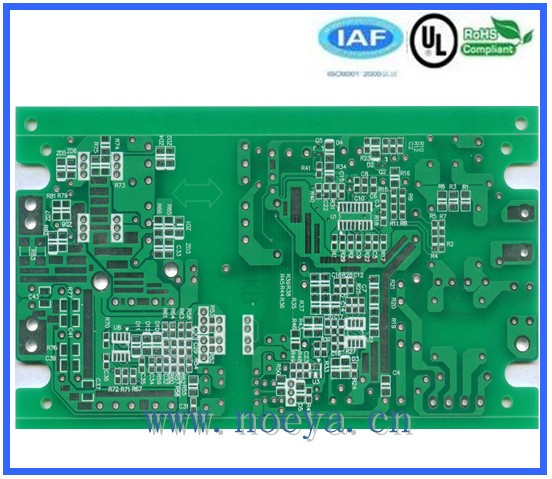

Double Layer Circuit Board

Name: Double Layer Circuit Board
Brand: china-manufacturer-directory.com
SKU: 699203545
Availability: InStock
Rating: 5 (111 reviews)

Supplier:	Shenzhen Noeya Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	50000/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	#NY-IR-0152
Markets:	North America,South America,Southeast Asia,Oceania,Mid East
Commodity:	Double Layer Circuit Board
Item No.:	#Ny-IR-0152
Base Material/Laminate Details:	1.6mm Fr-4(Tg135-140)
Board Size:	125.68mm*82.4mm/Panel
Finished Copper Weight/Thickness:	1oz
Soldermask Details:	Lpi Green
Silkscreen/Legend:	White
Surface Finishing/Treatment:	HASL/Immersion Tin(Pb-Free/Lead Free)
Type:	Rigid Circuit Board
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Dielectric:	FR-4

Product Description

Double layer circuit board:
Technical details:
1)layer count: 2 layer
2)material details: 1.6mm Fr-4(Tg135-140), 1oz finished copper weight
Min. Board thickness:
0.4mm for 2 layers and 4 layers
0.8mm for 6 layers

3)HASL/Immersion Tin(Pb-free/Lead free)
4)Min line width/spacing: 0.25mm
5)Min, Hole size(aperture): 0.28mm,
Hole tolerance: +/-0.05mm
Min. Solder bridge: 0.08mm
Dimension tolerance: +/-0.1mm

6)Outline/profile/contour: CNC Routing, milling+v-cutting
Drills: CNC
7)Lead time: 4-5 days for prototypes, 7-9 days for mass
Production
8)Certification: RoHS&UL

9)Application: LED lamps power

10)Board size details and panelized details:
Size: 125.68MM*82.4MM/PANEL
Panelized details: Each panel with 1PC
Breaking off strips: 2*5mm

11)circuit characteristic: Simple

Advantages:
1) Best quality and attractive price.
2)Best on time shipping
3)with E-test
4)Customer service
5)Instant quote
6)No minimum lot Requirements
(Prototypes and small qty are both acceptable for us)
7)Ultra modern manufacturing facility

Main markets:
Korea, USA, Australia

Hot-selling time:
Sep and Oct. In 2011, Mar and Feb. In 2012

Capacity:
8, 000sqm/month for 6 layers PCB;
10, 000sqm/month for 4 layers PCB;
12, 000sqm/month for 2 layers PCB;
15, 000sqm/month for 1 layer PCB- with Electrical Testing

NOEYA BARE PCB MANUFACTURING CAPABILITY
Item	Capability
1. Base Material	FR-4 / High TG FR-4 / 94HB/FR-1/CEM-1
2. Layers	1-6
3. Finised inner/outer copper thickness	1-6OZ
4. Finished board thickness	0.2-7.0mm
	Tolerance	Board thickness≤ 1.0mm: +/-0.1mm
		1< Board thickness≤ 2.0mm: +/-10%

		Board thickness> 2.0mm: +/-8%
5. Max panel size	600*600mm
6. Min conductor line width/spacing	Inner layers: ≥ 3/3mil
	Outer layers: ≥ 3.5/3.5mil
7. Min hole size	Mechanical hole: 0.15mm
	Laser hole: 0.1mm
	Drilling precision: first drilling	First drilling: 1mil

		Second drilling: 4mil
8. Warpage	Board thickness≤ 0.79mm: β ≤ 1.0%
	0.80≤ Board thickness≤ 2.4mm: β ≤ 0.7%
	Board thickness≥ 2.5mm: β ≤ 0.5%
9. Controlled Impedance	+/-5%
10. Aspect Ratio	15: 1
11. Min welding ring	4mil
12. Min solder mask bridge	≥ 0.08mm
13. Plugging vias capability	0.2-0.8mm
14. Hole tolerance	PTH: +/-3mil
	NPTH: +/-2mil
15. Outline profile	Rout/ V-cut/ Bridge/ Stamp hole
16. Surface treatment	OSP: 0.5-0.5um
	HASL: 2-40um
	Lead free HASL: 2-40um
	ENIG: Au 1-10U’ ’
	ENEPIG: PB 2-5U’ ’ / Au 1-8U’ ’
	Immersion Tin: 0.8-1.2um
	Peelable blue, green, yellow, RED, White, black mask
	Carbon ink
	Gold plating: Au 1-150U’ ’
17. E-testing pass percent	97% pass for the first time, +/-2%(tolerance)
	FQC-Physical Lab: Reliability tests
18. Certificate	ROHS UL: E159194 ISO9001: 2008 IPC SGS
Our equipments
1. Drilling workshop	4 drilling bits of drilling machine: 4 sets
	2 drilling bits of drilling machine: 2 sets
2. photo plotting workshop	Israel “ ORBOTECH” Photo Plotters
3. AOI	AOI machine
4. IPQC	“ OXFORD” CMI 700 Copper Thickness Tester
5. Impedance test	USA “ Tektronix” DSA 8200 Impedance Tester
6. Outline workshop	CNC routing machine: 7 sets
	angle-cutting machine
	V-cut machine
7. Testing Workshop	Surpass X-600: 2sets
	WTD FT-2808: 5sets
	WTD HV300: 1set
8. X-ray	X-ray machine
Acceptable file format
GERBER file, PROTEL series, PADS series, POWER PCB series, AutoCAD series.

Shenzhen Noeya Technology Co., Ltd. is a professional high-tech PCB manufacturer, which was built in 2003. Over years, our scale has been expanding: More than 300 workers, more than 1, 500m² For day-output, more than 500, 000m² For year-output.

Our main products mainly applied FR-4(TG135-170), CEM-1 and FR-1(94V0). The finished PCB boards including Single and double layer PCB, 4 layers PCB, 6 layer and 8 layer multilayer PCB, High Frequency PCB(HFPCB), HDI PCB, High density PCB with blind and buried-vias. Especially we are strong in single layer, double layer, 4 layers and 6 layers PCB board, which are widely applied in LED lightings, computers, Telecommunications, Auto, digital, home appliance and consumer electronics. Selling well both at home and abroad.

We've got a contingent of producing and sales team. With advanced processed devices and checking and testing technology. We are cooperating with much domestic and abroad branded business, like Gree, FOSS, BYD Auto and Gospell etc. We abide by the national laws and regulations, pay emphasis on environment and environmental production. We have already got ISO9001: 2000. Our products quality can meet IPC-A-600F \IPC-D-600G, MIL-STD-105D LEVEL II \and UL STANDARD. With strictly quality checking and strictly following-up the goods, supply exact lead time and quality products.

We will take a series of special training to improve our staff's professional skills and service quality and speed so that our management system can be enter into normalization and informationization.
