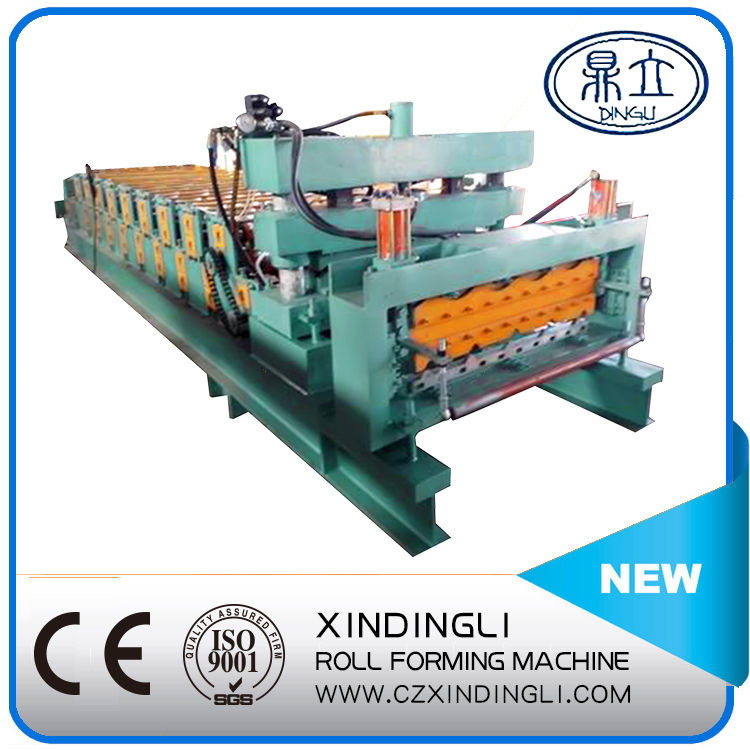

Double Layer Sheet Metal Roll Forming Machinery
Product Specifications
| Prod Model: |
XDL828-840 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
as You Desire |
| Width Of The Plate: |
1000mm |
| Control System: |
PLC Frequency Control System |
| Suitable To Process: |
Color Steel Plate, Galvanized Board, Aluminum Plat |
| Type: |
Double Deck Roof Sheet Roll Forming Machine |
Product Description

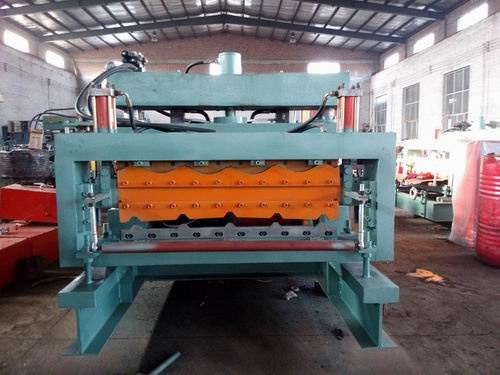

main machine of the double layer sheet metal roll forming machinery

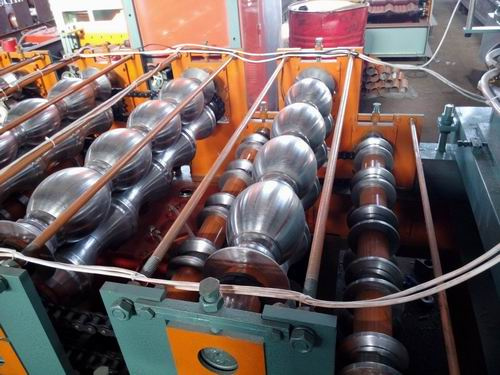

roller structure of double layer sheet metal roll forming machinery

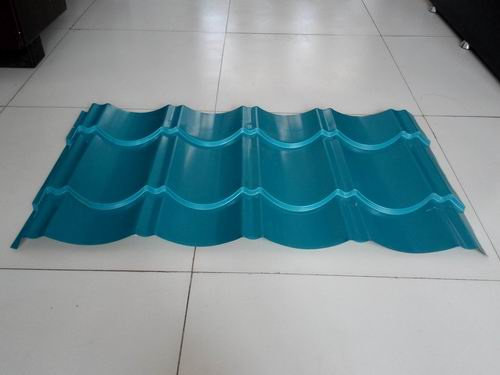

production sample
advantages of double layer sheet metal roll forming machinery1.High efficiency 2.Lower cost 3.long life time:30years4.Low energy consumption5.PLC control, Panasonic or Siemens or eura6.easy operation7.beautiful and best quality| No. | main parameter of Double-Deck Forming Machine |
| 1 | Suitable to process | Color steel plate, Galvanized Board, Aluminum Plate |
| 2 | Width of the plate | 1000mm |
| 3 | Rollers | Up layer:12 rows,
Down layer:11 rows |
| 4 | Dimensions | 7.8*1.5*1.6m |
| 5 | Motor Power
Oil pump power | 4+4kw |
| 6 | Thickness of the plate | 0.3-0.6mm |
| 7 | Productivity | Up layer: 0-3m/min,
Down layer: 8-10m/min |
| 8 | Material of the cutting blade | Cr12 |
| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 5.5T |
| 11 | Voltage | 380V 50Hz 3phases |
| 12 | Main frame | 300mmH steel |
| 13 | Control system | PLC Frequency ControlSystem with touch screen |
Cangzhou Xindingli Cold Bending Machinery was established in 2007. Our company is devoted to the development and manufacturing of metal plate cold bending roll forming equipment. Now we have a unique management system and product development capabilities and among the leading level of the same industry. Our products have the features of light structure and reasonable design, so more and more customers get the favour of our products.
Our main products are color steel roll forming machine, trapezoidal sheet roll forming machine, corrugated sheet roll forming machine, glazed tile roll forming machine, double layer roll forming machine, roll shutter door forming machine, c/z purlin machine for light steel structure building, floor deck machine, sandwich panel production line, fast guardrail forming machine, ridge cap forming machine and other automatic cold bending roll forming equipment.
The development and expansion of enterprises cannot leave the support and trust of customers. Our factory insists on the principle of "take the customer as the center, the customer first" principle, drawing customers valuable suggestions and opinions to improve our products and services.
Our factory adheres to the concept of "customer first, integrity management" and "pragmatic, high quality, innovation, development" spirit of enterprise to provide customers with satisfactory products and services and comprehensive technical support to let customers worry-free.
Welcome friends from all over the world to visit our factory and cooperate with us. We sincerely hope: You and I can have win-win relations and create a glorious future altogether.
