Hydraulic Car Lift

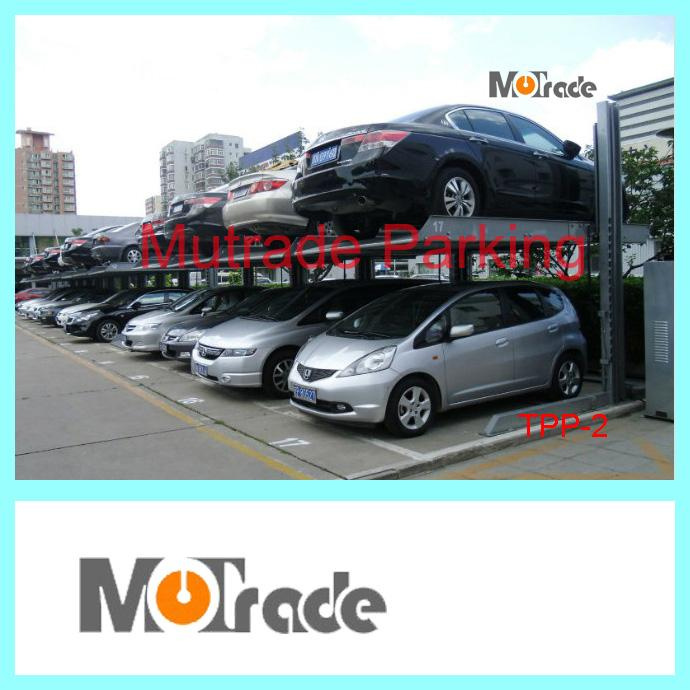

CE Hydraulic Car Lift Double Layer (TPP-2)
Introduction
1. TPP-2 series of products are Valet parking equipment.
2. TPP-2 series of products are all hydraulic direct drive system.
3. The system has an advanced post sharing feature, by sharing the middle post to save money and space.
4. According to the different usage, there are 3 models of TPP-2 available. They are TPP-2 (2 SUV), TPP-2 Li (1SUV 1 Sedan), and TPP-2 SLi (2 Sedan).
5. Single stage cylinder option available to save cost.
6. The power pack is available from 110V-420V, single/3 phase.
7. The control power is 24V.
8. Both dynamic and static locks are available.
9. Both outdoor and indoor versions are available.
10. Electric lock release is available.
Features
1. By sharing column, the total width of the product have different figure.
2. If your ceiling height is more than 4.4meters, we could use single stage cylinder to cut cost for you.
3. The standard system is powder coated with zinc cover plate, and can be galvanized for outdoor use.
4. Mechanical lock on both sides for safety.
5. Photocell sensor available for electric lock release type to check under car and avoid trespass.
6 Sound & light alarm during lowering the system. (Optional)
7. Electric protection for power over load or under voltage.
8. Auto locking system for power cut as safety features.
9. Emergency stop button.
10. Explosion relief valve make sure hydraulic safety.
11. Balance chain for platform synchronization.
12. Cylinder direct drive.
13. Overhead beam for more stability (Optional, recommend to use when install independent unit)
14. Zinc cover plate used for water-proof.
At MUTRADE, we now proudly present you our most popular simple parking equipment, the TPP-2 Series!
The TPP-2 Series products are 100% cut by Laser and more than 60% welded by robot.
Consumer product level finishing - We have the biggest and best powder coating line within the region and the finishing of our product is much better than the industry level.
Most reliable safety - We are offering the safest parking machine in the market, the equipment is built under the CE code and has more than 10 safety features to ensure safety of our clients.
Unique sharing feature - Our unique post sharing feature allows our clients to save cost and space during the installation.
Professional packing & delivery team - We have a very professional packaging and logistic team to ensure that our customers get the product damage free and unload easily.
Experience & life long support - We export most of the TPP products from China, and we have experience on the possible difficulties that you might face. Life long support would be provided to you free of cost during any such difficulty.
Fast and easy installation - With most of the parts pre-installed in the factory, it is very simple on install on site.
|
TPP-2 series |
|
Parking vehicles |
2 |
|
Lifting speed (seconds) |
<55 |
|
Power (hydraulic power in Kw) |
2.2 |
|
Drive mode |
Hydraulic cylinder direct drive |
|
Operation mode |
Key switch |
|
Lock releasing mode |
24V electrical lock release |
|
TPP-2 Standard model |
|
Lifting capacity (kg) |
2700 |
|
Lifting height (mm) |
2100 |
|
Anti-falling safety lock postion |
17 |
|
TPP-2 Li |
|
Lifting capacity (kg) |
2300 |
|
Lifting height (mm) |
2100 |
|
Anti-falling safety lock postion |
3 |
|
TPP-2 SLi |
|
Lifting capacity (kg) |
1800 |
|
Lifting capacity (kg) |
1800 |
|
Anti-falling safety lock postion |
3 |
Qingdao Mutrade Co., Ltd. is one of the earliest professional mechanical parking solution providers in China. We are committed to provide the most suitable and cost effective parking system solutions to our customers all over the world.
Hydro-Park is a subsidiary company and sub-brand built by Mutrade for high-end mechanical simple parking equipment. We develop, design and manufacture mechanical parking equipment with our own advanced technology and kept consistent high quality.
Our target is to become world class manufacturer with following competitive advantages:
Advanced Technology
Precise Manufacture Processing
Strong Service Support
Customer Oriented
For all the people who work in the mechanical parking business, if you are looking for a reliable partner in China, Mutrade is the one company you can not miss!
