Product Specifications
Prod Model: |
JH188 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Black,Blue,Red,Yellow |
OEM: |
Yes |
Customed Design: |
Yes |
Standard: |
Nonstandard |
Power: |
Hydraulic |
Structure: |
General Cylinder |
Pressure Direction: |
Double-acting Cylinder |
Material: |
Steel |
Product Description

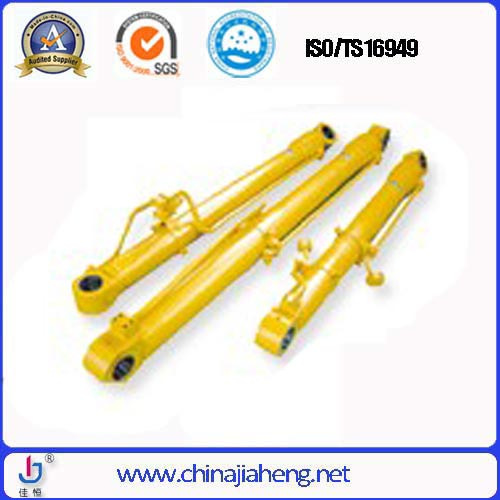

Double Piston Rod Hydraulic Cylinder With Double Acting For Tractor/Engineering Machinery/Agriculture Machinery
About Us
We produce hydraulic cylinder over 10 years. Now having all kinds of advanced equiments morn than 200 sets, such as: Hole grinding machine made in American, full-fuction CNC machine, computer checking platform and so on.
Single-acting hydraulic cylinder is our superstar production, it is recognised around the world for its good performance.
Good choice for our hydraulic cylinder
1. Merge together with Europe security idea
Our whole set hydraulic cylinder system with multi-protection can protect the safety of worker &truck and cargo.
2. Specialized system configuration
Specialized system configuration that greatly improve work efficiency and reduce system weight.
3. Custom made is available
We can design different hydraulic system for truck, lifting platform, construction machine, engineering machine, marine and so on.
Quality Control
1. Cylinder products from purchased materials, processing, assembly, have strict quality control. (we passed the certification of ISO/ TS 16949: 2009)
2. Automated cleaning equipment to ensure the cleanliness of fuel tank assembly.
3. Welding using CO2 arc welding and automatic girth welding, which ensure the welding
Quality of the seal parts
Advantage of our production
1. Use a new rolling technology to ensure the precision of cylinder inside hole is very high
2. The thickness of cylinder up to 16mm, it can meet the strength requirment when the truck is overloaded
3. The diameter of piston rod reachs 90mm, it will not bending under normal use
4. Use 3 seal-rings to seal piston rod, it can life-long use
Application of our hydrualic cylinders:
Container handling contstackers
Lifting and boom cylinders
Container handling lifttrucks
Industrial mobile cranes
Steering machines
Recycling presses
Machine tools
Mobile harbour cranes
Earth drilling machines
Loading-platform stabilizing cylinders
Truck cranes
Marine applications
Aerial platforms
Boom cylinders
Waste Compactors
Radial Gates and Hydroelectric Barriers Maneuvering
Model |
Tipping
(T) |
Press
(MPa) |
Close.Height
(mm) |
Volume
(L) |
Compartment
(mm) |
Rear overhang
( mm) |
Tipe angle |
4TG-E200 × 5390 |
50.3 |
16 |
1695 |
128 |
6800-7200 |
900 |
48 °-52 ° |
4TG-E200 × 5780 |
50.3 |
16 |
1792 |
137 |
7200-7600 |
900 |
48 °-52 ° |
4TG-E200 × 6000 |
50.3 |
16 |
1853 |
143 |
7600-7800 |
900 |
48 °-52 ° |
4TG-E200 × 6180 |
50.3 |
16 |
1897 |
147 |
7800-8200 |
900 |
48 °-52° |
5TG-E200 × 5780 |
46.5 |
16 |
1511 |
123 |
7000-7400 |
900 |
48 °-52 ° |
5TG-E200 × 6000 |
46.5 |
16 |
1551 |
128 |
7400-7600 |
900 |
48 °-52 ° |
5TG-E200 × 6180 |
46.5 |
16 |
1599 |
133 |
7600-8000 |
900 |
48°-52 ° |
Hubei Jiaheng Technology Co., Ltd located at Yunxian economic development. Our company is keen to develop and produce all kinds of hydraulic system products, hydraulic cylinder set, pump truck hydraulic(arm support and pump over), truck mounted crane cylinder, mining hydraulic prop, enlarge frame set and hydraulic system.
Our annual output value above 800 million yuan, anual production capacity of 220000 sets, front telescopic hydraulic cylinders achieve the ability 400units/day, with an annual 120000 units, abdominal lift hydraulic cylinder 40000units, verious types of pump amplitude, telescopic outrigger hydraulic cylinder 10000units, various types of loader, excavator hydraulic cylinders 50000sets.
"Jiaheng" brand hydraulic products has leapt to the leading position in domestic industry three consecutive years. Products reconginzed and praised by more than 100 China several well-known medium and heavy vehicle refitting enterpriese, established a strategic partnership, like XCMG, ZOOMLION, CIMC, SUNHUNK, FOTON, DONGFENG, CAMC, SINOTRUCK, LOXA, Iveco (Shanghai), North Benz. Jiaheng products has spread more than 30 provinces and exported to Russia, Ukraine, Philippines, Thailand, Pakistan, Kazakhstan, Korea and some Middle East countries.
Jiaheng welcome your inquire and visit.
