Product Specifications
| Prod Model: |
3008-B-TVH |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Separated: |
Separated |
| The Number Of Rows: |
Single |
| Rolling Body: |
Ball Bearings |
| Outer Dimension: |
260mm |
Product Description

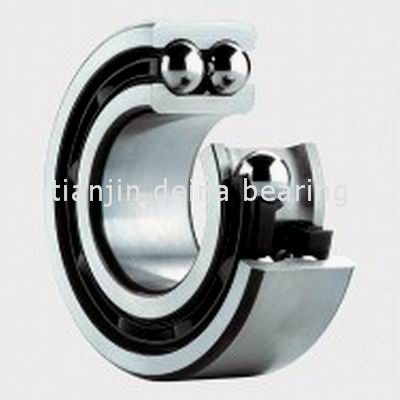

Double row angular contact ball bearing 3008-B-TVH
1)Description:
*Double row angular contact ball bearings are units with solid inner and outer rings and ball and cage assemblies with polyamide, sheet steel or brass cages. Their construction is similar to a pair of single row angular contact ball bearings in an O arrangement but they are narrower to a certain extent. They differ in the size of the contact angle and the design of the bearing rings.
*The bearings are available in open and sealed designs. Due to the manufacturing processes used, open bearings can have turned recesses in the outer ring for seals or shields. Sealed bearings are maintenance-free and therefore allow particularly economical bearing arrangements.
*Double row angular contact ball bearings can support axial forces in both directions and high radial forces. They are particularly suitable for bearing arrangements where rigid axial guidance is required.
2)Product Features
*Optimised internal design
*load ratings
*Increased limiting speed
*High strength ball
*High dimensional and running accuracy
*Narrow axial clearances or preloads range
*Universal facing in standard
3)Product Benefits
*Long life
*Reduced heat generation, vibration and noise
*Easy handling and installation due to universal facing
*high speed ccnpacity
4)Dimension:
Inner Diameter 40mm
Outside Diameter 68mm
Thickness 21mm
|
Model |
d |
D |
B |
|
mm |
mm |
mm |
|
30/5-B-TVH |
5 |
14 |
7 |
|
30/6-B-TVH |
6 |
17 |
9 |
|
30/7-B-TVH |
7 |
19 |
10 |
|
30/8-B-TVH |
8 |
22 |
11 |
|
3000-B-TVH |
10 |
26 |
12 |
|
3001-B-TVH |
12 |
28 |
12 |
|
3002-B-TVH |
15 |
32 |
13 |
|
3003-B-TVH |
17 |
35 |
14 |
|
3004-B-TVH |
20 |
42 |
16 |
|
3005-B-TVH |
25 |
47 |
16 |
|
3006-B-TVH |
30 |
55 |
19 |
|
3007-B-TVH |
35 |
62 |
20 |
|
3008-B-TVH |
40 |
68 |
21 |
Tianjin DeINA Bearing Sales Co., Ltd, has been in manufacture/research/development of bearing & bearing components for 15 years
The main products includes:
-----Ball bearing: Deep Groove ball bearings, Thrust ball bearings, Angular contact ball bearings, self aligning ball bearings, Insert Ball Bearings
-----Roller bearing: Spherical roller bearings, Tapered roller bearings, Cylindrical roller bearings, Needle Roller Bearings, CARB Toroidal roller bearing
-----Other bearings: Spindle Bearings, Bearing housing, Pillow block bearing, Bearing Ball, Miniature bearings and Adapter Sleeves.
Our manufacture range is from 8mm to 3 meters, and we have large stock at present. The material we mainly using includes Chrome Steel GCR15, high Carbon Steel GCR11 and stainless steel.
Our bearings successfully used in some of the following fields: Automotive Trucks, Railways, Shipping, Mining, Steel Industries, Petrochemicals, Power generation including Agricultural machinery, Textiles, Outer Space Fight, Civil & Military aviation.
With advanced technology and fine product quality, for the last 5 years international trading, Our products are of good reputation & well sells to Mid-East, North & South American, European, & Asia Countries etc, And got good reputation.
"Trust is no boundary, friendship is no boarder" we welcome any end user/agency/OEM/ODM projects. DeINA- be your trust.
