Product Specifications
| Prod Model: |
DS32-III |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Type: |
Snack Food |
| Manufacturing Process: |
Extruded |
| Ingredient: |
Grain |
| Material: |
Stainless Steel |
| Type: |
Food Machinery |
Product Description

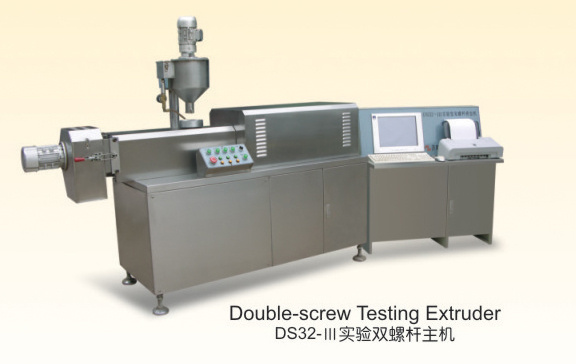

Double-Screw Testing Extruder (DS32-III)
The equipment is a kindof multifunction extrudethat combines the peculiarity of various single and double screw extruder and can meet different craft reqiements, It can adjust conveniently water, pressure, temperature, rotate speed etc. Parameters on process of extruding and show by figure.
Different screw combination and slenderness ratio solve the difficulty of the combination of theory and the practice in teaching and science study. It changes the actuality of controlling by experience. It has received a lot of praises of the colleges and science study units.
Main features:
1. Monopoly design, the first minitype multifunction twin-screw inflating machine in China.
2. Use Φ 32mm screw according to different material and product character, use many screws/machine barrels of different length combination and finish manifold extruder experiments.
3. Multi-point temperature control and pressure measure point.
4. Advanced touching screen, HMI and help system. Temperature and electric machine are controlled by high performance PLC and display a lot of real time parameters and record working status of each equipment and print and output.
Parameters:
Input voltage 380V/50Hz
Output 10-15kg/h
Feeding power 0.18kw
Driving power 4--7.5kw
Cutting power 0.25kw
Heating power 2.1-3.5kw
Oil-pump power 0.12kw
Dimension 2.0*0.6*1.5m
JINAN SAIXIN MACHINERY Co., Ltd. is always the professional manufacturer and leading company for advanced and high efficient extrusion food machinery in this field. JINAN SAIXIN MACHINERY company congregates an expert team, which has over twenty years experiences in this industry. JINAN SAIXIN MACHINERY Co., Ltd work hard to explore constantly not only in the research of extrusion technology, but also in food technics, to benefit our clients producing newfangled food in their local markets.
With our many years research and development, extrusion technics has been widely used in more fields. Jinan Saixin Machinery consist of core filling extrusion snack machine, Tortilla corn chips machine, bugles machine, twin screw extruder, food extruder, breakfast cereal and corn flakes machine, pet food machines and floating fish feed machinery, dog chewing food machine, aquarium fish feed machines, textured soya protein machine, modified starch machine, artificial rice machine, bread crumb machine, single screw extruder, potato chips machine, instant noodle machine and biscuits machine, instant flour machine, flat bread machine, ect. We can also provide special design and product according to our clients` special requirements.
JINAN SAIXIN MACHINERY company has two core competencies:
Firstly we develop innovative applications of food extrusion technology and follow up with complete product development.
Secondly, we design and produce food extruders and all related machinery required for the production of extruded snacks, breakfast cereals, co-extruded products, flat bread, instant flours, pet food, fish feed, animals feed, modified starch, etc.
