Product Specifications
| Prod Model: |
SGR-184 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Double Sided PCB Circuit Board with HASL |
| Surface Finished: |
HASL,OSP,etc |
| Soldermask: |
Green, Black, Yellow etc |
| Silkcreen: |
White, Black, Red etc |
| Certification: |
UL,RoHS,CE |
| Testing: |
Open/Short Testing,E-Testing,Aoi |
| Pth Assembly: |
Support |
| Reflowing Soldering: |
Support |
| Wave Soldering: |
Support |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Paper Phenolic Copper Foil Substrate |
| Flame Retardant Properties: |
V0 |
| Brand: |
Sograce |
Product Description

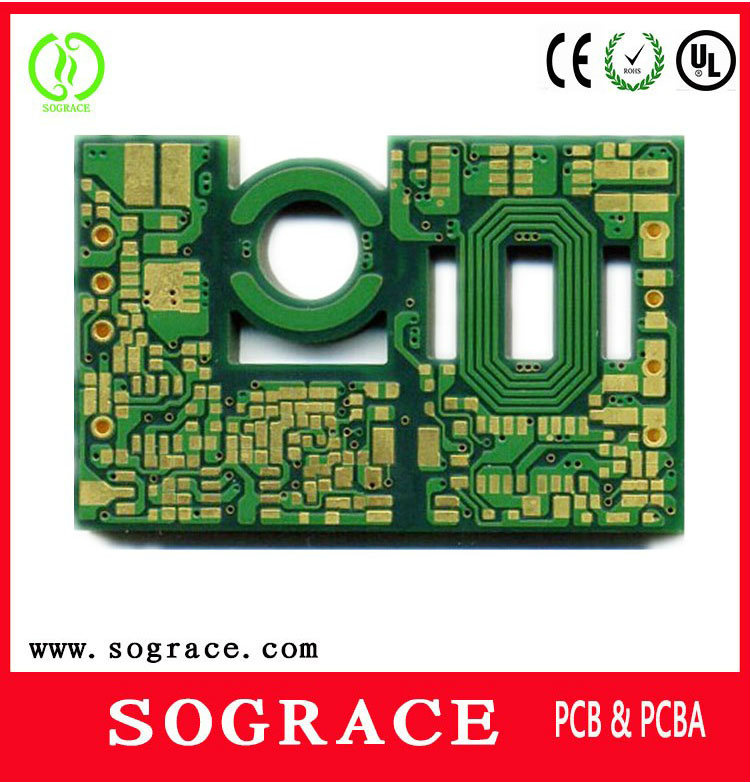

Our Products: Double sided PCB circuit board with HASL
PCB and PCBA Capabilities:
1) Single-sided, doubled sided and multi-layer PCB with competitive price, good quality and excellent service
2) CEM-1, FR-4, High TG FR-4, Aluminum base material
3) HAL, HASL, HASL Lead Free, Immersion Gold/ Silver/ Tin, OSP
4) Printed Circuit Board is 94V0 compliant, and adhere to IPC610 Class 2
5) Quantity ranges from prototype to medium batch production
6) 100% E-Test
7) SMT( Surface Mounting Technology ), COB, DIP
8) Material source service, one-stop service
9) SMT assembly and Through hole insertion
10) IC programming and Burning on-line
11) Function testing as requested
12) Complete Unit assembly, includes plastic, metal box, coil, cable etc
13) Packing design
Gold Finger
Production Capacity: 200000 square meters per month
(Base on 4 layers by Counting)
Marketing Share: Overseas 60%; Domestic 40%
Profession builds the quality, Credit wins the market!
This is the largest PCB manufacturer sograce from China. We specialize in manufacturing high-precision single, double and multilayer circuit board, metal PCB and CEM-3 high heat conducting PCB and supports SMT/AL processing and assembling.
Since founded in 2008, we own two two large production. Staffed by 2000+ employees. Our core competitive advantages are top advanced R&D design capability, high quality control with full set of automatic machines, good price with best services.
We now have long-term relationship with Philips, Sumsung, Hisense, Osram, Skyworth, Lexstar, Emerson, Gree, Uni, I-Chiun, Everlight, JF, Changhong, Refond, KTC, Longhorn, Nationstar, etc.
If you want your product prices more competitive, if you want your product more powerful, please don't hesitate to contact with us for further.
|
Factory Manufacture Capability |
|
NO |
ITEM |
Techinical capabilities |
|
1 |
Materials |
Aluminum CEM-1 CEM-3 FR-4 High-TG Rogers etc. |
|
2 |
layers |
1-16 layers |
|
3 |
Min. core material |
5mil(excluding copper) |
|
4 |
Prepreg type |
7628 2116 1080 3313 |
|
5 |
Max. board size |
520*720mm |
|
6 |
Copper thickness |
min. base copper 1/3 OZ |
|
max. finished copper6OZ |
|
7 |
Min. board thickness |
2- layer 10mil |
|
4- layer 16mil |
|
6-layer 24mil |
|
8-layer 32mil |
|
10-layer 40mil |
|
8 |
Max. board thickness |
236mil(finished board thickness) |
|
9 |
Min. line width/space |
3mil/3mil HOZ copper base(inner layer) |
|
10 |
Min. hole size |
8mil |
|
11 |
PTH wall thickness |
≥ 1mil |
|
12 |
Hole dia. tolerance |
± 3mil |
|
13 |
Hole dia. tolerance |
± 2mil |
|
14 |
Countersink hole |
Min. depth(D)6mil; The Depth of tolerance± 6mil |
|
15 |
Drilling hole positional deviation(outer layer) |
1st-drill ± 3mil(Normal) ± 2mil(min. ) |
|
2nd-drill ± 4mil |
|
16 |
Min. solder mask bridge |
3.2mil(HOZ base copper, green) |
|
17 |
Outline tolerance |
± 4mil |
|
18 |
Twist & Bow |
≤ 0.75% |
|
19 |
Peelable mask thickness |
≥ 8mil 1 printing |
|
20 |
Insulation Resistance |
> 1012Ω Normal |
|
21 |
Through hole
resistance |
< 300Ω Normal |
|
22 |
Current breakdown |
10A |
|
23 |
Peel strength |
1.4N/mm |
|
24 |
S/M abrasion |
> 6H |
|
25 |
Thermal stress |
28 degrees 20Sec |
|
26 |
Test Voltage |
20-300V |
|
27 |
Min. blind/burried via |
8mil |
|
28 |
Surface finish |
HAL ENIG IMAG IMSN OSP HAL+G/F ENIG+G/F |
|
29 |
Impedance control |
Single ended impedance 50Ω /70Ω ± 10% Normal |
|
Differential impedance 90Ω /100Ω ± 10% Normal |
|
30 |
Max. aspect ratio |
12: 1 |
Sograce International Corporation Limited is a professional PCB manufacturer for producing all kinds of single side, double-side and multilayer PCB, and as well as assembly service.
Established in June, 2006, our factory is located in Wanxia Industrial zone, Xinhe Road, Shajing Town, Baoan district, Shenzhen, China. We have a variety of advanced production equipment, excellent engineering and technical personnel, accompanying with the mature management and service system. Since 2006, we have successfully serviced customers in the United States, Canada, Western Europe and other regions of the world spanning many applications, business lines, and industry sectors.
Since establishment, we have been constantly improving all kinds of equipments and advanced techniques, striving to develop and produce PCB and PCBA which are used for high-tech products, such as LED, communication, network, electric power, industrial control, medical treatment, instrumentation, military projects and computer peripheral products ect.
Our products meet IEC\IPC\DIN\MIN standard, and behave ISO-9001 quality system, UL and RoHS certificate. Fast lead time and competitive price with high quality are our advantages. Production capacity is 20, 000M2 per month, the PCB lead time is within 10days, and most can be within 7days. We also established a prototype team to meet customer' S prototype needs, and the prototype lead time often can be within 3days.
With our hard work, we always satisfy the customers' High quality demand in a fast lead time under our strict management...Following the principle of "be sincere with every customer", we treat the product quality as our life. We are glad to provide you one-stop services from schematic capture and routing, PCB producing to SMT.
"High quality, Competitive price and Excellent service" is our mission which also wins the customers' Trust. Our purpose is to produce the most effective product under the advisable cost. All our consideration is built on customers' Benefit, and we benefit mutually from the business cooperation. Basing on this point, we have built a long term business relationship with lots of customers around the world, just like a blooming flowers. Warmly welcome more customers to visit and cooperate with us!
