Double Sided Printed Circuit PCB Board with UL, Sira, SGS

Name: Double Sided Printed Circuit PCB Board with UL, Sira, SGS
Brand: china-manufacturer-directory.com
SKU: 705254162
Availability: InStock
Rating: 4.9 (39 reviews)

Supplier:	SHENZHEN HYY TECHNOLOGY CO., LTD.
Price:	US $ 0.2-0.9/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	HYY11401
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania
Specail Hole:	No
Type:	Rigid Circuit Board
Flame Retardant Properties:	V0
Material:	Aluminum
Dielectric:	Aluminum Base Board
Brand:	Hyy

Product Description

Product Description:

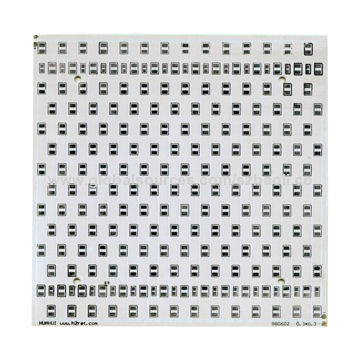

UL Approved PCB board

Board material: Aluminum
Board thickness:1.0 mm
Copper thickness:1oz
Thermal conductivity: 4.0W/MK
Withstanding voltage:2000V
Solder resist:White
Surface finishing: HASL
Special drill hole: NO

Certification:

Details:

Partners:

Factory Manufacture Capability:

Factory Manufacture Capability
NO	ITEM	Techinical capabilities
1	Materials	FR-4, CEM-3, Al Base, Cooper Base.
2	Material Type	TOTKING T111, EASTPOWER EPA-M0
3	Layers	1 Layer
4	Min. core material	PP
5	Max. board size	600mm *1200mm
6	Copper Thickness	1-4 OZ
7	Min. board thickness	0.5 mm
8	Max. board thickness	5.0 mm
9	Min. line width/space	0.1mm
10	Min. Letter line width	0.15mm
11	Min. Letter height	0.8mm
12	Min. hole size	0.75mm(NPTH)
13	Hole dia. tolerance	±0.05mm
14	solder Mask	White, Black, Green
15	Outline Tolerance	±0.15mm
16	Modeling	Punching, Routing, V-cutting
17	Special Hole	Blind hole, Blind slot, T-hole, T-slot, Counter sink hole, Cup hole
18	Peel Strength	>=1.3N/mm
19	Thermal Stress	288ºC, 2min
20	Thermal Conductivity	>=2.0 W/m-k
21	Thermal Resistance	≤0.55 ºC/W
22	Test Voltage	5 V
23	Surface Finish	HAL , OSP , Immersion Gold
24	File Format	Gerber , DPF, HPGL,CAM,DXP,CADM,PADS
25	Dielectric Breakdown	>=2.5 KV
26	Max. Package Size	1200mm*600 mm

SHENZHEN HYY TECHNOLOGY Co., Ltd is a professional company engaged in developing and manufacturing single layer, double layers aluminum based PCB, copper based Printed Circuit Board (MBPCB/MCPCB)

With an investment of over 1.3 million US dollars, HYY TECH quickly grew to a point prominence in the industry, boasting an ultra-modern 4500 square meter manufacturing facility and a highly skilled team of 150 working staff, engineers, and technicians dedicated to producing and marketing state-of-the-art printed circuitry products world-wide. With a monthly production capability of 8, 000 square meters of circuitry, HYY TECH is poised to meet nearly all customer needs - small, medium, or large.

HYY TECH produces various types of high precision, Metal base printed circuit boards. Use and application of HYY TECH circuitry include and range from communication equipment, industrial control/Power, LED TV, instrumentation, automotive to consumer and industrial electronics and so on.

Certifications and international standards include US UL Certification, IS09001: 2008 Management System Certification, and 14001: 2004 Environmental Management System Certification. All products are subject to meeting and performing under IPC -A-600G standards.

HYY TECH proudly announces it value-added staff and personnel qualifications dedicated to producing high quality products and services essential to being a world leader of Metal printed circuitry.
