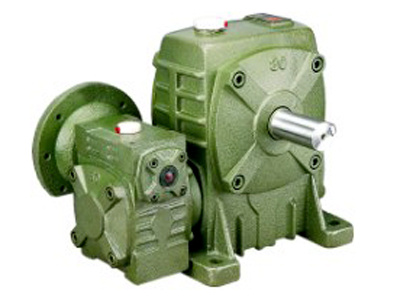

Double Stage WP Series Worm Reducer Gearbox

Name: Double Stage WP Series Worm Reducer Gearbox
Brand: china-manufacturer-directory.com
SKU: 610606354
Availability: InStock
Rating: 4.4 (75 reviews)

Supplier:	Shanghai Goldgun M&E Hi-Tech Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	WPEA type
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ratio:	1: 200-1: 900
Color:	Green
Housing Material:	Cast-Iron

Product Description

Shanghai Goldgun aims at "a professional supplier of transmission equipments and parts" when founded in July 2003. Under the guidance of this ultimate goal, it upgrades step by step.
Our products include:
1. Helical Gearbox / Geared Motor
2. Right Angle Shafts & Parallel Shafts Hardness Gearbox
3. Cycloidal Reducer
4. Worm Reducer
5. Variable Speed Reducer (stepless reducer) (0.12kw-7.5kw)
6. E-motor
7. Planetary Gearbox
8. Door Opener
9. Bearing and Coupling
10. Inverters
Above products are widely applicated in chemical, metallurgy, mining, cranes, cement, conveyors, paper, rubber&plastic, printing&dying, textile, food, woodworking, glass, environment protecting and other machine equipment fields.

We will take the conception of " professional, concentration, quality, innovation". With scientific management, professional team, conscientious attitude, and rich experience, we have the confidence of providing you quality products and service.

Your satisfactory would be our forever seek!

Size	Inpower kw	Ratio	A	AA	AB	B	BB	BE	CD	E	F	G	H	LL	M	N	Z
40-60	0.12	1/200 1/300 1/400 1/500 1/600 1/800 1/900	258	182	112	186	110	76	100	105	120	18	195	120	130	150	11
50-80	0.18		314	209	139	224	140	84	133	135	180	18	268	163	170	220	15
60-100	0.37		363	241	161	255	163	92	160	155	220	20	330	200	190	270	15
70-120	0.37		429	275	195	295	185	110	190	180	260	25	395	240	230	320	18
	0.75		449	295
80-135	0.75		505	330	230	338	210	128	215	200	290	30	455	270	250	350	18
	1.5
100-155	1.5		565	365	265	397	252	145	235	220	320	32	493	290	280	380	20
	2.2		590	390		401		149
120-175	2.2		635	415	290	444	262	182	280	250	350	37	558	335	310	410	20
	3.0
135-200	3.0		691	448	323	505	305	200	310	290	350	45	620	375	360	435	22
	4.0

Size	Flange						InPut Hole			OutPut shaft
Size	LA	LB	LC	LE	LG	LZ	Q	U	T× V	LS	S	W× Y
40-60	115	95	140	5	10	M8	25	11	4× 12.8	50	22	7× 4
50-80	115	95	140	5	10	M8	25	11	4× 12.8	65	32	10× 4.5
60-100	130	110	160	5	12	M8	35	14	5× 16.3	75	38	10× 4.5
70-120	130	110	160	5	12	M8	35	14	5× 16.3	85	45	12× 4.5
70-120	165	130	200	5	15	M10	45	19	6× 21.8	85	45	12× 4.5
80-135	165	130	200	5	15	M10	45	19	6× 21.8	95	55	15× 5
80-135	165	130	200	5	15	M10	55	24	8× 27.3	95	55	15× 5
100-155	165	130	200	5	12	M10	52	24	8× 27.3	110	60	15× 5
100-155	215	180	250	5	15	M12	62	28	8× 31.3	110	60	15× 5
120-175	215	180	250	5	18	M12	65	28	8× 31.3	110	65	18× 6
135-200	215	180	250	5	18	M12	65	28	8× 31.3	125	70	20 × 7
