Double Surface Spraying Etching Machine

Name: Double Surface Spraying Etching Machine
Brand: china-manufacturer-directory.com
SKU: 689561562
Availability: InStock
Rating: 4.9 (131 reviews)

Price:	US $ 5800-6800/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

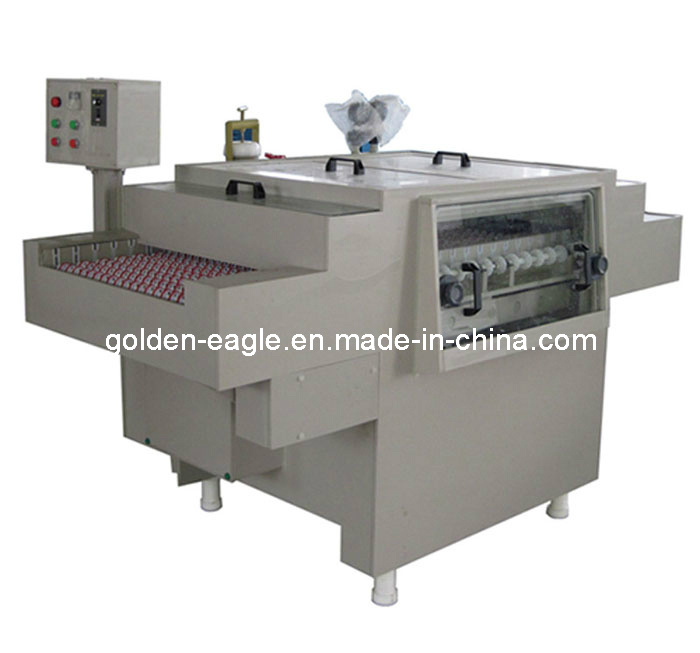

Double Surface Spraying Etching Machine

Model	S650
Power	5.5KW/220V/50HZ
Working width	650mm
Etching area	650*1000mm
Etched type	Double Spray
Working Temperature	37~45°C
Heat System	Titanium,3KW
Cool System	PE cooling Pipe,25 meter
Vertical Pump	2.2KW/220V/50HZ
Spray pipe	14pcs ,for up and down
Nozzles	Fan-shaped,91nozzles
Tank volume	200Liters
Machine Size	215013501250mm
Weight	About 450kgs

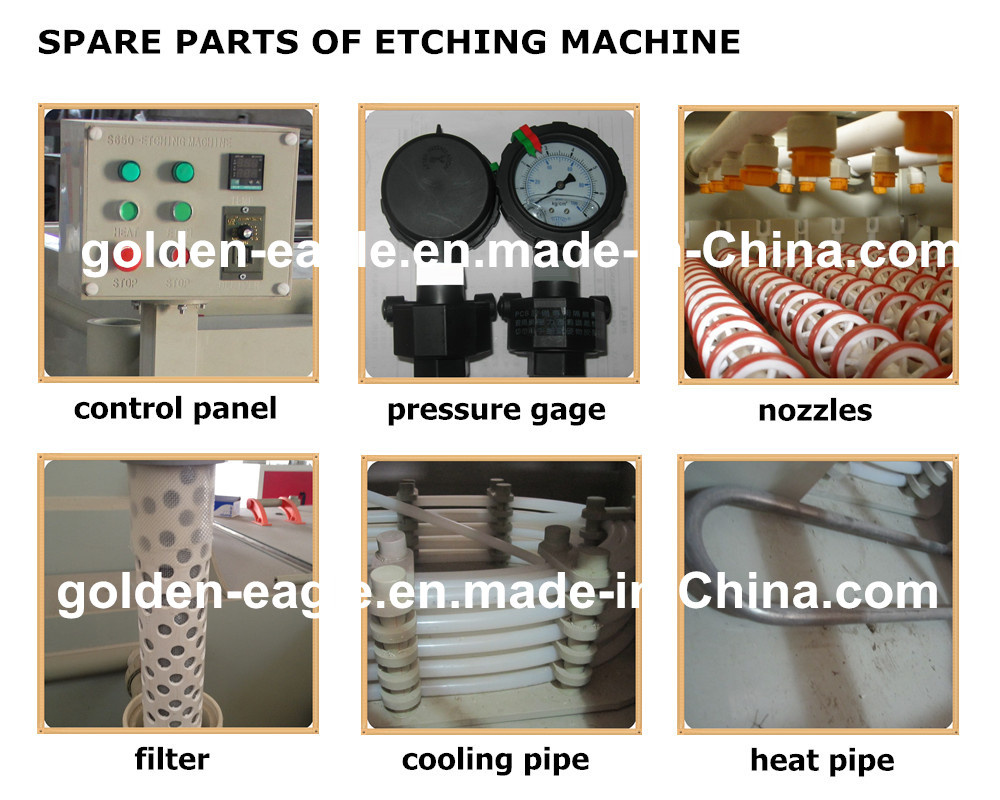

Automatic Control System:
Speed adjust system
Pressure Adjust System
Temperature control system
High temperatures resist (0~100°C) German PP material
Double Net Filter System
Long times Etching Ability

Introduction:
1. This metal etching machine is acid photo chemical etching equipment, etchant solution is ferric chloride.
2. This machinecan make nameplates,signs,tags,logos,medals,tags,stencils gobos,metal crafts
and so on.
3. Materials can be Steel, Stainless steel, Copper, Brass, Aluminum,titanium and so on.
4. Machine is double side spraying,we can control separately for up nozzles or bottom nozzles.
5. This machine can also do developer and stripper,only put different chemical in tank.
6. Machine material is German PP plate,can resist high temperature 100 degrees.

Etching Process:
degreasing --- spray photoresist ink on metal ---- drying --- exposing ---- developer ---- etching ---
stripping -- coloring

After sales service:

1.Customized design is available.

2.Master operator training program for free.

3.Reasonable and negotiable price,short lead time.

FAQS:

1.Q:Are you trading company or a factory ?

A: We are manufactory and We have import and export License .

2.Q:Where is your factory ?How Can I visit there?

A: Our factory is located in Beijing, the capital of China,Warmly welcome to visit us.

3.Q:How can I get some samples ?

A: we are honores to offer you samples,please contact us anytime !

4.Q: How does your factory do regarding quality control ?

A: Quality is priority .Golden Eagle people always attach great importance to quality controlling from A to Z.

5.Q:Why us ?

A: 1. 20 years machine manufacture experiences !

2. 4 years good credit supplier on alibaba.

3. satisfaction or we'll refund or rerun-your choice

4. Etching technology can be provided for free to our customer by our well-trained and professional engineers and staffs.

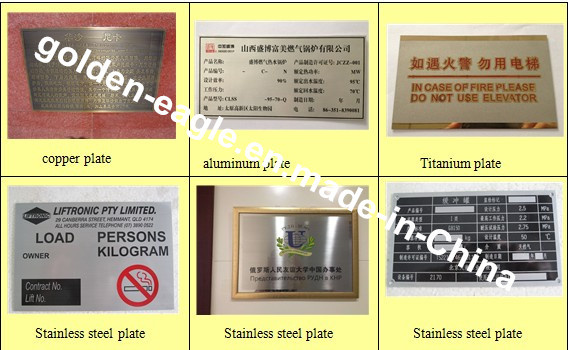

Samples:

Prod Model:	GE-S650
Markets:	South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Power:	5.5kw/220V/50Hz
Working Width:	650mm
Etching Area:	650*1000mm
Etched Type:	Double Spraying
Working Temperature:	Working Temperature
Heat System:	Heat System
Cool System:	PE Cooling Pipe,25 Meter
Vertical Pump:	2.2kw/380V/50Hz
Spray Pipe:	8PCS for up, 8PCS for Down
Package:	Wooden Package
Type:	Photochemical Etching Machine
Object:	Metal

BeijingGolden Eagle Electronic Equipment Co., Ltd. Was built in 2003, and local Beijing the capital of China. It own a metal crafts company, a metal wet etching processing factory and this photochemical etching machines factory now. Be working in photo chemical etching for more than ten years, we advance by special experience and continual reseach works. We can supply whole processing equipments and support with whole processes technique training. Maily used In metal etching, PCB etching, FPC etching, precision parts etching, flexible Dies & hot stamping dies etching, nameplate & signs etching, decoration plate etching and so on. Material can be stainless steel, copper, brass, aluminum, zinc, magnesium and so on. The past ten years, we sold variety of etching machines to USA, UK, Europe, Middle East, Africa, Australia and many other countrys.
