Product Specifications
| Prod Model: |
WNE-1B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard Water Value: |
51±1 S |
| Measuring Flask: |
200±0.2 Ml |
Product Description

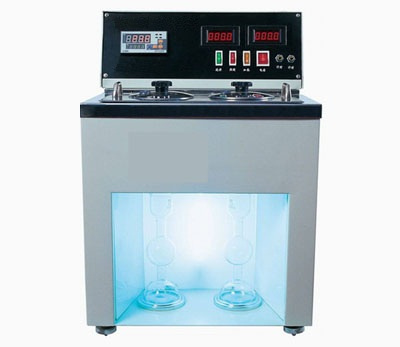

Model: WNE-1B
Application
The instrument is designed and made as per the national standard of People's Republic of China GB/T266 Test Method for Engler Viscosity of Petroleum Products, T0622 Asphalt Engler Viscosity Test (Engler Viscometer Method) in the industry standard of People's Republic of China JTJ052 Specification and Test Method of Bitumen and Bituminous Mixture for Highway Engineering. It is suitable to determine the ratio between the time used by a liquid flowing out of Engler viscometer under a certain temperature and volume, and that of distilled water flowing out of Engler viscometer at 20 degrees Celsius. The ratio is the Engler viscosity of liquids.
Main technical specifications and parameters
1. Power supply: AC 220 V± 10%, 50 Hz
2. Standard water value: 51± 1 s
3. Temperature measurement range: (0~100) degrees Celsius
4. Temperature controlling accuracy: ± 0.1 degrees Celsius
5. Engler viscometer thermometer: In accordance with GB/T514
6. Measuring flask specification: 200± 0.2 ml (asphalt sample is 50± 0.2 ml)
7. Inner container: Stainless steel
8. Time measurement range: The maximum is 999 s
9. Timing mode: LED timer
10. Heating power: 700 W
11. Ambient temperature: ( -10~+40) degrees Celsius
12. Relative humidity: ≤ 85%
13. Total power consumption: ≤ 800 W
