Double Wave Soldering Oven / Leadfree Wave Soldering Oven Tb980c

Double Wave Soldering Oven / Leadfree Wave Soldering Oven Tb980c
Supplier: Beijing Torch Co., Ltd.
Price: Negotiable/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,EXW,CIF
contact supplier

Product Specifications

Prod Model: TB980C
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
PCB Width (Mm): Max. 250mm
Preheating Temperature: (Infrared+ Hot Air)100-180oc
Soldering Tin Capability: Max. 500kg (Sn63pb37); 430kg(Sn100%)
Preheating Control Mode: Pid Mode
Dimension: 4120 *1280 *1630mm
Weight: 1250kg
Width Height Range: 0-12mm Adjustable
Preheating Length: 1600 Mm
Preheating Zone No: 3
Transmission Speed: 1800mm/Min
Type: ARC Welders
Current: Alternating Current
Model: Tb980c

Product Description

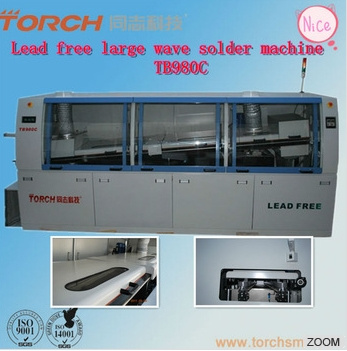

Leadfree Double Wave Soldering Oven  TB980C


Claws design of synchronal chain
No noise, convey smoothly.
Control system: Industrial computer, system runs reliable and stable.
Far IR preheating system: Prevent the temperature going down.
Latest pressure-increasing type flux coating system: Spray evenly to reduce the usage of the flux.
Conveying system: Imported motor driving, and equip with overload protection device.
The width of the substrate can be adjusted automatically by computer.


Specfication:
technology parameterTB980C
Preheating Section (Infrared+ hot air)4Kw * 2
Preheating temperatureRoom-temperature ~180
Preheating control modePID Mode
Power of tin stove heating tube2KW*8
Jointing control modePID Mode
Wave crest motorimported high temperature resistant motor
Soldering tin capabilityMax.500kg (Sn63Pb37); 430Kg(Sn100%)
PCB widthMax.250mm
PCB Transmission speed0.5~1.8m/min
Transmission motor power90W
Gross power36Kw
Working power18Kw
Power supplyThree-phase,380V,50Hz
Air supplyabove 5Mpa
Gas pressure of spray0.25Mpa~0.4Mpa
Spray gun driving typeneed a spraying machine outside
Cooling systemwind cooling system.
Dimension (L*W*H)4120 *1280 *1630MM
Weightabout 1050kg

Beijing Torch Co., Ltd. Found in 2001, has strong force on R&D and manufacture of SMT and PCB equipments and Semiconductor production line.

Torch has unique understanding of SMT technology for long-term providing professional services to domestic and foreign electronic company. It always lead SMT equipment technologies and trends in domestic market.

To meet the require of electronic environment protection in international market, we produce a series of lead free Reflow Oven, Wave Soldering from mini-type to large size type.

At present, we cooperates with Germany Termway Co. Ltd, produce a series of automatic high-speed mounter. Our product features as good quality, competitive price, easy to operate and energy saving. They enjoy great welcome in domestic and oversea market.

A lot of our products got the patents and our company passed ISO9001 and IQNET, CE certificates and we are SGS Audited Supplier.

Since found, we gained a good reputation and remarkable achievement from our customers, like Spaceflight, Aviation, Arms Force, Information industry, College, Scientific Research and so on. You can see our products from the producing line of fire alarm, instruments, computer display, telephone appliance. At present, our products are already sold in many countries such as USA, Brails, India, Japan, Australia, Mexico and Southeast Asian area. We will continue to make great efforts to satisfy the customers' requirement.
